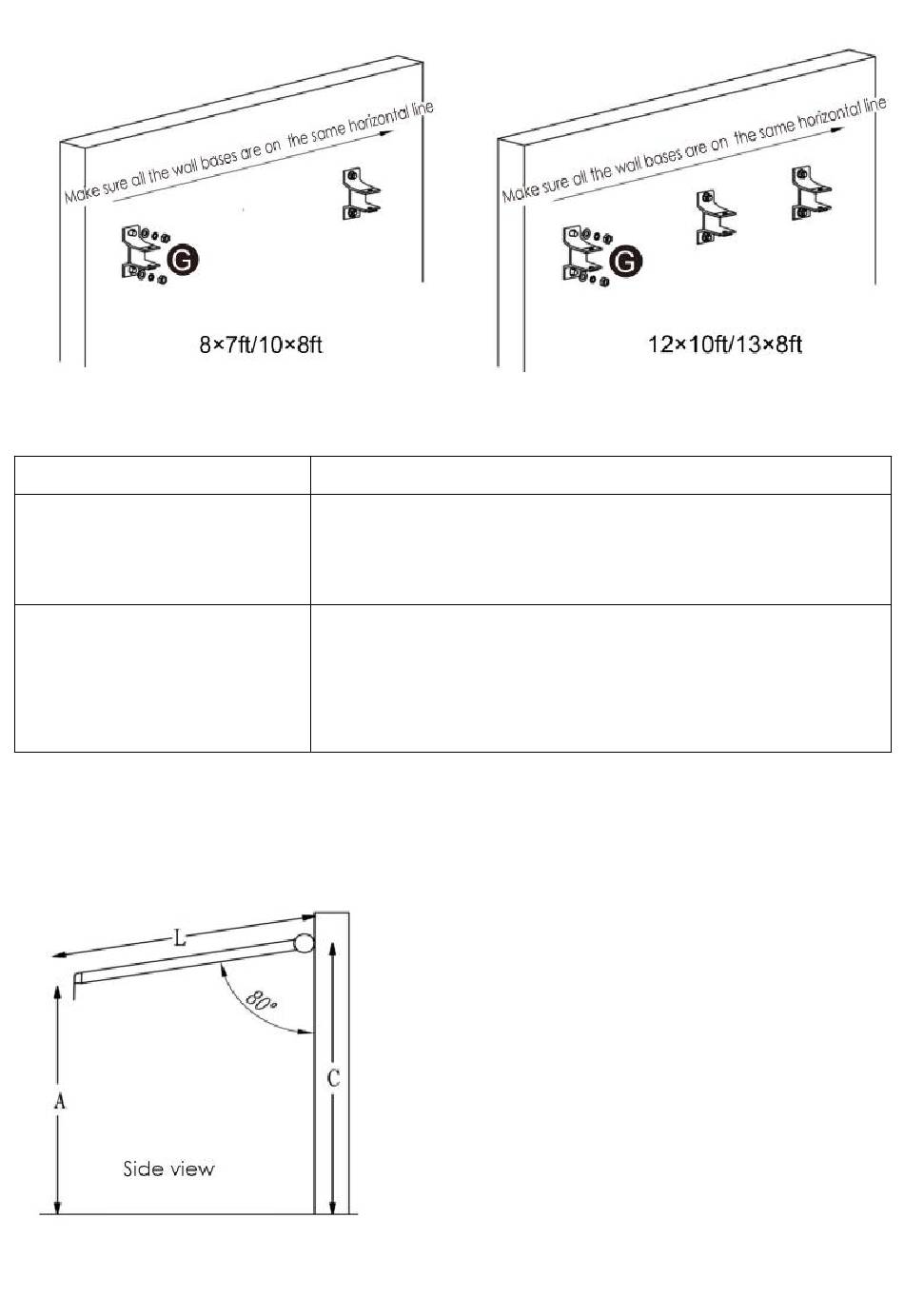

Installation distance between wall brackets
Awning < 3m
Awning 3.5m ~ 4.5m
Awning > 5m
4. As shown in the figure, we recommend making the awning surface to form an angle of
about 80 degrees with the wall when it is open.
Only 2 wall brackets for each end of the torsion bars.
2 wall brackets at each end of the torsion bar, a middle
bracket in between the distance of 2 arm shoulders (arm
brackets refer to steps of assembly 6)
2 wall brackets at each end of the torsion bar, 2 middle
brackets divide into equal lengths in between the distance
of 2 arm shoulders at each end of the torsion bars.(Steps of
assembly 6)
A) The height of the front bar you desire
L) The length of the arm stretches out
C) The height of wall brackets
You can follow this formula: C= A + 0.17*L
