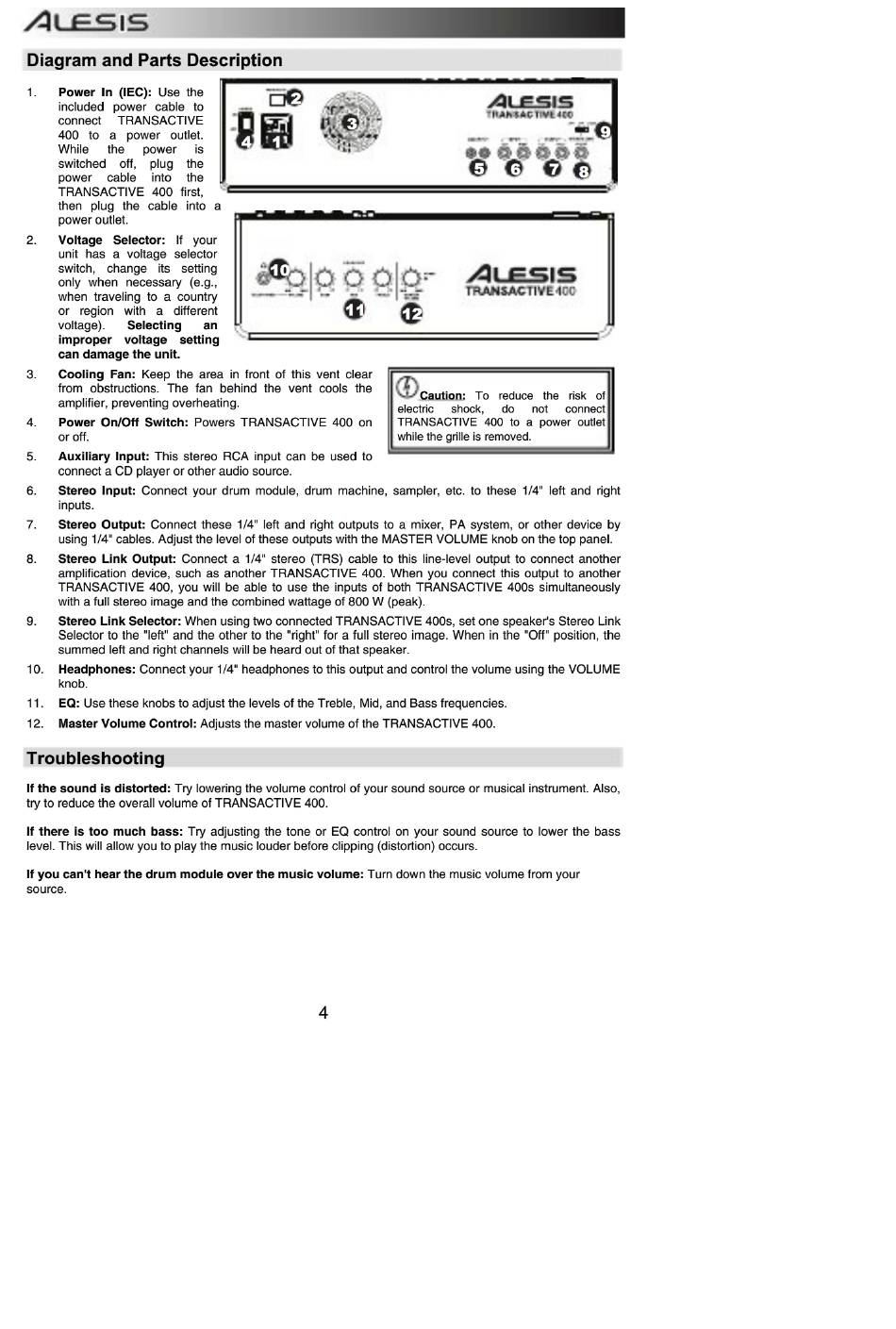

Diagram
and Parts Description
1.
Power
In (IEC):
Use the
included
power
cable
to
connect
TRANSACTIVE
400
to
a
power
outlet.
While
the
power
is
switched
off,
plug
the
power
cable
into
the
TRANSACTIVE
400
first,
then
plug
the cable
into
power outlet.
2.
Voltage
Selector:
If your
unit has a voltage
selector
switch,
change
its setting
only when
necessary
(e.g.,
when traveling
to a country
or
region
with
a
different
voltage).
Selecting
improper
voltage
setting
can damage the unit.
3.
Cooling
Fan: Keep the area in front of this vent clear
from
obstructions.
The
amplifier, preventing overheating.
4.
Power
On/Off
Switch:
Powers
or off.
5.
Auxiliary
Input: This stereo RCA input can be used to
connect a CD player or other audio source.
6.
Stereo Input: Connect your drum module, drum machine, sampler, etc. to these 1/4" left and right
inputs.
7.
Stereo Output: Connect these 1/4" left and right outputs to a mixer, PA system, or other device by
using 1/4" cables. Adjust the level of these outputs with the MASTER VOLUME knob on the top panel.
8.
Stereo Link Output: Connect a 1/4" stereo (TRS) cable to this line-level output to connect another
amplification device, such as another TRANSACTIVE 400. When you connect this output to another
TRANSACTIVE 400, you will be able to use the inputs of both TRANSACTIVE 400s simultaneously
with a full stereo image and the combined wattage of 800 W (peak).
Stereo Link Selector: When using two connected TRANSACTIVE 400s, set one speaker's Stereo Link
9.
Selector to the "left" and the other to the "right" for a full stereo image. When in the "Off position, the
summed left and right channels will be heard out of that speaker.
10.
Headphones: Connect your 1/4" headphones to this output and control the volume using the VOLUME
knob.
11.
EQ: Use these knobs to adjust the levels of the Treble, Mid, and Bass frequencies.
12.
Master Volume
Control:
Troubleshooting
If the sound
is distorted:
Try lowering the volume control of your sound source or musical instrument. Also,
try to reduce the overall volume of TRANSACTIVE
If there is too much bass: Try adjusting the tone or EQ control on your sound source to lower the bass
level. This will allow you to play the music louder before clipping (distortion) occurs.
If you can't hear the drum module over the music volume: Turn down the music volume from your
source.
a
an
fan
behind
the
vent
cools
the
TRANSACTIVE
400
on
Adjusts the master volume of the TRANSACTIVE
400.
4
GOG
ALESIS
TRANSACTIVE
400
Caution:
To
reduce
the
electric
shock,
do
not
connect
TRANSACTIVE
400 to a power outlet
while the grille is removed.
400.
6
-Y
riSk
