G Quick Guide

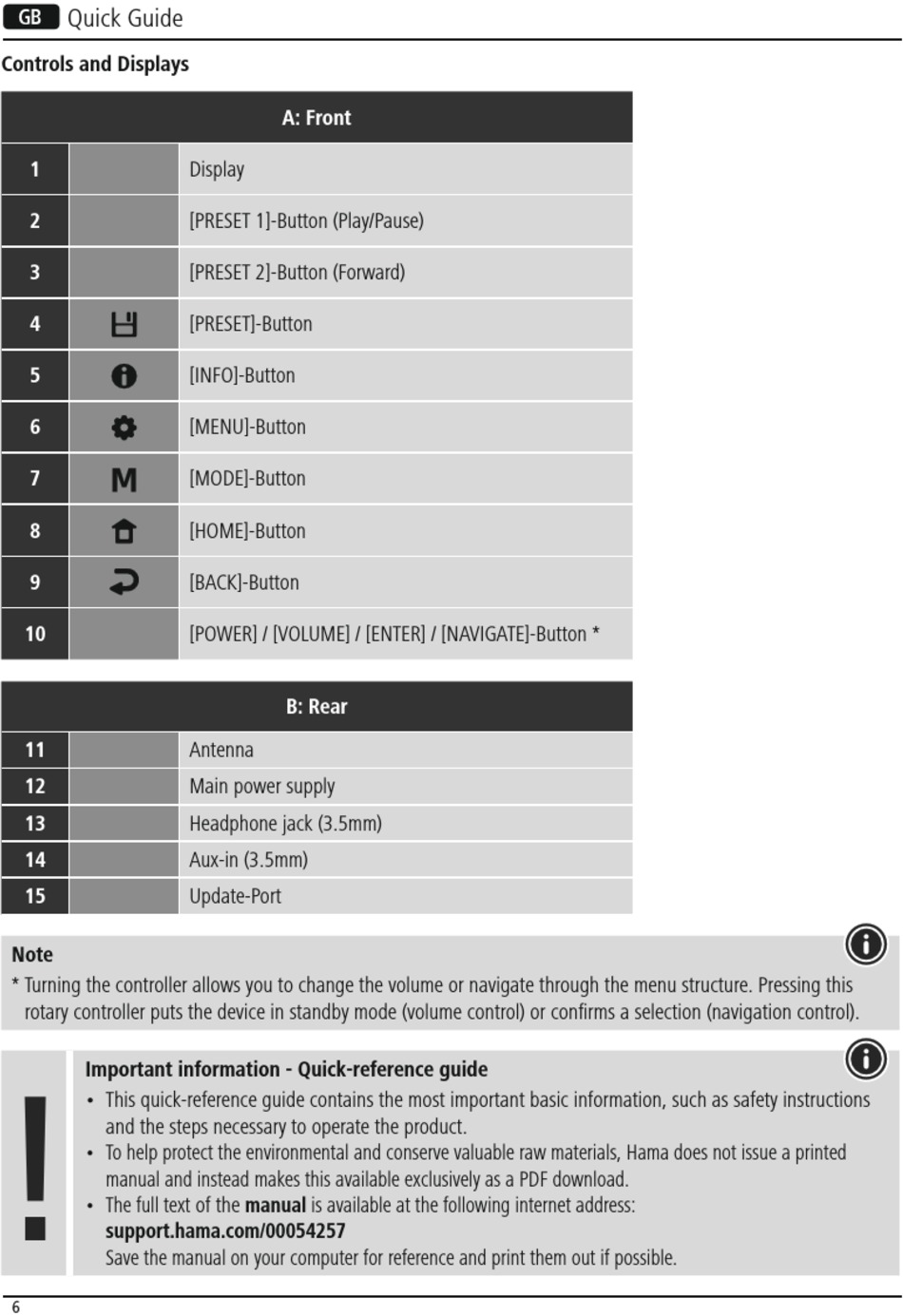

Controls and Displays

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Note
* Turning the controller allows you to change the volume or navigate through the menu structure. Pressing this
rotary controller puts the device in standby mode (volume control) or confirms a selection (navigation control).
!
Important information - Quick-reference guide
• This quick-reference guide contains the most important basic information, such as safety instructions
and the steps necessary to operate the product.
• To help protect the environmental and conserve valuable raw materials, Hama does not issue a printed
manual and instead makes this available exclusively as a PDF download.
• The full text of the manual is available at the following internet address:
support.hama.com/00054257
Save the manual on your computer for reference and print them out if possible.
6
A: Front
Display
[PRESET 1]-Button (Play/Pause)
[PRESET 2]-Button (Forward)
[PRESET]-Button
[INFO]-Button
[MENU]-Button
[MODE]-Button
[HOME]-Button
[BACK]-Button
[POWER] / [VOLUME] / [ENTER] / [NAVIGATE]-Button *
B: Rear
Antenna
Main power supply
Headphone jack (3.5mm)
Aux-in (3.5mm)
Update-Port
