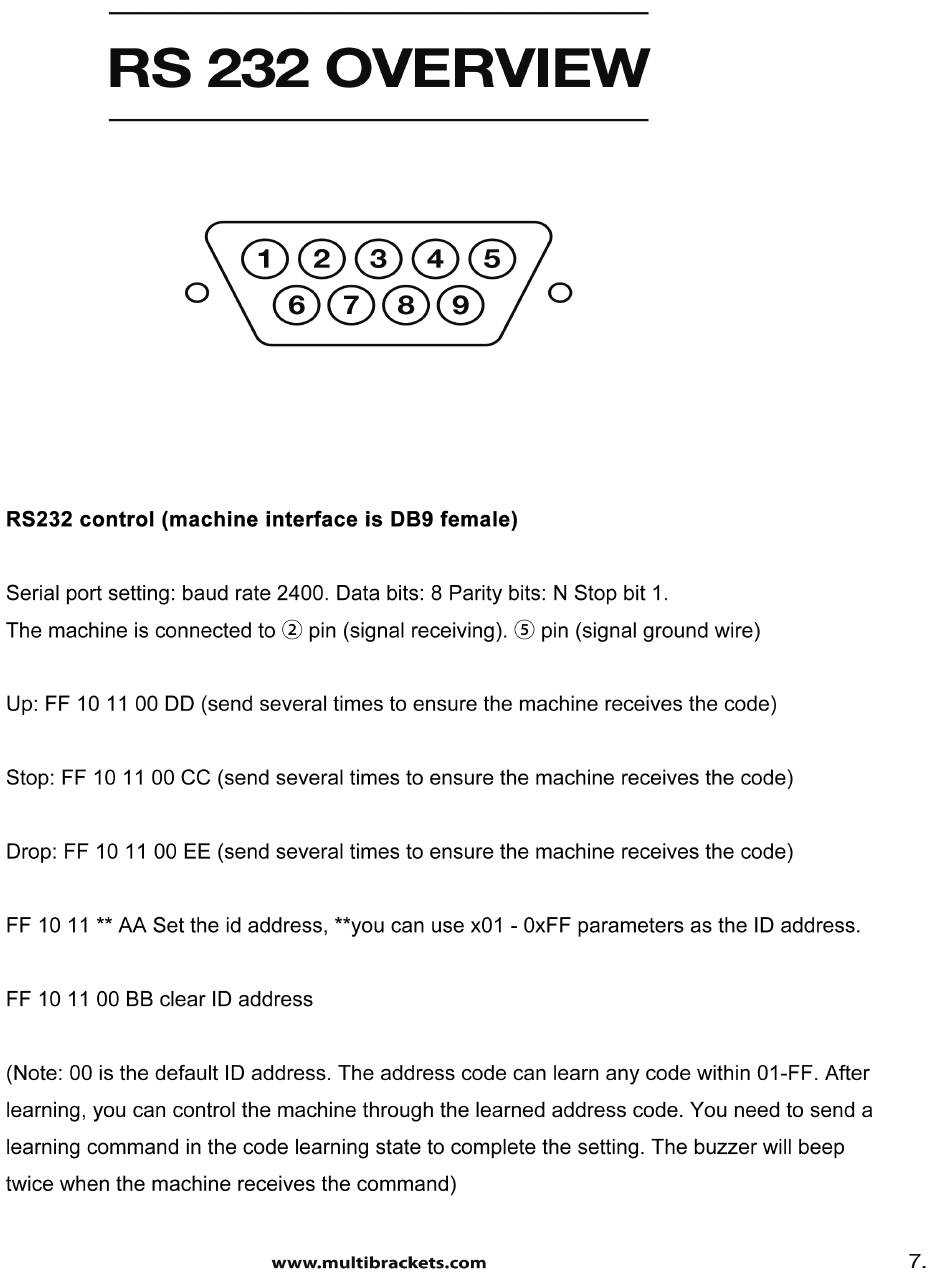

RS232 control
(machine
Serial port setting: baud rate 2400. Data bits: 8 Parity bits: N Stop bit 1.
The machine is connected to @ pin (signal receiving). @ pin (signal ground wire)
Up: FF 10 11 00 DD (send several times to ensure the machine receives the code)
Stop: FF 10 11 00 CC (send several times to ensure the machine receives the code)
Drop: FF 10 11 00 EE (send several times to ensure the machine receives the code)
FF 10 11 ** AA Set the id address, **you can use x01 - OxFF parameters as the ID address.
FF
10 11 OO BB
clear
(Note: 00 is the default ID address. The address code can learn any code within 01 -FF. After
learning, you can control the machine through the learned address code. You need to send a
learning command in the code learning state to complete the setting. The buzzer will beep
twice when the machine receives the command)
232
OVERVIEW
interface
is DB9 female)
ID address
