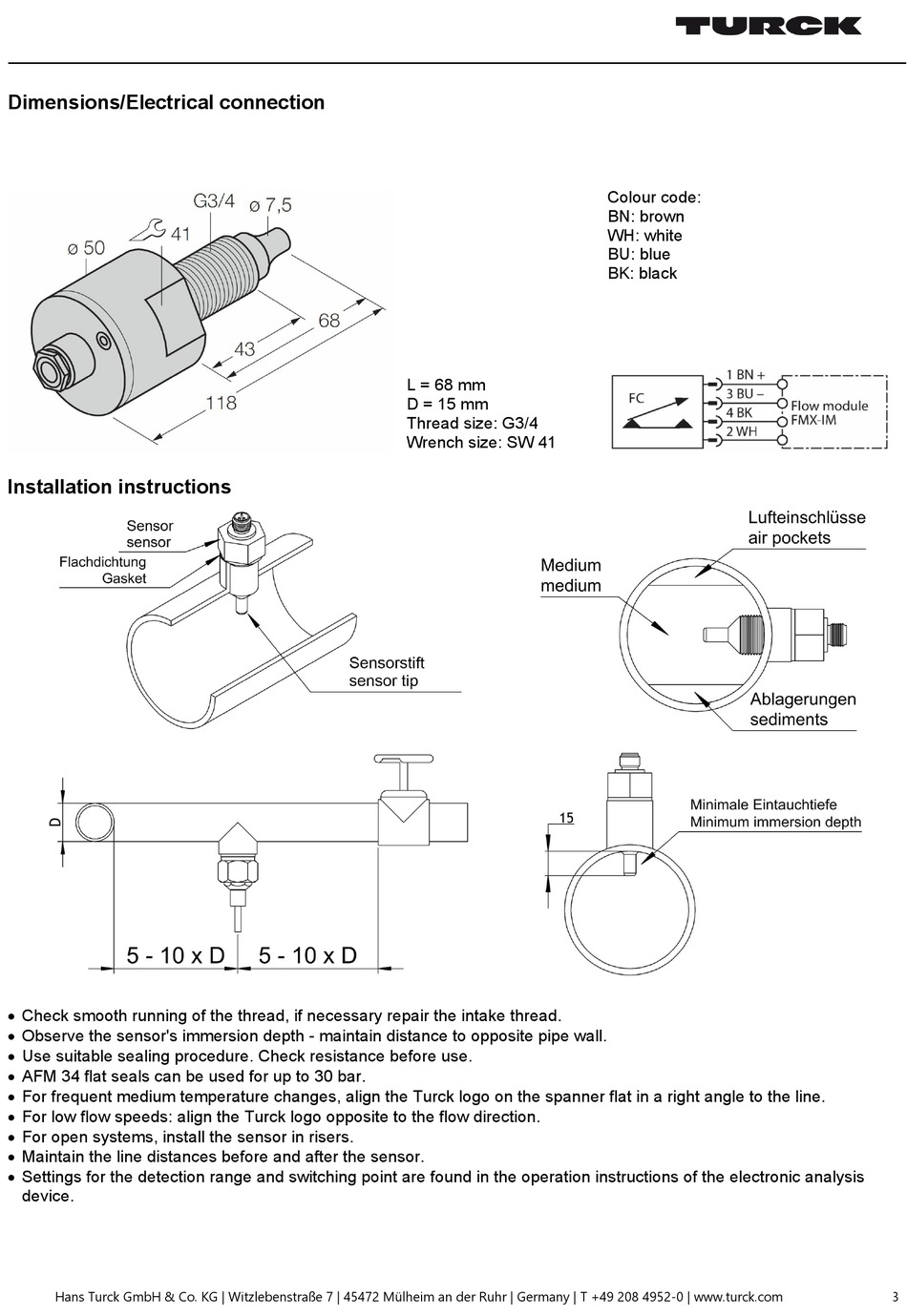

Dimensions/Electrical connection
Installation instructions
Check smooth running of the thread, if necessary repair the intake thread.
Observe the sensor's immersion depth - maintain distance to opposite pipe wall.
Use suitable sealing procedure. Check resistance before use.
AFM 34 flat seals can be used for up to 30 bar.
For frequent medium temperature changes, align the Turck logo on the spanner flat in a right angle to the line.
For low flow speeds: align the Turck logo opposite to the flow direction.
For open systems, install the sensor in risers.
Maintain the line distances before and after the sensor.
Settings for the detection range and switching point are found in the operation instructions of the electronic analysis
device.
Hans Turck GmbH & Co. KG | Witzlebenstraße 7 | 45472 Mülheim an der Ruhr | Germany | T +49 208 4952-0 | www.turck.com
L = 68 mm
D = 15 mm
Thread size: G3/4
Wrench size: SW 41
Colour code:
BN: brown
WH: white
BU: blue
BK: black
