Extension of the Light Strip Set
7 Extension of the Light Strip
Set
7.1 Connecting the components
(Variant 1)
• Unplug the power supply unit from
the socket.

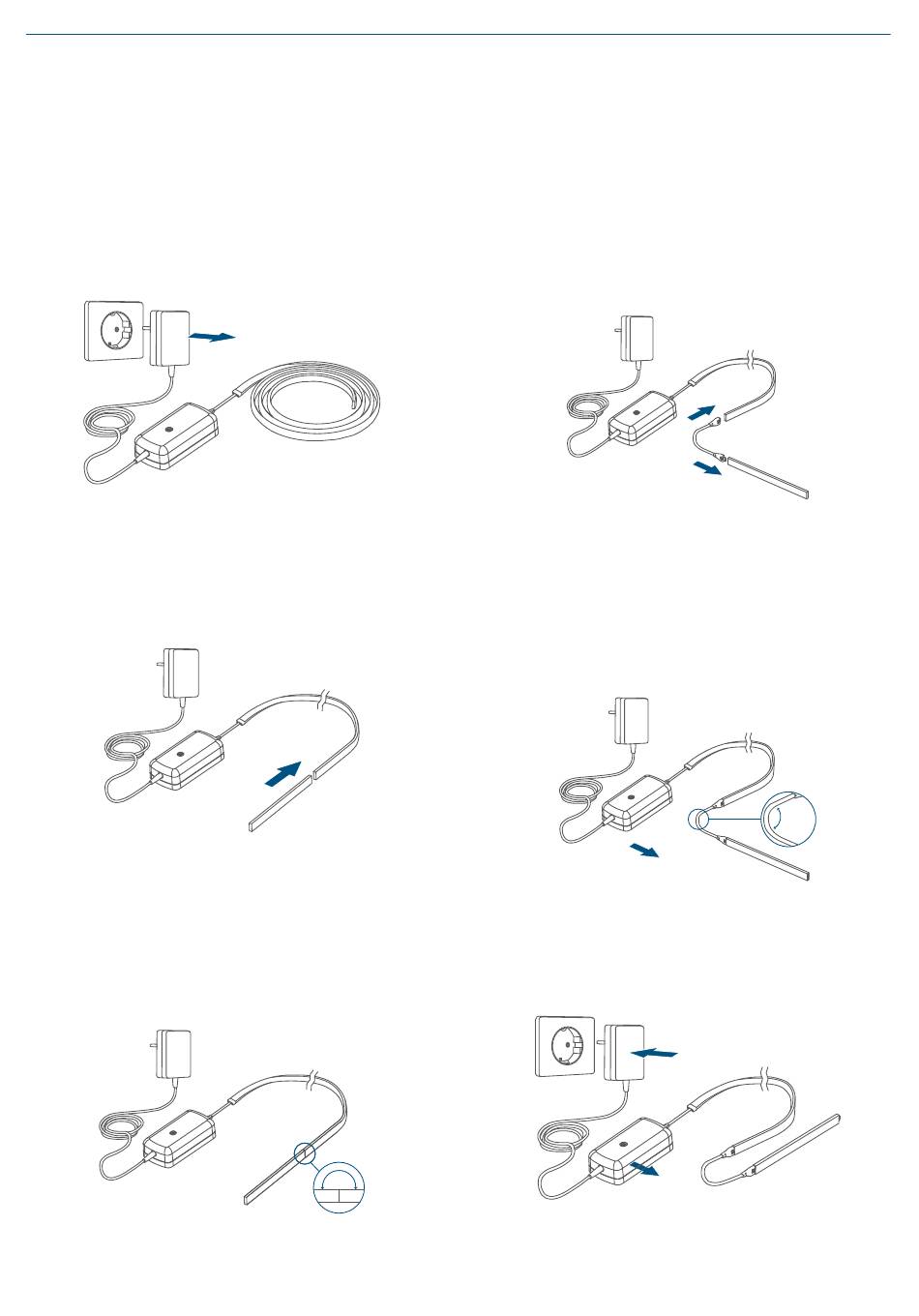

Figure 9
• Connect the Homematic IP Light
Strip 1 m to the Homematic IP
Light Strip 2 m.
Figure 10
Take care not to bend the Light Strip
by more than 180°, otherwise it will be
damaged.
Figure 11
7.2
• Unplug the power supply unit from
• Connect the Homematic IP Light
Figure 12.
Take care not to bend the Light Strip
by more than 180°, otherwise it will be
damaged.
Figure 13
• Plug the power supply unit into a
180°
Figure 14
Connecting the components
(Variant 2)
the socket.
Strip 1 m to the Homematic IP
Light Strip 2 m using the
connecting cable:
socket.
0-180°
