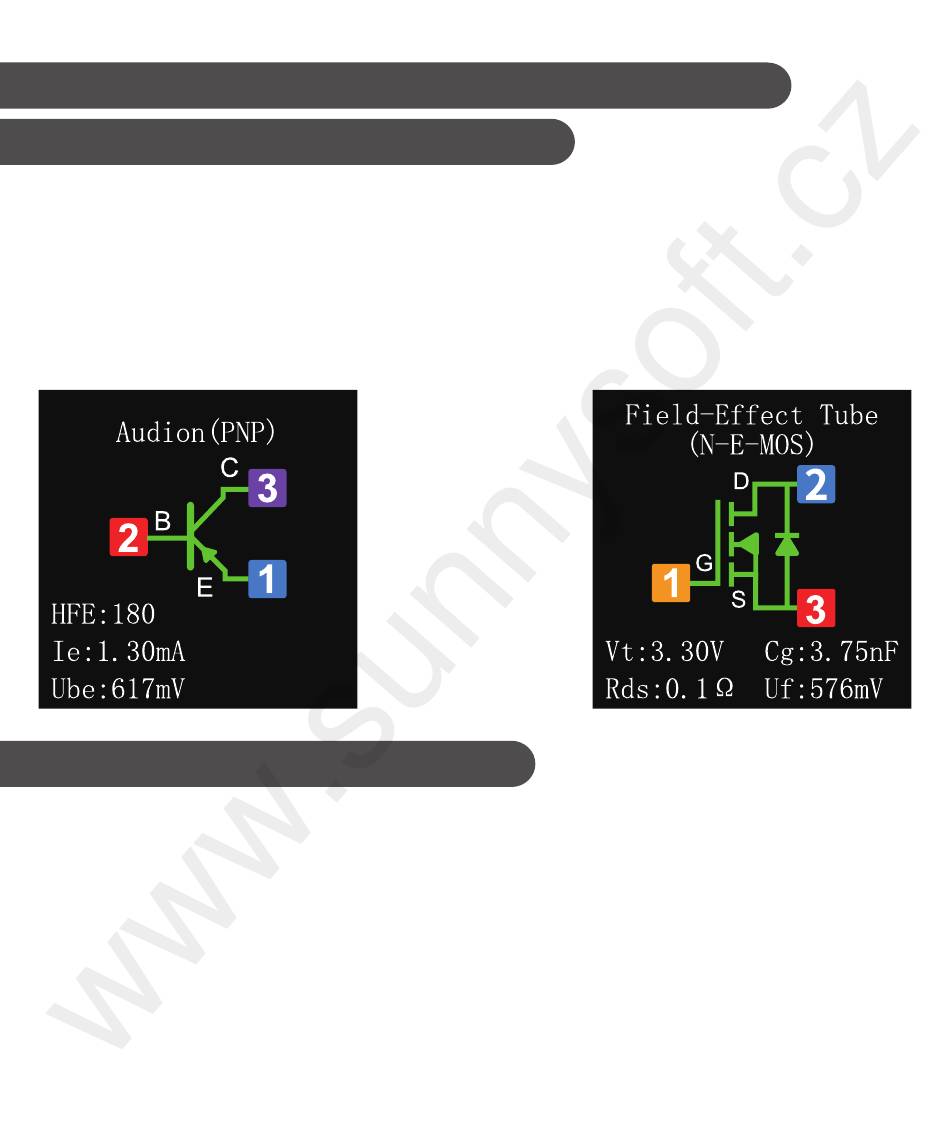

【 4.3 】 Testing of Three-pin Components such as
Transistors, MOSFETs, etc
Insert the three pins into test holes numbered 1, 2, and 3
respectively. Press down and lock the clamping rod, then press
the TEST button to initiate testing. Upon completion of the
measurement, the corresponding test parameters and pin
sequence will be displayed.
【 4.4 】 Testing of Zener Diodes
Press the Zener button to enter Zener diode testing mode.
Insert the anode of the Zener diode into test hole A, and the
cathode into test hole K (there will be a reverse connection
prompt). Press down and lock the clamping rod, then press the
TEST button to initiate testing. The measurement results will be
displayed accordingly.
