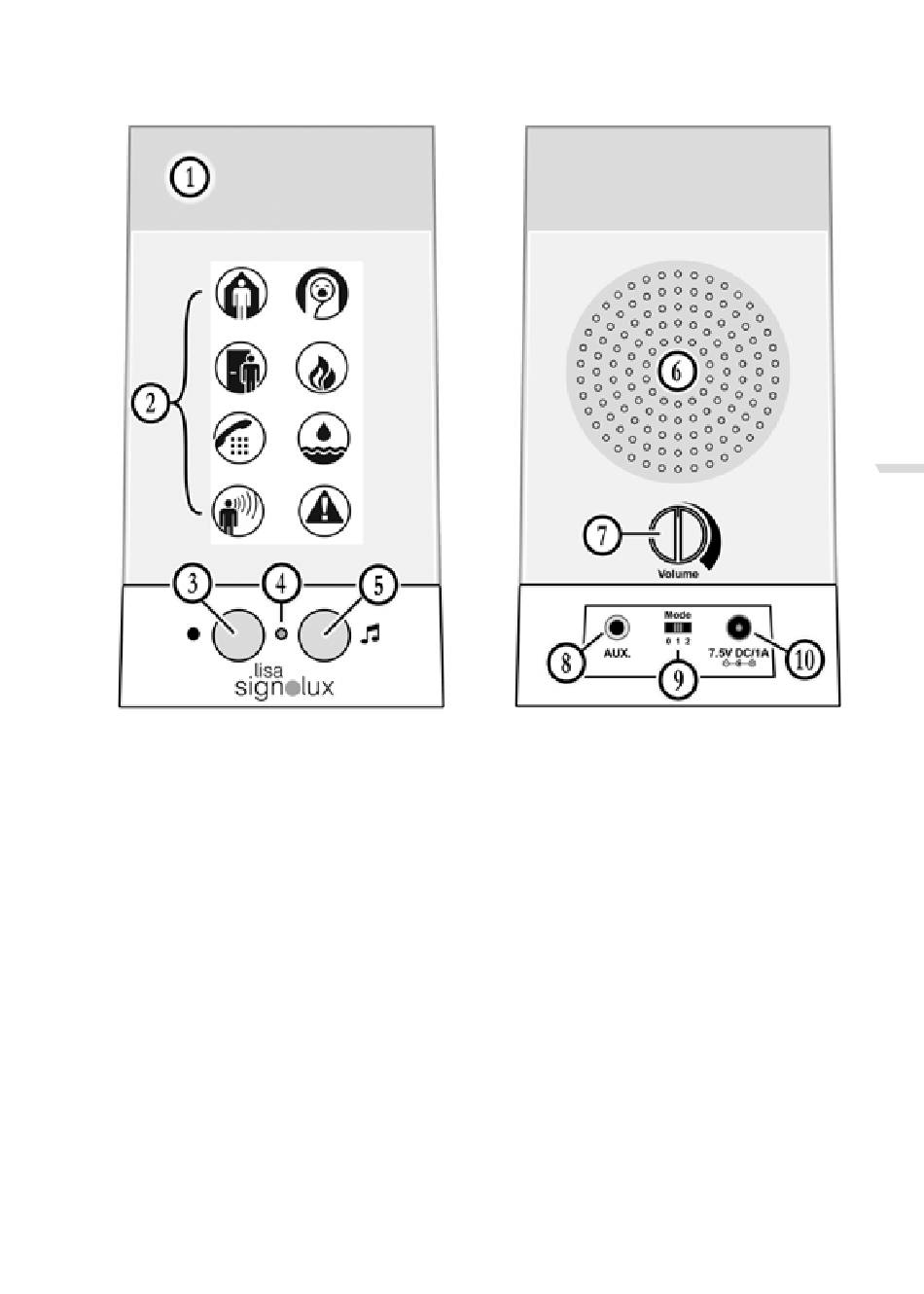

Display and features
1. Flashing zone
4. Status LED
7. Volume control
10. 7.5 V power connector
Function
A Lisa-Signolux alerting system consists of at least one transmitter (e.g. doorbell pushbutton)
and a receiver.
If e.g. the doorbell pushbutton is pressed, a radio signal is transmitted to the receiver. This,
in turn, displays the received signal audibly and visually with sounds and flashing lights.
Setting the alerting mode
Using the mode selector switch (9) you can select the alerting mode.
– switch to position 0:
– switch to position 1:
– switch to position 2:
2. Event icons
5. Melody button
8. AUX output for modules
alerting tones, but no flash
alerting tones and flash
no alerting tones, flash only
3. Function button
6. Speaker
9. Mode selector switch
