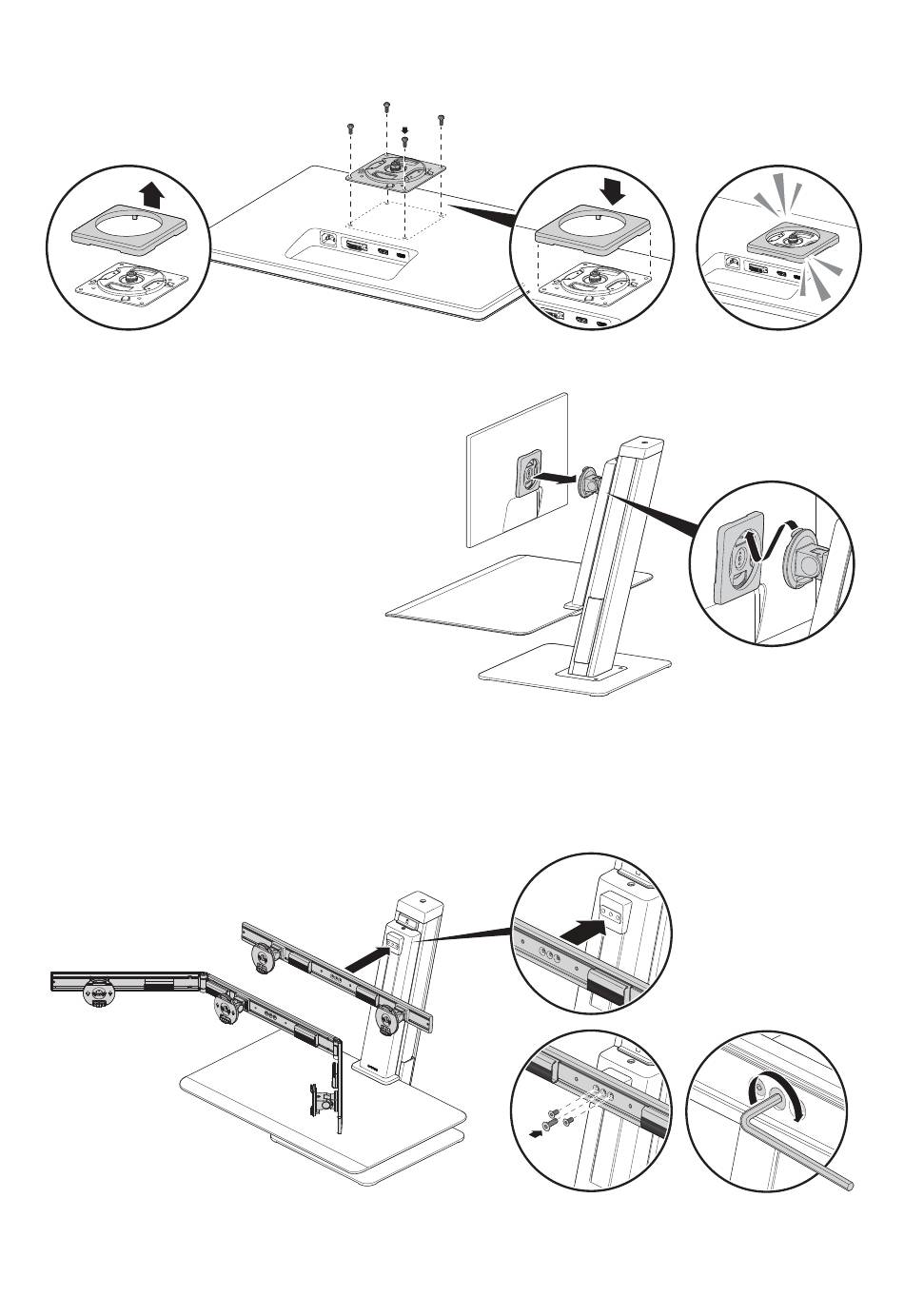

Attach VESA Bracket to Monitor
1
Attach the VESA plate onto the monitor(s)
with the M4x18mm screws provided.
Attach Monitor(s)
(FOR SINGLE MONITOR)
1
Attach the monitor to the unit by
hooking the VESA plate tab on the
top and engaging the lock on the
bottom.
(FOR DUAL MONITOR / TRIPLE MONITOR)
1
Attach the crossbar to the unit with the M6x20mm screws provided.
2
Attach monitors to the crossbar. Refer to the crossbar installation manual.
NOTE: Total weight of the monitors and items on work surface should not exceed 30lbs.
