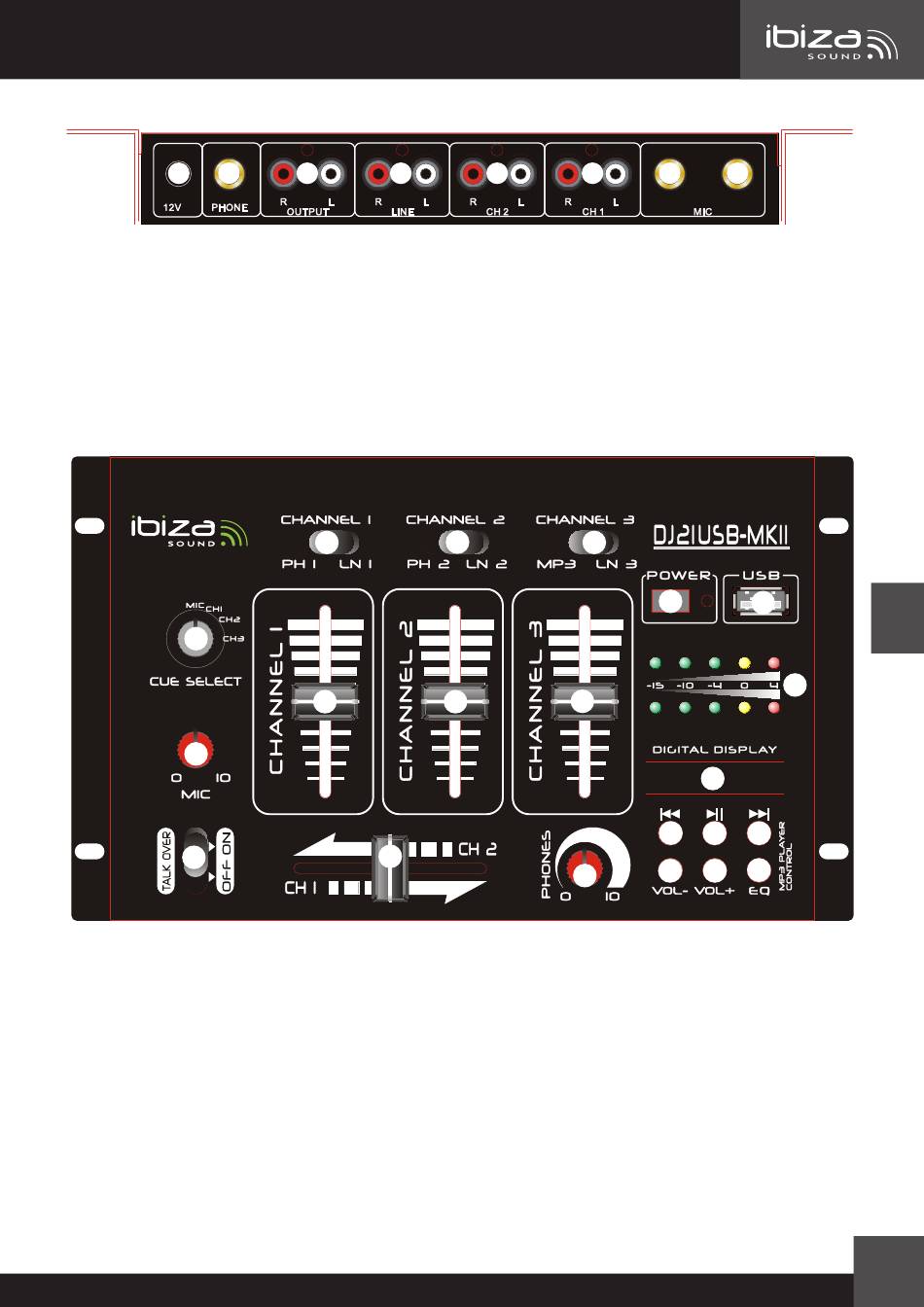

CONNECTIONS

��

• Before using this unit, make sure that the AC Adaptor (21) is correct voltage.

• The unit is supplied with AMP output jacks. The AMP (20) jacks are unbalanced and used to connect to your

amplifier.

• The MIC L (15) and MIC R (16) input accepts a 1/4" connector.

• On the rear panel are two stereo PHONO/LINE (17) & (18) inputs and 1 stereo LINE (19) input. The PHONO/

LINE (4) enables you to set the (17) input to phono or Line. The PHONO/LINE (6) enables you to set the (18)

input to phono or Line. The USB/LINE (8) enables you to set the input to USB or Line (19). Headphones can be

plugged into the rear panel mounted HEADPHONE (14) jack.

OPERATION

1. POWER ON: Once you have made all the equipment connections to your mixer, press the POWER (12). The

power will turn on and the POWER LED (22) will glow RED.

2. CHANNEL 1: SWITCH (4) allows you to select the PHONO 1/LINE 1 (17) jack to input phono or line level. The

CHANNEL SLIDE (5) controls the input level of this channel.

3. CHANNEL 2: SWITCH (6) allows you to select the PHONO 2/LINE 2 (18) jack to input phono or line level. The

CHANNEL SLIDE (7) controls the input level of this channel.

4. CHANNEL 3: SWITCH (8) allows you to select the MP3 OR LINE 3 (19) jack to input mp3 or line level. The

CHANNEL SLIDE (9) controls the input level of this channel.

5. CROSSFADER: The CROSSFADER (10) allows you to the Mixing CH1/CH2 source into another.

6. TALKOVER (3): The purpose of the talkover section is to allow the program playing to be muted so that the

mic can be heard above the music. When you press the SWITCH, the talkover will be on and the volume of

all sources except the Mic inputs are lowered by 12 dB. The Micro (2) allows you to control the level of MIC1/

MIC2.

7. Connect your headphones to the headphones socket and select the desired channel (channel 1-3 or MIC) for

monitoring with the Cue switch (1). With this knob PHONE (11), you can adjust the headphones volume

8. DISPLAY: The DISPLAY (13) indicates either the MASTER output left and right levels.

Code: 15-2046B
