VONYX DB6 Pro DJ Booth Large Gebrauchsanleitung Seite 3

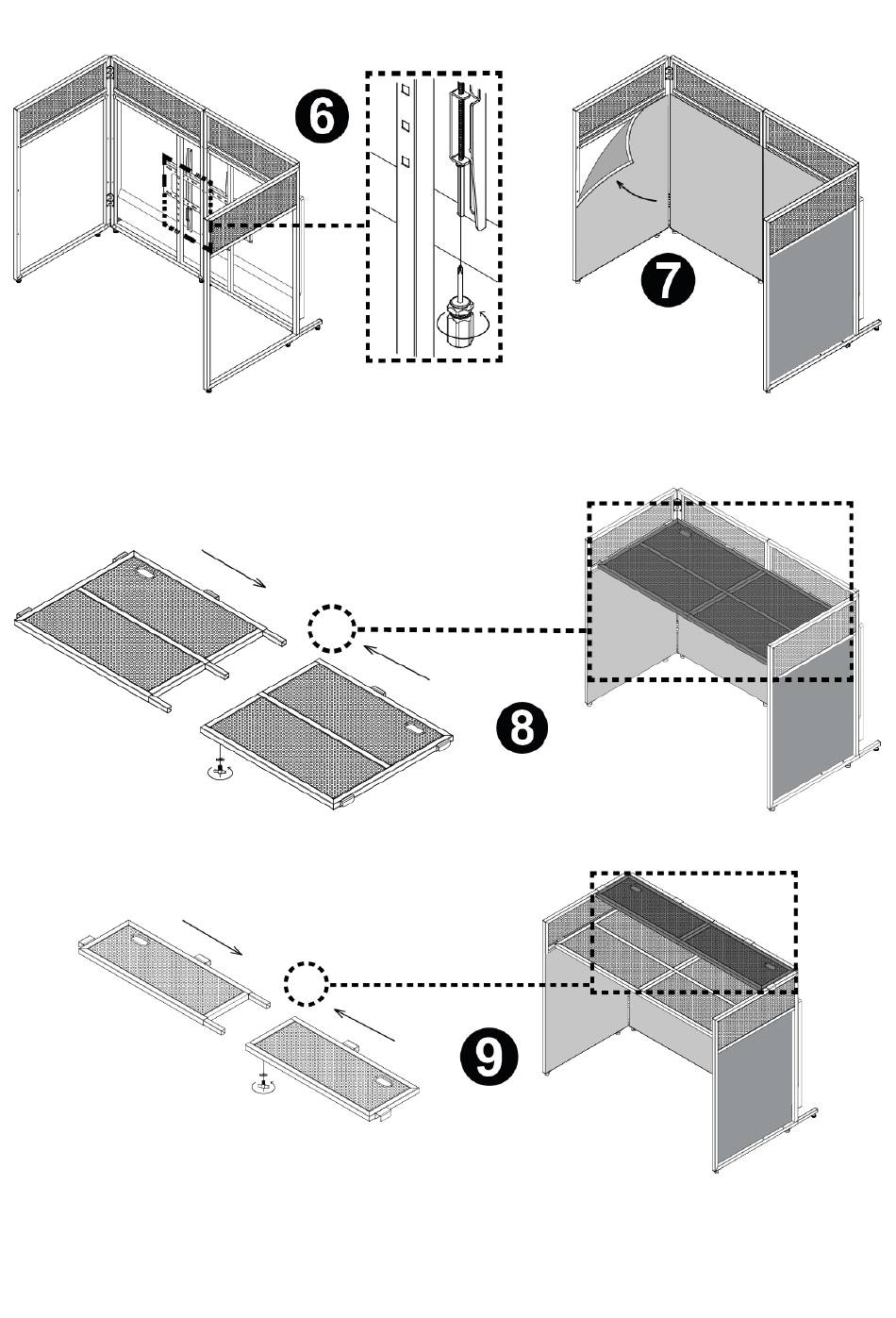

6. Tighten the TV (with mount) securely by screwing the fastening rod tightly.
M5x110 screws
7. Attach the lycra covers (hook and loop system).
8. Slide together the 2 worktop desk parts and fix with a butterfly type screw. Hook the worktop into the base frame.
M8*20 butterfly screw
Ø24-8 washer
9. Slide together the 2 top desk parts and fix with a butterfly type screw. Hook the top desk onto the base frame.
M8*20 butterfly screw
Ø24-8 washer
3
x2
x3
x3
x2
x2
