STACYC 16EDRIVE ELITE Bedienungsanleitung Seite 7

21
18
19

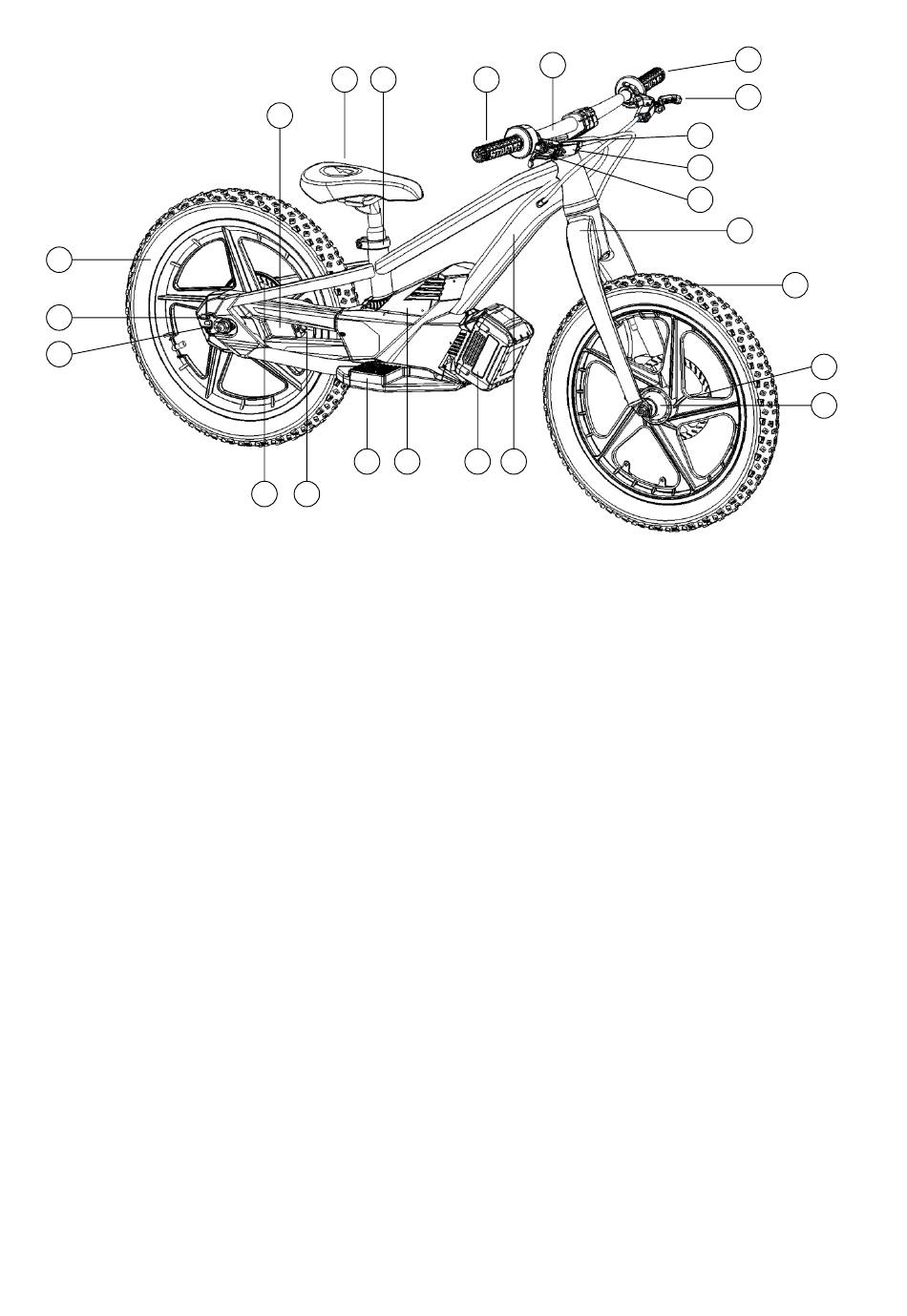

1. Handlebar: Aluminum bicycle handlebar
2. Handlebar Grip: Left side handlebar grip
3. Rear Brake Lever: Adjustable rear brake lever
4. Throttle: Twist type throttle with Battery Level indicator lights
5. Front fork: Aluminum Rigid or Suspension fork depending on model
6. Front Brake Lever: Adjustable front brake lever
7. Front wheel: Composite front wheel assembly with pneumatic tire and
inner tube
8. Foot rest: Plastic injection molded, atraumatic designed footrest
9. Front axle nuts: Front axle nut and washer to fasten front wheel to forks
10. Headset: Front bicycle style headset steering system
11. Side panels: Plastic injection molded side panels to hold and protect
electronic motor and controls
12. Chain Guard: Plastic injection molded chain guard
13. Chain: Bicycle chain
14. Seat: Bicycle seat/saddle
15. Seat clamp: Bicycle seat clamp to fasten seat position
16. Frame: Heat treated aluminum frame
17. Battery: 36Vnom/40Vmax battery pack
18. Rear Axle Nuts: Rear axle nut and washer to fasten rear wheel to frame
19. Chain Tensioner: Bicycle chain tensioner to set chain tension and wheel
position
20. Rear Disc: Rear bicycle disc brake assembly
21. Rear Wheel: Composite rear wheel with pneumatic tire and inner tube
14 15
20
8 11
13 12
1
4
17 16
2
3
26
10
6
5
7
27
9
P a g e | 7
