8BITDO Pro 2 Bedienungsanleitung

8BitD0

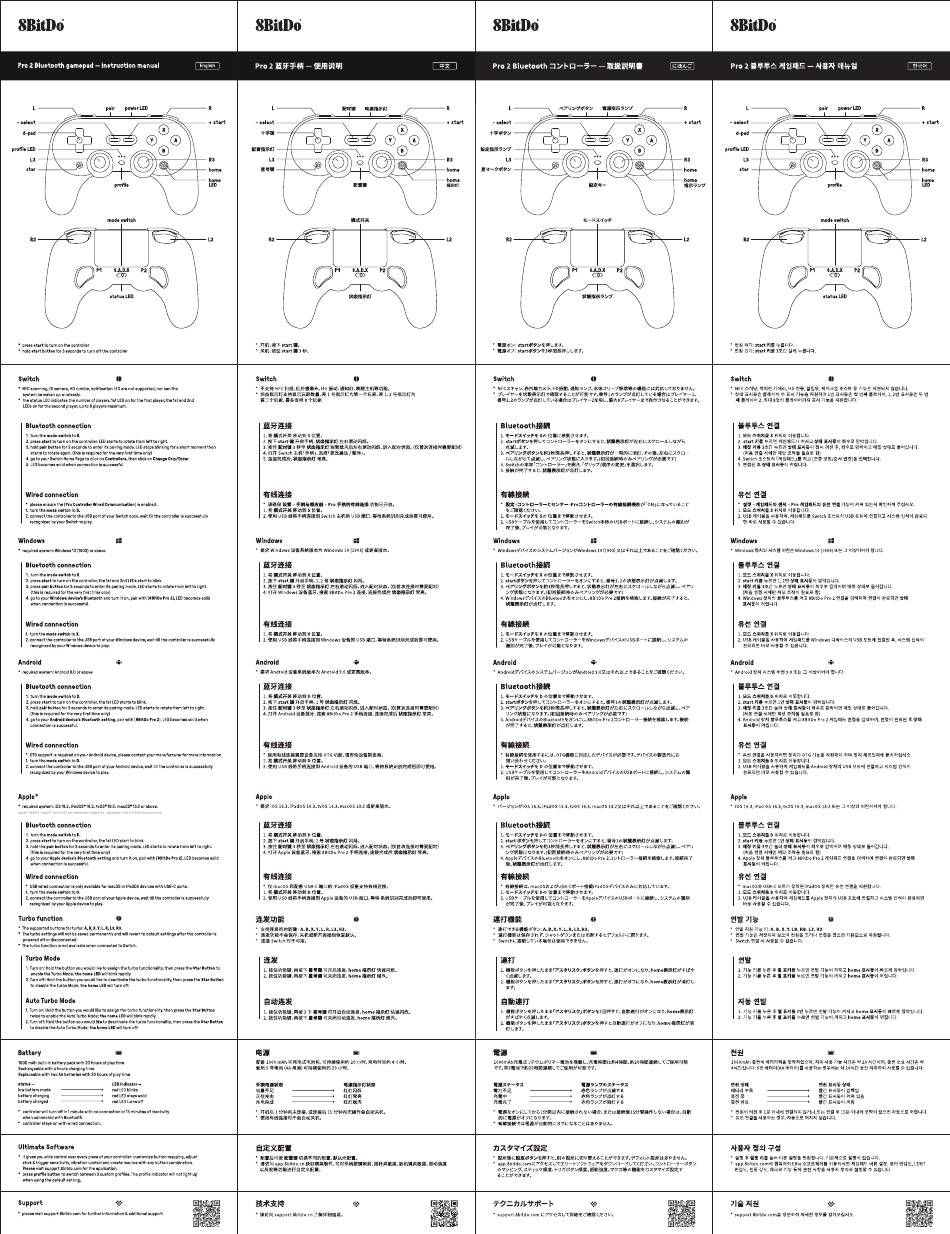

Pro 2 Bluetooth gamepad — instruction manual
pair power LED
- select
d-pad
profile LED
star
profile
mode switch
R2
P1 S.A.D.X
status LED
• press start to turn on the controller
• hold start button for 3 seconds to turn off the controller
Switch
• NFCscanning, IR camera, HDrumble, notification LEDare not supported, nor can the
system be waken up wirelessly.
the status LEDindicates the number of players, 1st LED on for the first player, the 1st and 2nd
LEDson for the second player, up to 8 players maximum.
Bluetooth connection
1. turn the mode switch to S.
2. press start to turn on the controller. LED starts to rotate from left to right.
3. hold pair button for 3 seconds to enter its pairing mode. LEDstops blinking for a short moment then
starts to rotate again. (this is required for the very first time only)
4. go to your Switch Home page to click on Controllers, then click on Change Grip/Order
5. LED becomes solid when connection is successful.
Wired connection
* please ensure the (Pro Controller Wired Communication] is enabled.
1. turn the mode switch to S.
2. connect the controller to the USB port of your Switch dock, wait till the controller is successfully
recognized by your Switch to play.
Windows
• required system: Windows 10 (1903) or above.
Bluetooth connection
1. turn the mode switch to X.
2. press start to turn on the controller, the 1st and 2nd LEDsstart to blink.
3. press pair button for 3 seconds to enter its pairing mode. LEDstarts to rotate from left to right.
(this is required for the very first time only)
4. go to your Windows device's Bluetooth and turn it on, pair with [8BitDo Pro 2], LED becomes solid
when connection is successful.
Wired connection
1. turn the mode switch to X.
2. connect the controller to the USB port of your Windows device, wait till the controller is successfully
recognized by your Windows device to play.
Android
• requiredsystem:Android9.0 orabove
Bluetooth connection
1. turn the mode switch to D.
2. press start to turn on the controller, the 1st LEDstarts to blink.
3. hold pair button for 3 seconds to enter its pairing mode. LEDstarts to rotate from left to right.
(this is required for the very first time only)
4. go to your Android device's Bluetooth setting, pair with [8BitDo Pro 2], LEDbecomes solid when
connection is successful.
Wired connection
• OTG support is required on your Android device, please contact your manufacturerfor more information.
1. turn the mode switch to D.
2. connect the controller to the USB port of your Android device, wait till the controller is successfully
recognized by your Windows device to play.
AppleO
• requiredsystem: iOS 16.3,iPadOS'16.3stvOS' macOS'13.2or above.
Bluetooth connection
1. turn the mode switch to D.
2. press start to turn on the controller, the 1st LEDstartto blink.
3. hold the pair button for 3 seconds to enter its pairing mode. LEDstarts to rotate from left to right.
(this is required for the very first time only)
4. go to your Apple device's Bluetooth setting and turn it on, pair with [8BitDo Pro 2], LEDbecomes solid
when connection is successful.
Wired connection
• USBwired connection is only available for macOS or iPadOSdevices with USB-C ports.
1. turn the mode switch to D.
2. connect the controller to the USBport of your Apple device, wait till the controller is successfully
recognized by your Apple device to play.
Turbo function
• The supported buttons forturbo: A, B, X, Y, R, L3, RS.
• The turbo settings will not be saved permanently and will revertto default settings after the controller is
powered off or disconnected.
• The turbo function is not available when connected to Switch.
Turbo Mode
1. Turn on: Hold the button you would like to assign the turbo functionality, then press the Star Button to
enable the Turbo Mode; the home LED will blink rapidly.
2. Turn off: Hold the button you would like to deactivate the turbo functionality, then press the Star Button
to disable the Turbo Mode; the home LED will turn off.
Auto Turbo Mode
1. Turn on: Hold the button you would like to assign the turbo functionality, then press the Star Button
twice to enable the Auto Turbo Mode; the home LED will blink rapidly.
2. Turn off: Hold the button you would like to deactivate the turbo functionality, then press the Star Button
to disable the Auto Turbo Mode; the home LEDwill turn off.
Battery
1000 mAh built-in battery pack with 20 hours of play time
Rechargeable with 4 hours charging time
Replaceable with two AA batteries with 20 hours of play time
status — LED indicator —
low battery mode red LED blinks
battery charging red LEDstays solid
battery charged red LED turns off
• controller will turn offin 1 minute with no connection Or15 minutes Of inactivity
when connected with Bluetooth.
• controller stays on with wired connection.
Ultimate Software
• it givesyou elite control overeverypiece of your controller: customizebutton mapping,adjust
stick trigger sensitivity, vibration control and create macros with any button combination.
Please visit support.8bitdo.com for the application.
press profile button to switch between 3 custom profiles. The profile indicator will not light up
when using the default setting.
Support
• please visit support.8bitdo.com for further information additional support
