X-LINE XT/XE + XW
Ø 3 mm
Ø 6 mm
Stein
Pietra
Stone
Pierre
Piedra
Steen
Montagemasse / Bohrschablone:
BOHRSCHABLONE DIMA DI FORATURA DRILLING TEMPLATE
- Duschtasse: 10 mm von Tassenrand einrücken,
wie auf Bohrschablone angegeben
oben
sopra
top
- Höhenangaben auf Bohrschablone befolgen und Schablone posizionieren
- Achtung es wird immer linkes und rechtes Modell gezeigt
(bei Unklarheiten mit Duschelement überprüfen)
- Fliesenfuge: Glas ist gleich Montagemaß und es entfällt der 10 mm Rücksprung
Ø 6 mm
LX
RX
sopra top oben
sopra top oben
LX
RX
Misure Montaggio /Dima di foratura:
unten sotto bottom
unten sotto bottom
unten
- Piatto doccia: rientrare con il box doccia di 10 millimetri dal bordo esterno come indicato sulla dima
sotto
bottom
Duschtasse - piatto doccia - showertray
- Rispettare le informazioni dell'altezza indicate sulla dima di foratura e posizionare la dima
0371GA00F
- Attenzione, è sempre visualizzato il modello sinistro e destro
(In caso di incertezze controllare con l'indicazione del box doccia R=right L=left)
- Zona piastrellata: il vetro indica la misura montaggio ed elimina i 10 millimetri di
rientranza del box doccia

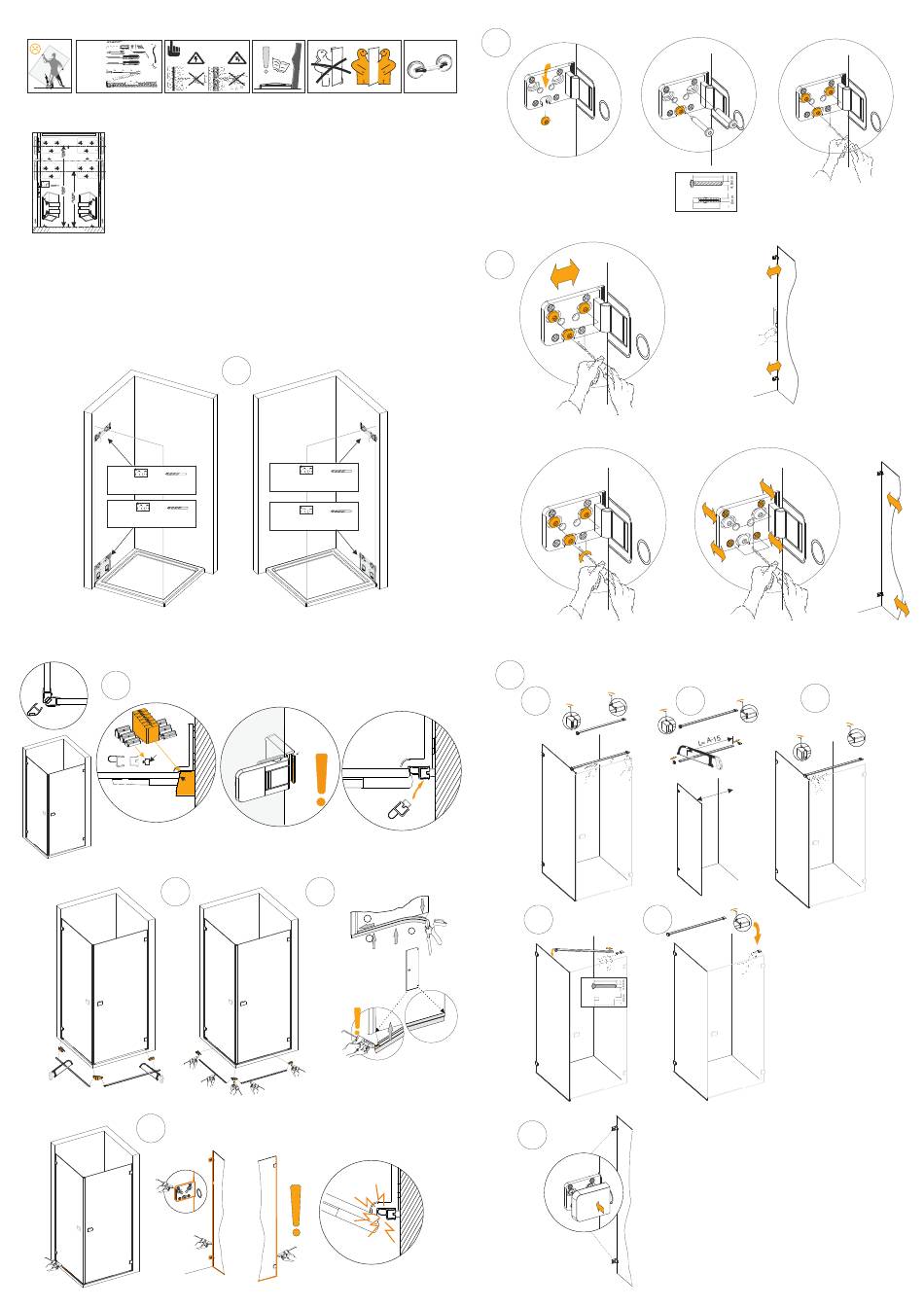

Assembly instructions / drilling template:
- Shower tray: Drilling template to position10mm inside tray edge
- Carefully measure hinge heights from tray surface and position template
- Use always left (LX) / right (RX) template as required by installation (before drilling, check hinge positions)
- Tile joint/ Wetroom: for wetroom installations, align hinges as required to floor / wall boundaries
(10 mm inset may be ignored)
LX
3 X
Ø 6 mm
sopra top oben
LX
3 X
Ø 6 mm
unten sotto bottom
4
b
3x
2
a
5
7
innen
interno
Inside
1
RX
3 X
Ø 6 mm
sopra top oben
RX
Ø 6 mm
3 X
unten sotto bottom
2x
c
6
b
a
aussen
esterno
outside
2
3
a
5 8
a
d
d
c
2 x
2 x
5 9
3X
60mm
Torx 25
6 x
6 x
60mm
c
b
A
e
