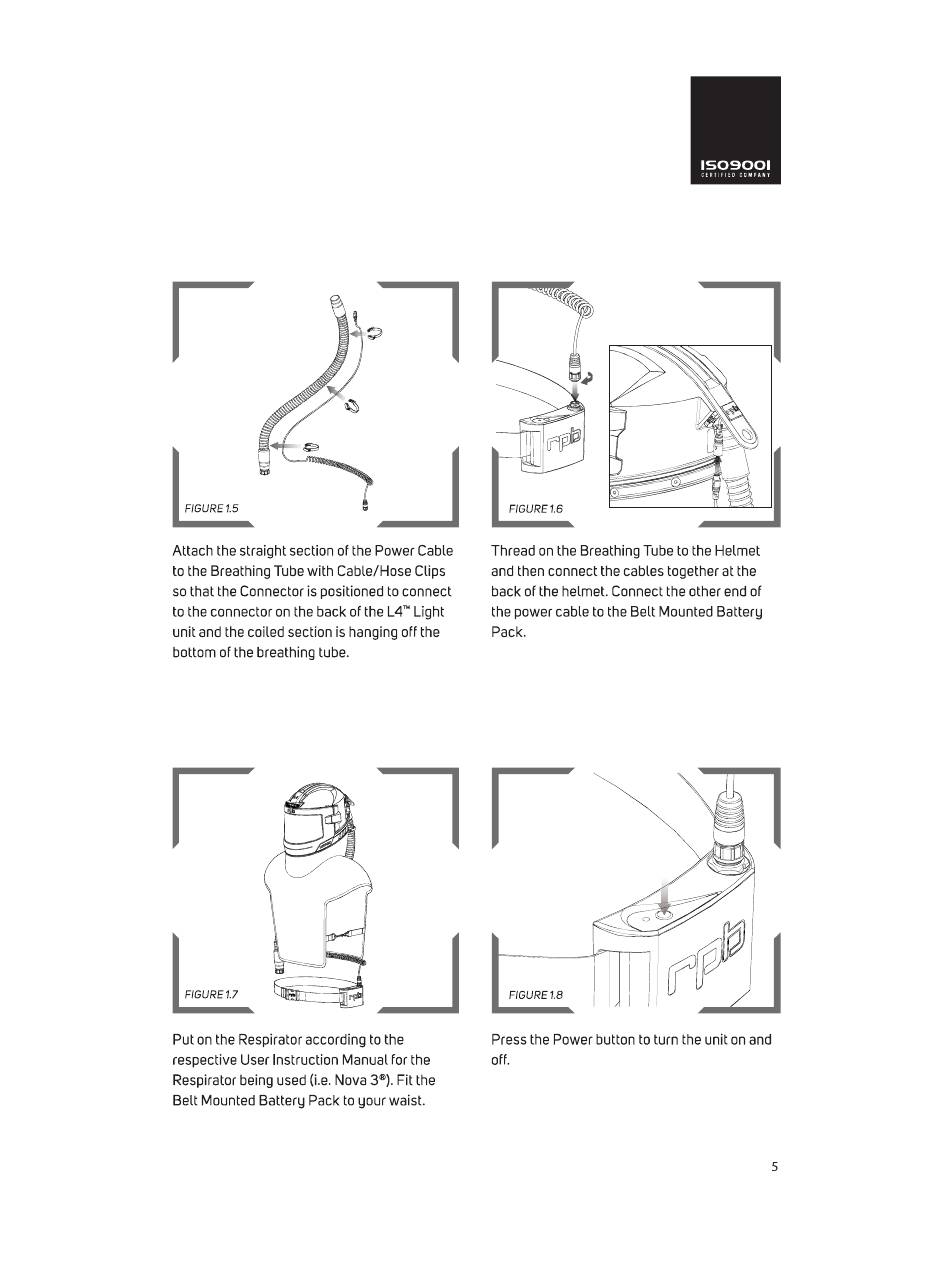

FIGURE 1.5
Attach the straight section of the Power Cable
to the Breathing Tube with Cable/Hose Clips
so that the Connector is positioned to connect
to the connector on the back of the L4" Light
unit and the coiled section is hanging off the
bottom of the breathing tube.
FIGURE 1.7
Put on the Respirator according to the
respective User Instruction Manual for the
Respirator being used (i.e. Nova 3@).Fit the
Belt Mounted Battery Pack to your waist.
FIGURE 1.6
Thread on the Breathing Tube to the Helmet
and then connect the cables together at the
back of the helmet. Connect the other
the power cable to the Belt Mounted Battery
Pack.
FIGURE 1.8
Press the Power button to turn
off.
