14 Chapter 3 Operation

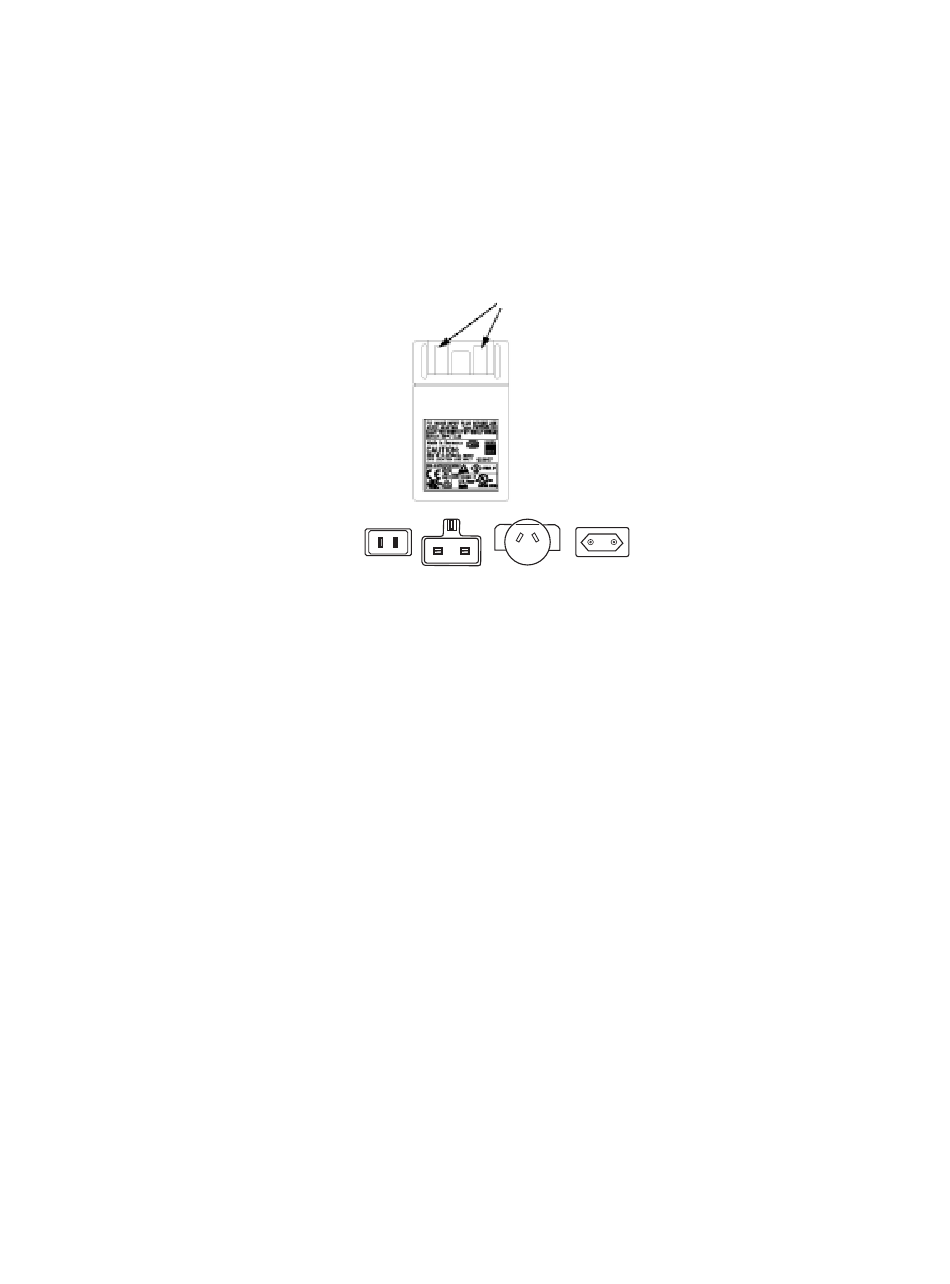

Figure 3. Power Adapter and Mains Plug Inserts
For the setup:
1. Choose the proper mains plug insert and slide it over the two
prongs in the power converter
2. Plug the power adapter into the 9600 Plus Calibration Tester
(Figure 2) and the opposite end into a wall outlet.
3. Observe the Set Point Mode in the upper left hand corner of
the LCD display
Default Mode and will heat to the lowest Set Point
Temperature. If you do not want to conduct testing at this Set
Point Temperature, press and hold the Temperature Selection
button to select the desired setting. The temperature display
will flash before staying on continuously to indicate the 9600
Plus Calibration Tester has stabilized and is ready for use.
Welch Allyn 9600 Plus Calibration Tester
Two prongs in the
power adapter
US UK AUS
(Figure
(Figure 1). If the unit displays a "D", it is in
EU
3).
