INSTRUCTION MANUAL
InLine® Converter VGA+Audio to HDMI Input VGA +
3.5mm Audio jack
GENERAL INFORMATION
Validity:
These operating manual applies to the following products:
• 65004B InLine® Converter VGA+Audio to HDMI Input VGA + 3.5mm Audio jack
Manufacturer:
INTOS ELECTRONIC AG
Siemensstraße 11
D-35394 Gießen
service@inline-info.com
Date: February 2024
CONTENT OF DELIVERY
• 1x InLine® Converter VGA+Audio to HDMI
• 1x Instruction manual (German/English)
Check the contents of delivery for completeness. If individual components are mis-
sing, please contact your specialist dealer.
EXPLANATION OF WARNING SYMBOLS AND NOTES
This symbol indicates information that contributes to better
understanding.
INTENDED USE
This converter converts VGA & audio signals for HDMI screens. No upscaling takes
place when processing the VGA signals, so the highest resolution is 1920x1080.
NON-INTENDED USE
The following is considered improper use in the sense of foreseeable misuse:
• Only use the InLine® Converter VGA+Audio to HDMI in dry, closed rooms and
do not expose it to direct sunlight, extreme temperatures or moisture.
• Do not disassemble the InLine® Converter VGA+Audio to HDMI.
FEATURES / SPECIFICATIONS
• Supports screen resolutions up to FullHD 1920x1080 at 24-bit colour depth
• Compliant with HDMI 1.3
• Compliant with HDCP (copy protection)
• Plug & Play
• VGA input: 15-pin HD SubD connector
• Audio input: 3.5mm jack plug, stereo
• Output: HDMI socket type A
• Power supply via USB A plug (5V DC)
• LED display for operation and activity
• Signal transmission: One VGA input, one stereo input, one USB power supply,
one HDMI output
• Supported resolutions: 800x600, 1024x768, 1280x720, 1280x768, 1280x960,
1280x800, 1280x1024, 1360x768, 1600x900, 1680x1050, 1920x1080

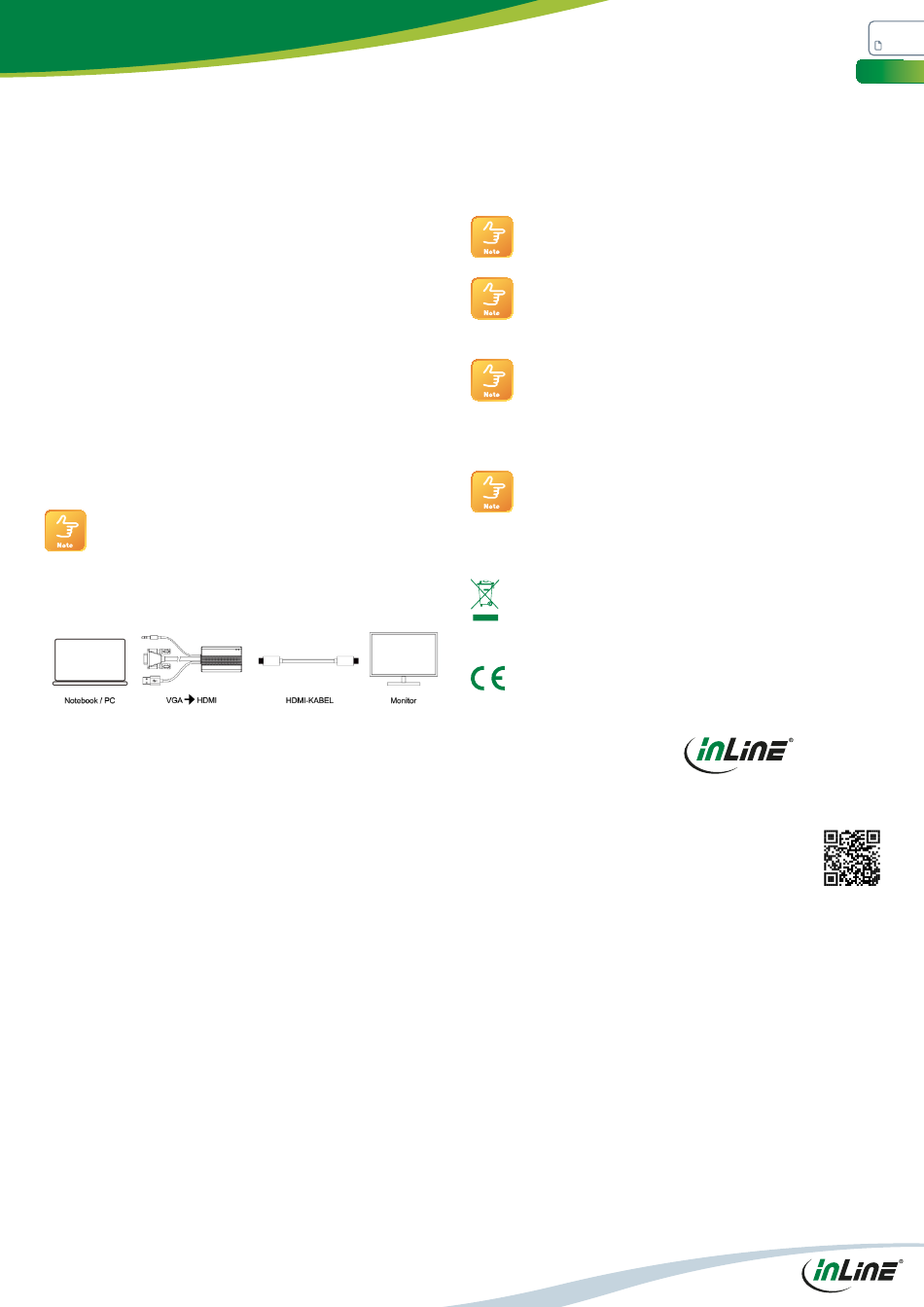

CONNECTION AND COMMISSIONING
1. Switch off your computer.
2. Connect the VGA plug of the video converter to the VGA output of your com-
puter.
3. If you want to play back the computer's audio signal directly via the HDMI out-
put of the video converter, connect the 3.5 mm jack plug to the analogue audio
output of the sound card.
4. The video converter is supplied with power via the USB plug. Connect it to the
USB port of your computer.
5. The USB port must be able to provide a current of 500 mA. Use one of the USB
ports on the back of the PC, for example.
6. Then connect the HDMI socket of the video converter to the HDMI input of the
monitor using an HDMI cable.
2
7. Switch on the monitor and computer. The power LED of the video converter
starts to light up.
8. If your monitor has multiple inputs, you may need to select the HDMI input befo-
re you can see an image on the computer. When the video converter recognises
a connected HDMI device, the blue LED lights up.
The video converter does not require any driver installation, as the analo-
gue VGA signal is converted to an HDMI signal on the hardware side. The
converter is therefore not dependent on the operating system used.
Almost any standard VGA resolution can be converted into an HDMI si-
gnal. As there are numerous graphics cards that send different signals
and signal levels, some resolutions may not be convertible. In such a
case, try a higher or lower resolution. The refresh rate should also be
reduced to 60Hz if it is set to 75Hz, for example.
Playback of digital data carriers (DVD, Blu-ray) may not be possible as
it requires a digital graphics card with HDCP support in the computer.
Nevertheless, the converter converts the analogue VGA signal from the
computer (without HDCP support) into an HDMI signal. But as part of
the operating principle, it is not possible to play back such data carriers if the PC
only has an analogue graphics card whose signal is converted externally into a
digital one.
Select the correct output for audio playback in the operating system:
Windows: Control Panel > Sound > Playback tab; set as default device;
Mac: System Preferences > Sounds > Output tab; set as default output
device
Otherwise, it will not be possible to play the audio signals via HDMI. Also make sure
that the 3.5 mm jack plug is connected to the correct connection on the computer.
(e.g. labelled „Audio Out" or „Line Out")
DISPOSAL
Electrical and electronic equipment and batteries must not be disposed of
with household waste. The consumer is legally obliged to return electrical
and electronic equipment and batteries at the end of their service life to the desig-
nated public collection points or to the point of sale.
SIMPLIFIED EC DECLARATION
OF CONFORMITY
The Manufacturer / Importer:
INTOS ELECTRONIC AG
Siemensstrasse 11
35394 Giessen
hereby declares that this InLine® Converter VGA+Audio to HDMI complies with all
relevant provisions of the EMC (2014/30/EU) and ROHS (2011/65/EU + 2015/863/
EU) directives.
The complete part of the EU Declaration of Conformity is available at
the following internet address:
https://www.inline-info.com/en/downloadcenter
DISCLAIMER
1st edition English 4/2024
Documentation © 2024 INTOS ELECTRONIC AG
All rights reserved. No part of this manual may be reproduced in any form or du-
plicated or processed using electronic, mechanical or chemical processes without
the written consent of the publisher. It is possible that this manual may still contain
typographical errors or misprints. However, the information in this manual is che-
cked regularly and corrections are made in the next edition. We accept no liability
for technical or printing errors and their consequences. All trademarks and indust-
rial property rights are recognised. Changes in the sense of technical progress can
be made without prior notice. Our products, including the packaging, are not toys
and may contain small parts and sharp objects.
Please keep away from children.
Owner of the Trademark:
