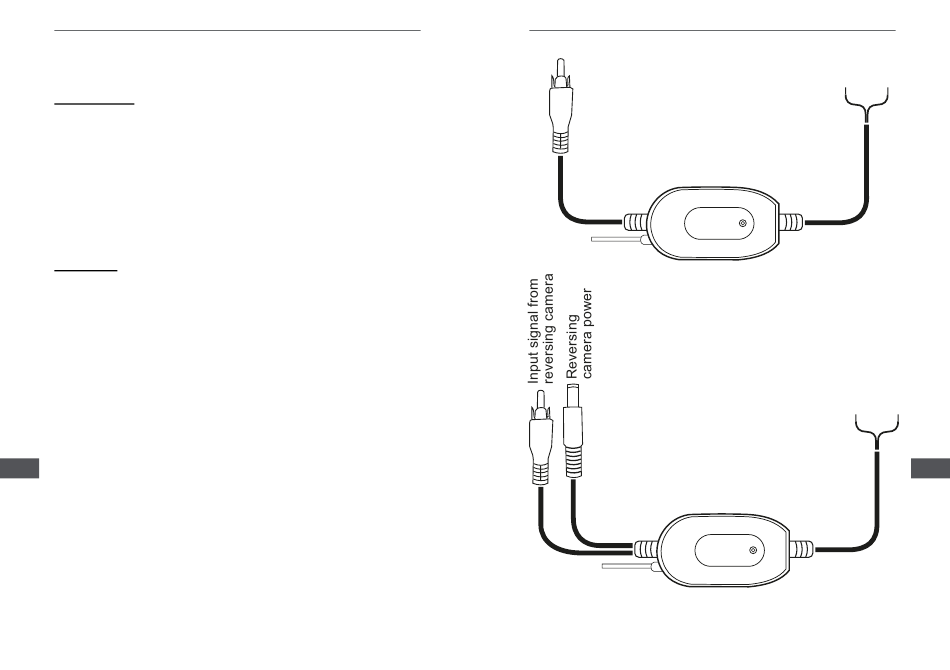

INSTALLATION
Transmitter
1. Connect
the
reversing
connector and signal cable.
2. Connect the black wire to the ground of the car
(ex. the chassis).
3. Connect the red wire to 12 V source, for example
to a reversing light, if the transmitter need to be
switched on after putting the car in reverse gear.
Receiver
1. Connect the signal wire of the receiver to a
display
unit
(reversing
station, etc.)
2. Connect the black wire to the ground of the car
(ex. the chassis).
3. Connect the red wire to 12 V source, for example
to a reversing light, if the transmitter need to be
switched on after putting the car in reverse gear.
EN
8
Owner's manual
camera
to
monitor,
multimedia
power
Owner's manual
Reversing camera
signal to a display
Receiver
Transmitter
Receiver power
(12 V)
Transmitter
power (12 V)
EN
9
