Cable Management

1

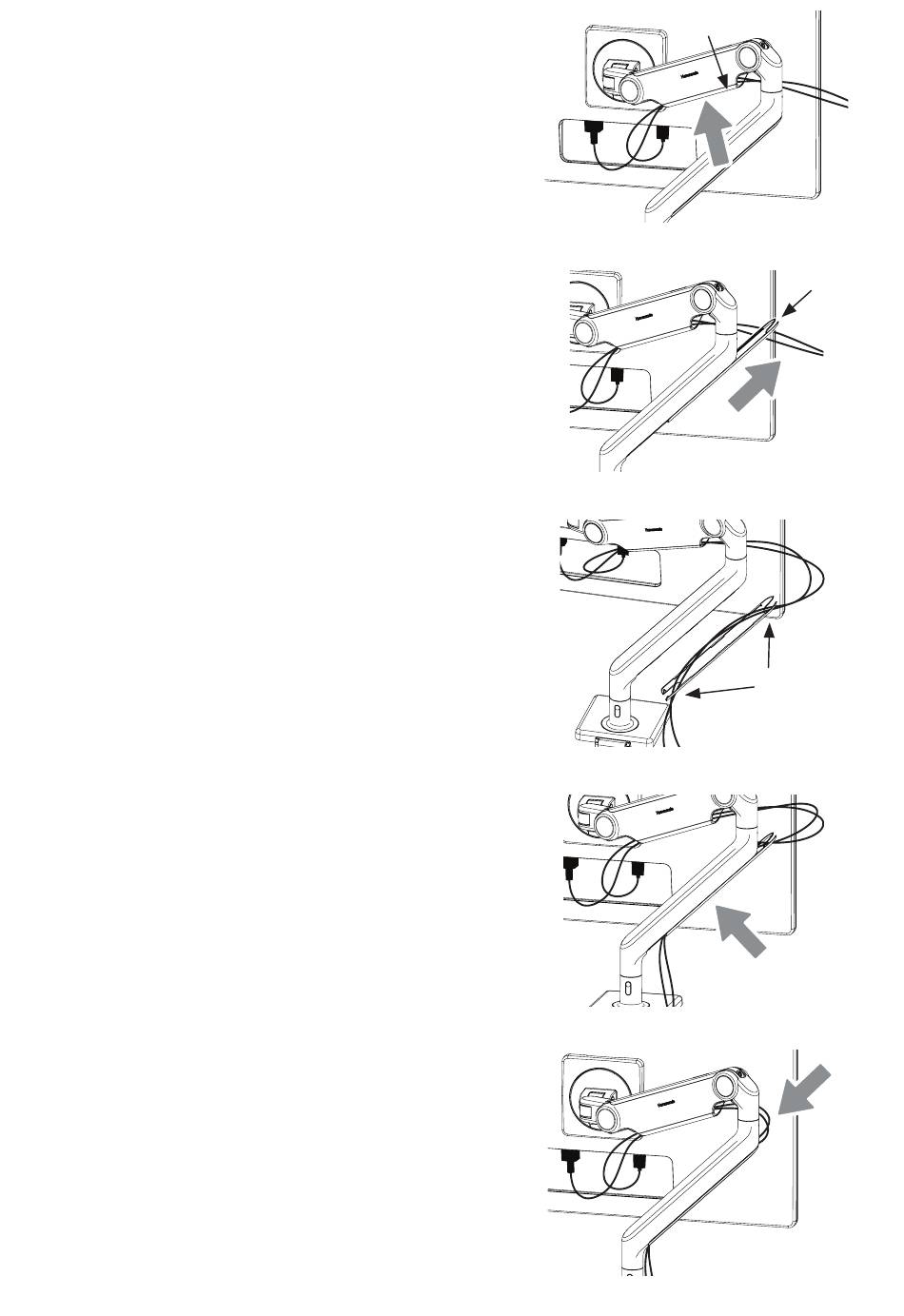

Route power and monitor cables through the flexible cable
clips on the M2.1's upper link (A).
NOTE: Leave enough slack in the cables to allow arms to rotate
without difficulty.
2
Slide the plastic cover (B) on the lower link upward to
remove.
3
Using the two cutouts (C) as guides, run the cables over the
lower link cover.
4
Lift the cover and cables up to the lower link, making sure
that the cover sits flush with the surface of the arm.
5
Slide the cover down the arm to lock in place, then gently
pull the cables through the arm to remove excess slack.
CAUTION: Don't insert extension cords. Don't insert any cord
connecting one workstation to another.
①
②
③
④
⑤
