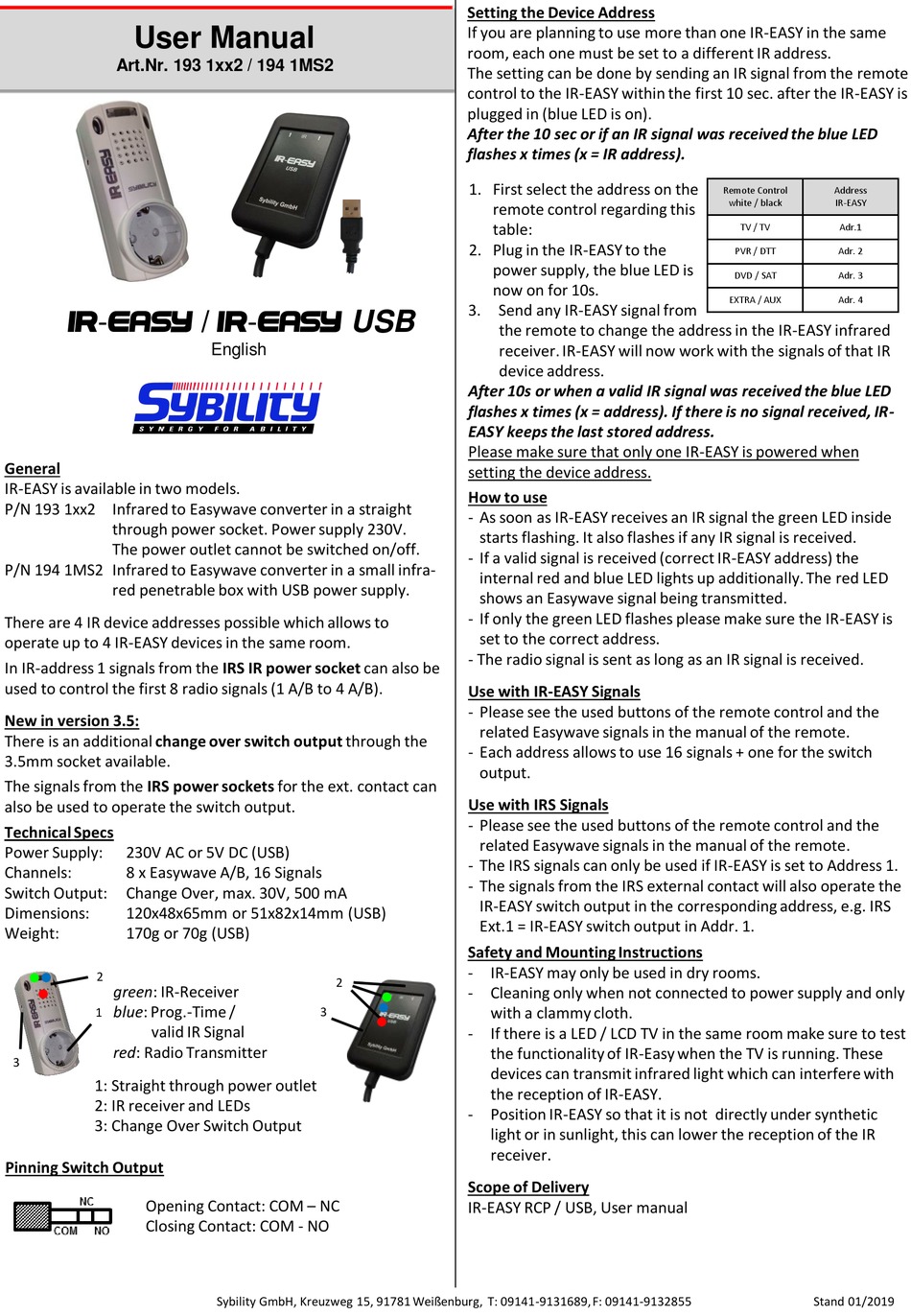

User Manual
Art.Nr. 193 1xx2 / 194 1MS2
•IR-EASY / IR-EASY USB
General
IR-EASY is available in two models.
P/N 193 1xx2 Infrared to Easywave converter in a straight
through power socket. Power supply 230V.
The power outlet cannot be switched on/off.
P/N 194 1MS2 Infrared to Easywave converter in a small infra-
red penetrable box with USB power supply.
There are 4 IR device addresses possible which allows to
operate up to 4 IR-EASY devices in the same room.
In IR-address 1 signals from the IRS IR power socket can also be
used to control the first 8 radio signals (1 A/B to 4 A/B).
New in version 3.5:
There is an additional change over switch output through the
3.5mm socket available.
The signals from the IRS power sockets for the ext. contact can
also be used to operate the switch output.
Technical Specs
Power Supply: 230V AC or 5V DC (USB)
Channels: 8 x Easywave A/B, 16 Signals
Switch Output: Change Over, max. 30V, 500 mA
Dimensions: 120x48x65mm or 51x82x14mm (USB)
Weight: 170g or 70g (USB)
2
green: IR-Receiver
blue: Prog.-Time /
1
valid IR Signal
red: Radio Transmitter
3
1: Straight through power outlet
2: IR receiver and LEDs
3: Change Over Switch Output
Pinning Switch Output
Opening Contact: COM – NC
Closing Contact: COM - NO
English
2
3
Sybility GmbH, Kreuzweg 15, 91781 Weißenburg, T: 09141-9131689, F: 09141-9132855
Setting the Device Address
If you are planning to use more than one IR-EASY in the same
room, each one must be set to a different IR address.
The setting can be done by sending an IR signal from the remote
control to the IR-EASY within the first 10 sec. after the IR-EASY is
plugged in (blue LED is on).
After the 10 sec or if an IR signal was received the blue LED
flashes x times (x = IR address).
1. First select the address on the
remote control regarding this
table:
2. Plug in the IR-EASY to the
power supply, the blue LED is
now on for 10s.
3. Send any IR-EASY signal from
the remote to change the address in the IR-EASY infrared
receiver. IR-EASY will now work with the signals of that IR
device address.
After 10s or when a valid IR signal was received the blue LED
flashes x times (x = address). If there is no signal received, IR-
EASY keeps the last stored address.
Please make sure that only one IR-EASY is powered when
setting the device address.
How to use
- As soon as IR-EASY receives an IR signal the green LED inside
starts flashing. It also flashes if any IR signal is received.
- If a valid signal is received (correct IR-EASY address) the
internal red and blue LED lights up additionally. The red LED
shows an Easywave signal being transmitted.
- If only the green LED flashes please make sure the IR-EASY is
set to the correct address.
- The radio signal is sent as long as an IR signal is received.
Use with IR-EASY Signals
- Please see the used buttons of the remote control and the
related Easywave signals in the manual of the remote.
- Each address allows to use 16 signals + one for the switch
output.
Use with IRS Signals
- Please see the used buttons of the remote control and the
related Easywave signals in the manual of the remote.
- The IRS signals can only be used if IR-EASY is set to Address 1.
- The signals from the IRS external contact will also operate the
IR-EASY switch output in the corresponding address, e.g. IRS
Ext.1 = IR-EASY switch output in Addr. 1.
Safety and Mounting Instructions
- IR-EASY may only be used in dry rooms.
- Cleaning only when not connected to power supply and only
with a clammy cloth.
- If there is a LED / LCD TV in the same room make sure to test
the functionality of IR-Easy when the TV is running. These
devices can transmit infrared light which can interfere with
the reception of IR-EASY.
- Position IR-EASY so that it is not directly under synthetic
light or in sunlight, this can lower the reception of the IR
receiver.
Scope of Delivery
IR-EASY RCP / USB, User manual
Remote Control Address
white / black IR-EASY
TV / TV Adr.1
PVR / DTT Adr. 2
DVD / SAT Adr. 3
EXTRA / AUX Adr. 4
Stand 01/2019
