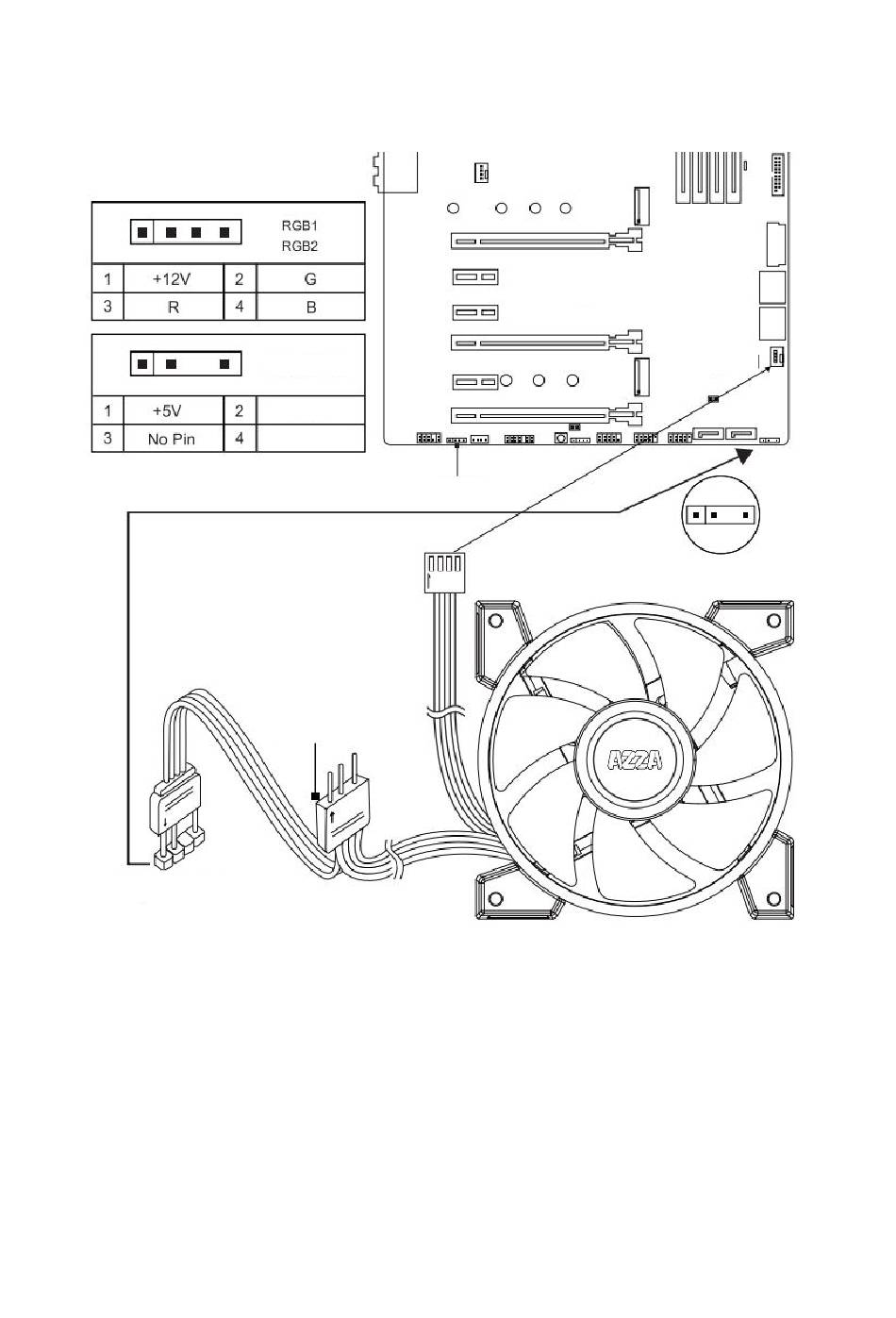

Digital RGB Fan Installation For Motherboard
Digital RGB
The addressable RGB fans can connect directly to the 5V addressable RGB headers or
compatible motherboards, such as those from MSI, AUSS, Gigabyte and AsRock.
Please note: Only 5V addressable headers from compatible motherboards are supported.
Please do NOT connect the fan to a 12V non-addressable header.
Please check your motherboard's specifications before use. Do not go past the
motherboard's allowed limits on power rating and LED count when connecting multiple
fans/LED strips.
Digital RGB
Data
Ground
RGB1
Expansion
Connector
12
RGB Motherboard
SYS_FAN
Digital RGB
