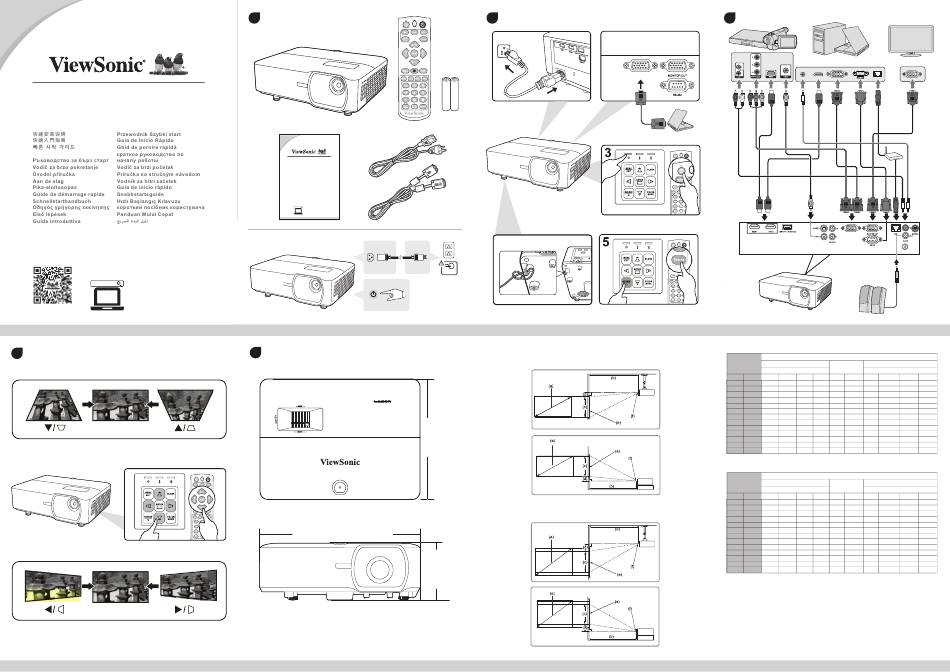

ViewSonic LS750WU Schnellstart Handbuch

LS750WU
DLP Projector
Quick Start Guide
クイックスタートガイド
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php
ViewSonic Projector
4
1
LS750WU
DLP Projector
Quick Start Guide
http://vsweb.us
Download Link
http://vsweb.us/q/dn.php
5 Screws: M4 x 8 (Max. L = 8 mm)
Unit: mm
305 mm
405.4 mm
144.7 mm
2
1 2
4
100-240 Vac
50/60 Hz
• 16:10 image on a 16:10 screen
• 16:10 image on a 4:3 screen
3
RS-232
COMPUTER IN
(a) Screen Size (b) Projection distance
m i . n m
inch mm inch mm inch
30 762 29 724 37
40 1016 38 966 49
50 1270 48 1207 62
60 1524 57 1448 74
70 1778 67 1690 86
80 2032 76 1931 99
90 2286 86 2172 111
100 2540 95 2414 124
120 3048 114 2897 148
150 3810 143 3621 185
200 5080 190 4828 247
250 6350 238 6034 309
300 7620 285 7241 371
(a) Screen Size (b) Projection distance
m i . n m
inch mm inch mm inch
30 762 54 1366 70
40 1016 63 1594 82
50 1270 72 1822 93
60 1524 81 2049 105
70 1778 90 2277 117
80 2032 99 2505 128
90 2286 108 2733 140
100 2540 117 2960 152
120 3048 126 3188 163
150 3810 134 3416 175
200 5080 143 3643 186
250 6350 152 3871 198
300 7620 161 4099 210
There is 3% tolerance among these numbers due to optical component variations. It is
recommended that if you intend to permanently install the projector, you should
physically test the projection size and distance using the actual projector in situ before
you permanently install it, so as to make allowance for this projector's optical
characteristics. This will help you determine the exact mounting position so that it best
suits your installation location.
COMPUTER IN
12V OUT
16:10 image on a 16:10 Screen
(d) Vertical offset
(c) Image
height
a . x m i . n m a . x
mm inch mm inch mm inch mm
941 16 404 0.0 0.0 0.0 0
1255 21 538 0.0 0.0 0.0 0
1569 26 673 0.0 0.0 0.0 0
1883 32 808 0.0 0.0 0.0 0
2197 37 942 0.0 0.0 0.0 0
2510 42 1077 0.0 0.0 0.0 0
2824 48 1212 0.0 0.0 0.0 0
3138 53 1346 0.0 0.0 0.0 0
3766 64 1615 0.0 0.0 0.0 0
4707 79 2019 0.0 0.0 0.0 0
6276 106 2692 0.0 0.0 0.0 0
7845 132 3365 0.0 0.0 0.0 0
9414 159 4039 0.0 0.0 0.0 0
16:10 image on a 4:3 Screen
(d) Vertical offset
(c) Image
height
a . x m i . n m a . x
mm inch mm inch mm inch mm
1776 30 762 0.0 0 0.0 0
2072 35 889 0.0 0 0.0 0
2368 40 1016 0.0 0 0.0 0
2664 45 1143 0.0 0 0.0 0
2960 50 1270 0.0 0 0.0 0
3256 55 1397 0.0 0 0.0 0
3552 60 1524 0.0 0 0.0 0
3848 65 1651 0.0 0 0.0 0
4144 70 1778 0.0 0 0.0 0
4440 75 1905 0.0 0 0.0 0
4737 80 2032 0.0 0 0.0 0
5033 85 2159 0.0 0 0.0 0
5329 90 2286 0.0 0 0.0 0
