Inhaltszusammenfassung für Thorn CESAR STROLL

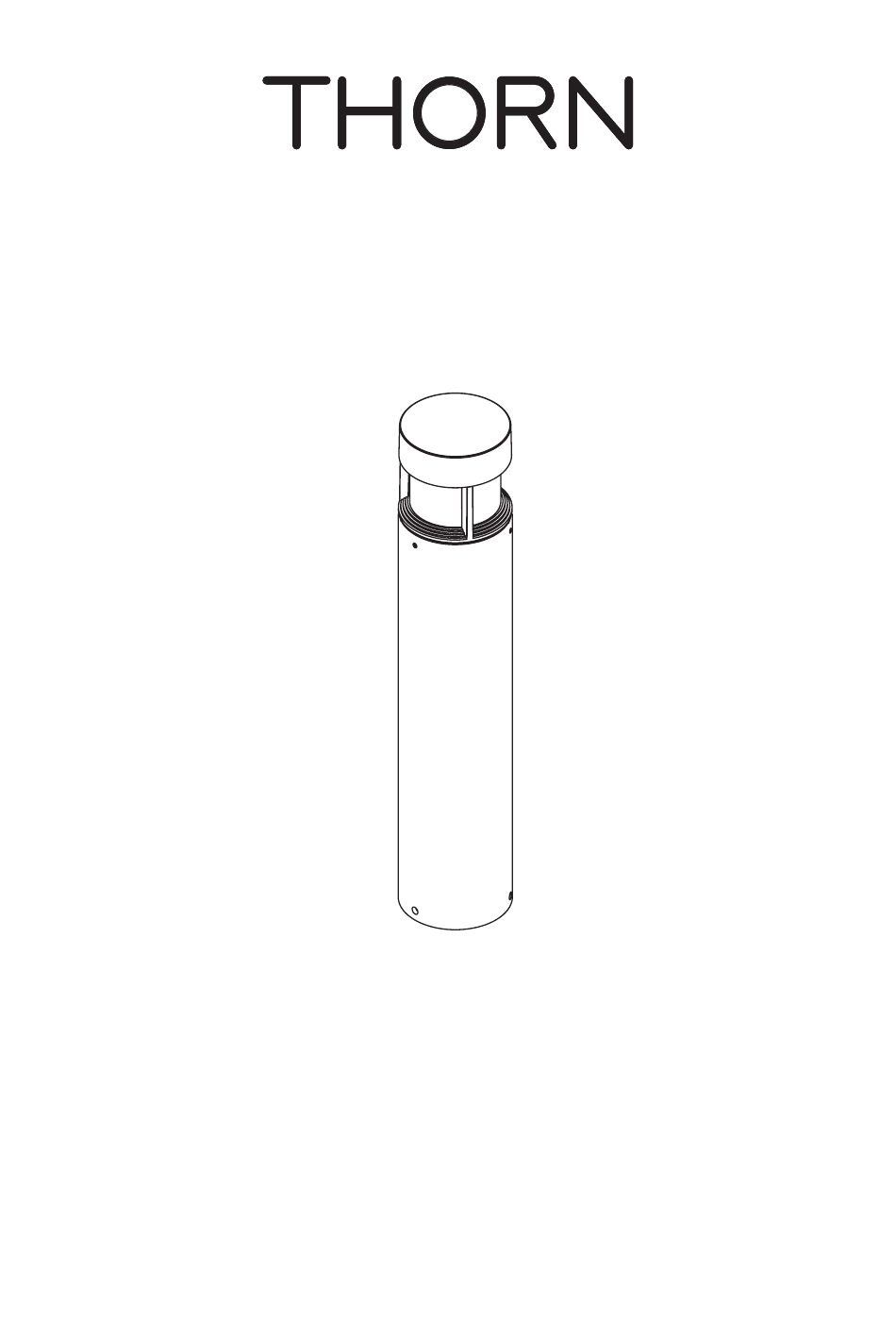

- Seite 1 CESAR STROLL CESARS STROLL B ISTCESSTROLL REV.0 - 10/23...
- Seite 2 CESAR STROLL B CESAR STROLL H = 950mm H = 2430mm INSTALLATION WITH FLANGE INSTALLATION WITH FLANGE INSTALLATION WITHOUT FLANGE INSTALLATION WITH PLATE CESAR STROLL H 2430mm 220-240 V 220-240 V 50/60 Hz 50/60 Hz 176-275 Vdc 176-275 Vdc IP65...
- Seite 3 DALI BUS. Operational ambient temperature range from -20° to 50°C. Usage restricted to private building surrounds, not for pubblic outdoor spaces (Only for CESAR STROLL-B). La tensión de control DALI es una tensión muy baja funcional (FELV). Durante la instalación, mantenga el aislamiento principal entre la línea de alimentación (BT) y los...
- Seite 4 Such disturbances can create permanent damage or failure af- Do not use lamps with higher power than indicated. fecting its performance and durability. The surge protection device (supplied by THORN) Disconnect main voltage before maintenance operations. is utilized to limit the destructive effect of these phenomena. We suggest that each luminaire must be connected to one protection device at not more than 10m away.
- Seite 5 QUALQUER ALTERAÇÃO NESTE APARELHO, SEM AUTORIZAÇÃO, È INTERDITA ! Diese Anzeichen signalisieren eindeutig, dass sich Feuchtigkeit innerhalb der Leuchte befindet. A segurança das luminárias é garantida somente se as normas eléctricas Europeias forem respeitadas bem como as in- Sollten Komponenten innerhalb der Leuchte defekt oder gebrochen sein, so müssen sie durch Original Ersatzteile fach- struções de montagem que estão na embalagem.
- Seite 6 De interne onderdelen zoals de ballasten, transformers, sluitringen en schroeven mogen geen duidelijke tekenen van Nel caso in cui Thorn dia il consenso al reso di apparecchi per il controllo, essi dovranno essere resi senza essere smon- oxidatie of roest vertonen. Roest- en oxidatiesporen duiden op de aanwezigheid van water in het armatuur.
- Seite 7 Apague/aisle la energía antes de la instalación o el mantenimiento. Apague/aisle la energía antes de la instalación o el mantenimiento. INSTALLATION WITH FLANGE INSTALLATION WITHOUT FLANGE Only for Only for CESAR STROLL B CESAR STROLL B Accessory Flange Front side Ø126 mm Foundation concrete block Min.
- Seite 8 Apague/aisle la energía antes de la instalación o el mantenimiento. Accessory Flange Accessory Plate 1C INSTALLATION WITH FLANGE 1D INSTALLATION WITH PLATE Only for Only for Min. 1m CESAR STROLL CESAR STROLL Front side Ø100 Max. Ø50 mm Ø18 Ø190 Light direction Light direction 90°...
- Seite 9 CESAR STROLL CESAR STROLL CLASS II Live / Linea / Leitung Brown / Marrone / Braun Ligne / Linea Brun / Marrón Neutral / Neutro / Null Blue / Blu / Blau Neutre / Neutr Bleu / Azul DA / N...
- Seite 11 Pour plus de détails sur les sites de collecte existants, veuillez contacter GB Thorn reserves the right to introduce all the technical and structural changes required for l’administration locale ou le détaillant auprés duquel vous avez acheté ce produit.
- Seite 13 Thorn Lighting Limited Durhamgate Spennymoor Co. Durham DL16 6HL UK https://www.thornlighting.com...
