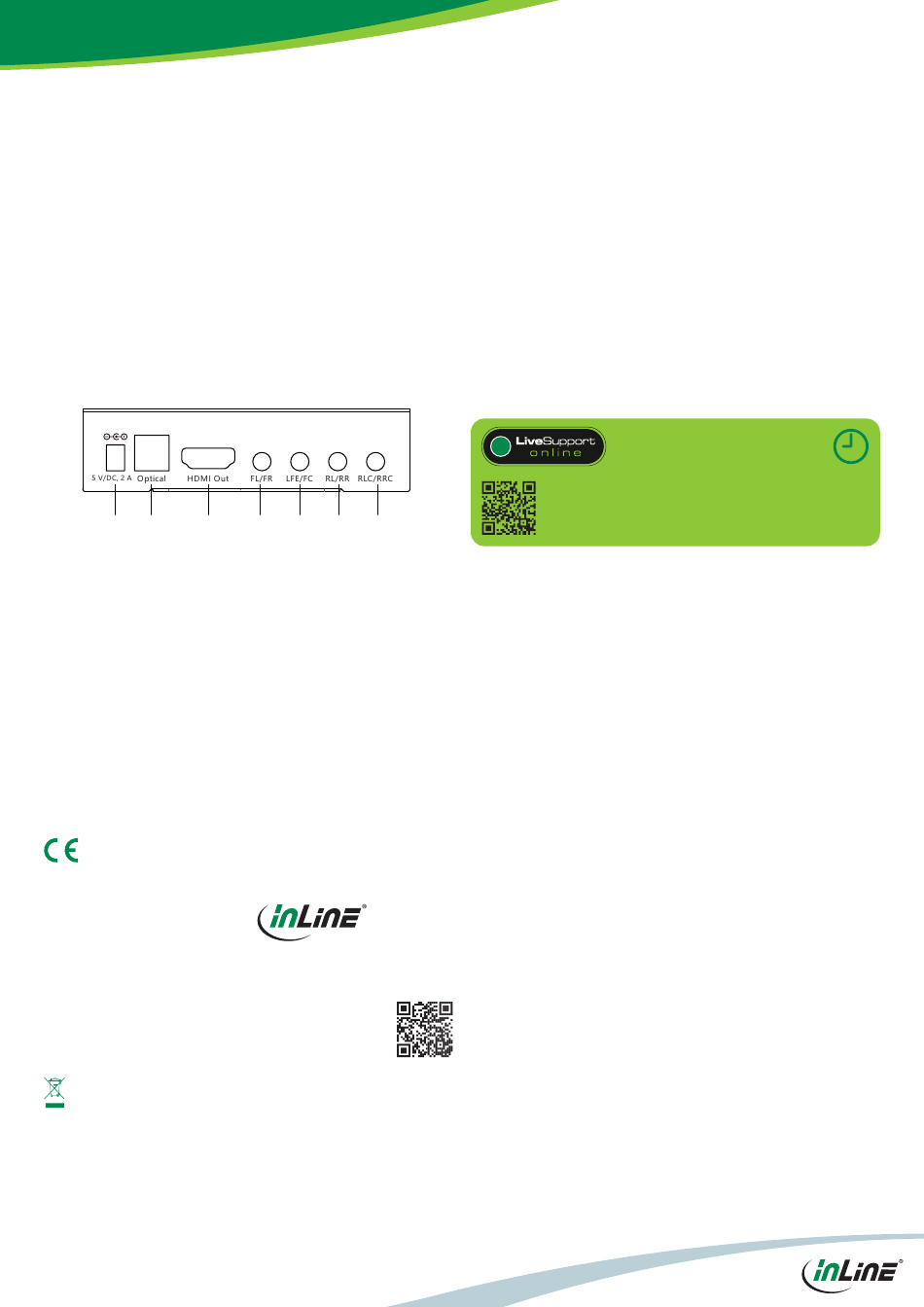

Back side
1. DC 5 V: Connect to the wall socket with a 5V DC power adapter for power
supply.
2. Optical output: Connect audio devices such as an amplifi er or Hi-Fi system via
an optical cable to enable digital audio output. Supports up to bitstream audio
5.1CH and LPCM 2CH.
3. HDMI output: Connect the display (TV/monitor) via HDMI cable to output video
and audio signals. An equivalent standard display is required for 4K2K or 3D
image display. An HDMI output connection is not required for audio transmis-
sion via the analog and optical outputs.
4. FL/FR OUT: Connect to audio devices such as an amplifi er or active speakers
with 3.5 mm jack cable for the front left and front right audio outputs.
5. LFE/FC OUT: Connect to audio devices such as an amplifi er or active speakers
with 3.5mm jack cable for low frequency effects/subwoofer and front center
audio outputs.
6. RL/RR OUT: Connect to audio devices such as an amplifi er or active speakers
with 3.5 mm jack cable for the rear left and rear right audio outputs.
7. RLC/RRC OUT: Connect to audio devices such as an amplifi er or active spea-
kers with 3.5mm jack cable for the rear left center and rear right center audio
outputs.
1 2
TECHNICAL DATA/SPECIFICATIONS
• Compatible with HDMI 4K2K@60Hz, HDCP 1.2 and DVI 1.0
• HDMI audio sampling rate up to 192 kHz
• Optical S/PDIF audio sampling rates up to 192 kHz
• HDMI supports high bit rate audio (HBR).
• No HDMI output connection is required for audio reception on the analog and
optical outputs
• Up to 4x 3.5 mm jack plugs possible for analog multi-channel audio outputs
• The maximum length of HDMI input and output HDMI cable is up to 15 meters
at 1080p 8-bit resolution or 10 meters at 1080p 12-bit resolution
• Integrated audio EDID switching between LPCM 7.1CH, TV EDID (external) and
bitstream audio
• CEC compatible
• 4K2K resolution and 3D signal
Note: When displaying an HDMI 4Kx2K signal, an equivalent source signal, out-
put display and HDMI cables are required to ensure the best image display.
MAINTENANCE AND CLEANING
Clean the product with a dry, velvety cloth.
Do not use water or other cleaning liquids that can damage the electronics.
SIMPLIFIED EC DECLARATION
OF CONFORMITY
The Manufacturer / Importer:
INTOS ELECTRONIC AG
Siemensstrasse 11
35394 Giessen
hereby declares that this InLine® HDMI audio extractor is in conformity with the di-
rectives 2014/30/EU, 2014/35/EU as well as 2011/65/EU incl. supplement 2015/863/
EU and the ERP Regulation - 2019/1782 Regulation from Ecodesign
Directive 2009/125/EU.
The full part of the EU Declaration of Conformity is available at the
following web address:
https://www.inline-info.com/en/downloadcenter
DISPOSAL
Electrical and electronic devices as well as batteries must not be disposed
of with household waste. The consumer is legally obliged to return electrical
and electronic devices and batteries at the end of their service life to the public
collection points set up for this purpose or to the points of sale.
