Commissioning:

19. Place the unit on a 60-70cm high worktop. Pay attention to the safety instructions.

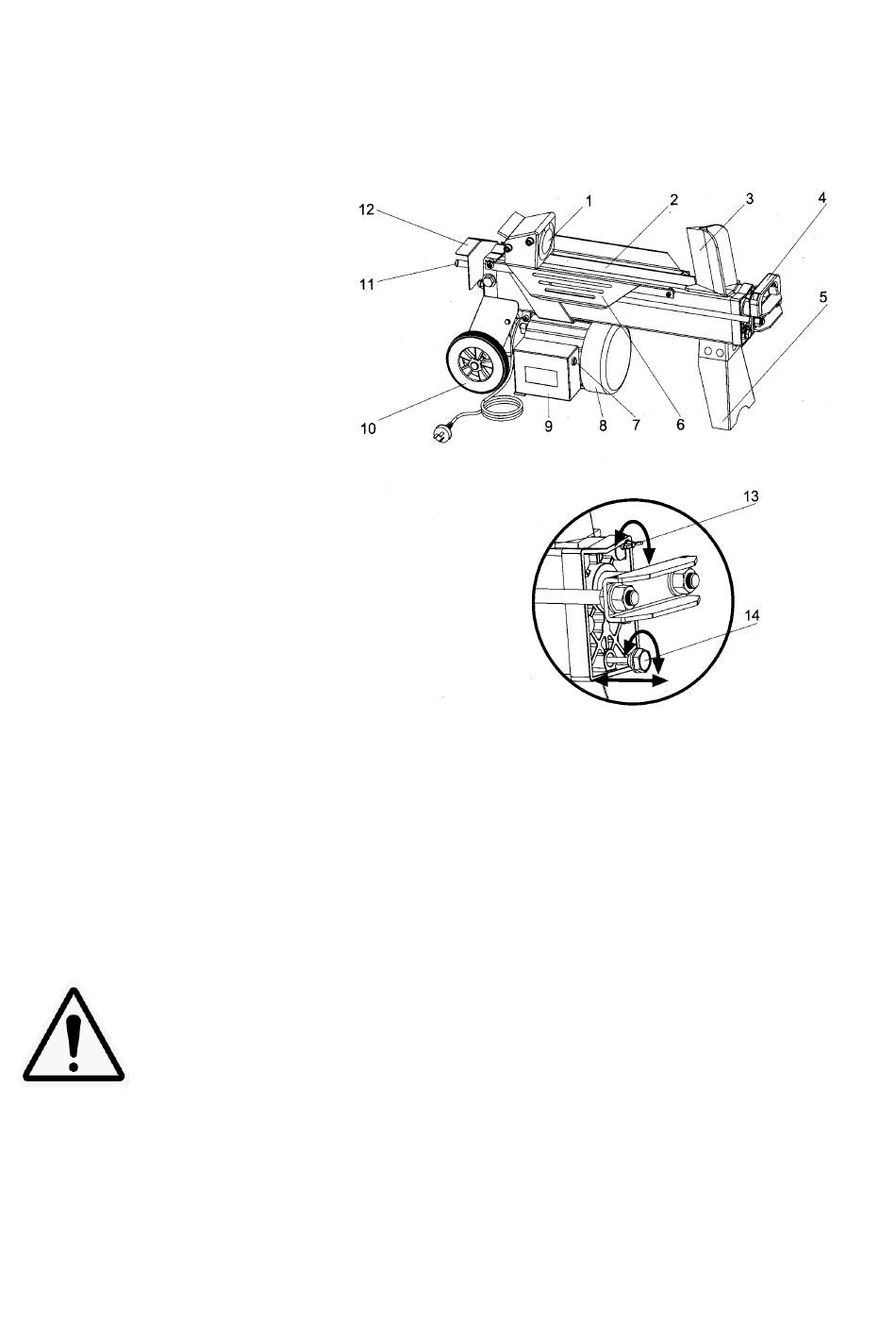

20. Get to know from the following description with the device and its functions.
1. Master slide
2. workspace
3. riving knife
4. lifting handle
5. stand
6. Master Halteblech
7. switch
8. Engine
9. Switch housing
10. Stand wheels
11. Hydraulic adjustment lever
12 Apron
13. bleed screw
14. Drain plug
15. Maximum pressure limiting
screw
Before starting work, the appliance must be vented. Solve this the bleed screw
(position 13) by 3-4 revolutions until air can escape easily.
During the operation of the escaping air stream must be perceptible. Tighten the
screw again before you move the device to prevent escape of hydraulic oil.
Tighten the screw until firmly back when you are finished with the wooden columns.
If you forget the bleed screw to resolve risk of causing! Venting the hydraulic
system is at tightened screw impossible. by constantly recurring compression
and decompression of the air can burst the hydraulic system. The device will
be destroyed!
6
Fig. 1
