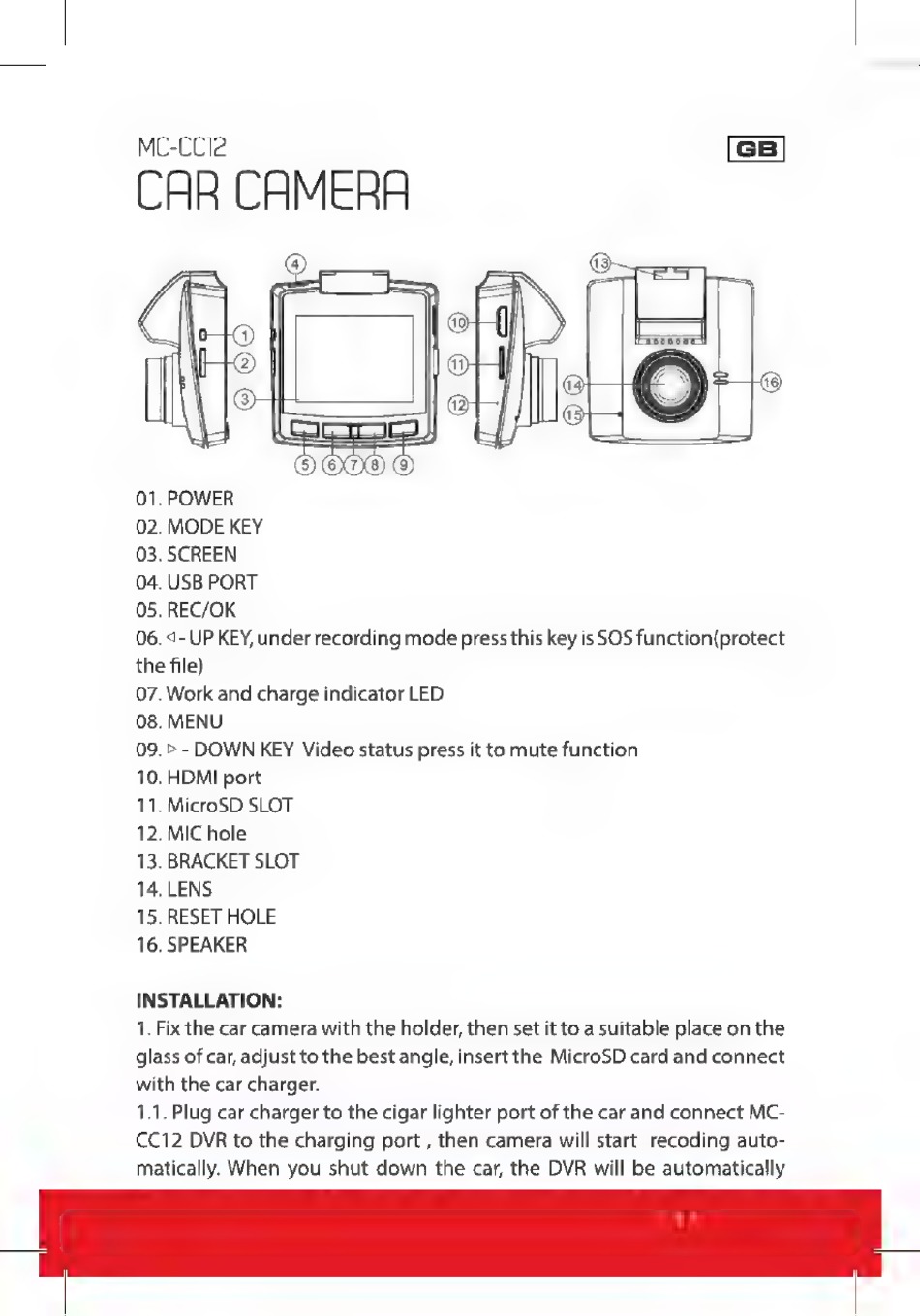

MC-CCl2 GB
CAR CAMERA
01. POWER
02. MODE KEY
03. SCREEN
04. USB PORT
05. REC/OK
06. <- UP KEY, under recording mode press this key is SOS function(protect
the file)
07. Work and charge indicator LED
08. MENU
09. > - DOWN KEY Video status press it to mute function
10. HDMI port
11. MicroSD SLOT
12. MIC hole
13. BRACKET SLOT
14. LENS
15. RESET HOLE
16. SPEAKER
INSTALLATION:
1. Fix the car camera with the holder, then set it to a suitable place on the
glass of car, adjust to the best angle, insert the MicroSD card and connect
with the car charger.
1.1. Plug car charger to the cigar lighter port of the car and connect MC-
CC12 DVR to the charging port , then camera will start recoding auto-
matically. When you shut down the car, the DVR will be automatically
