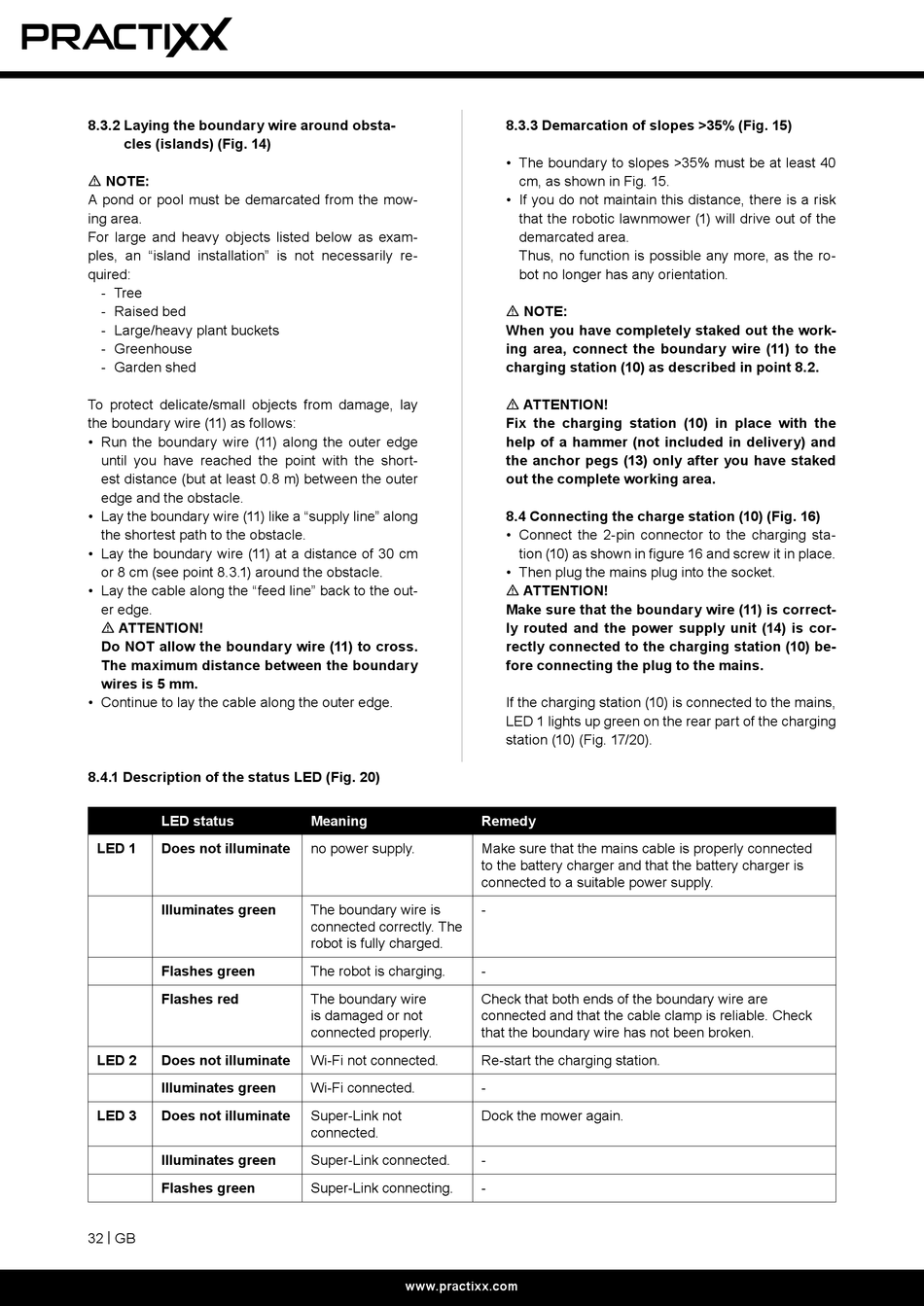

8.3.2 Laying the boundary wire around obsta-
cles (islands) (Fig. 14)
m NOTE:
A pond or pool must be demarcated from the mow-
ing area.
For large and heavy objects listed below as exam-
ples, an "island installation" is not necessarily re-
quired:
- Tree
- Raised bed
- Large/heavy plant buckets
- Greenhouse
- Garden shed
To protect delicate/small objects from damage, lay
the boundary wire (11) as follows:
• Run the boundary wire (11) along the outer edge
until you have reached the point with the short-
est distance (but at least 0.8 m) between the outer
edge and the obstacle.
• Lay the boundary wire (11) like a "supply line" along
the shortest path to the obstacle.
• Lay the boundary wire (11) at a distance of 30 cm
or 8 cm (see point 8.3.1) around the obstacle.
• Lay the cable along the "feed line" back to the out-
er edge.
m ATTENTION!
Do NOT allow the boundary wire (11) to cross.
The maximum distance between the boundary
wires is 5 mm.
• Continue to lay the cable along the outer edge.
8.4.1 Description of the status LED (Fig. 20)
LED status
LED 1 Does not illuminate
Illuminates green
Flashes green
Flashes red
LED 2 Does not illuminate
Illuminates green
LED 3 Does not illuminate
Illuminates green
Flashes green
32 | GB
Meaning Remedy
no power supply. Make sure that the mains cable is properly connected
to the battery charger and that the battery charger is
connected to a suitable power supply.
The boundary wire is -
connected correctly. The
robot is fully charged.
The robot is charging. -
The boundary wire Check that both ends of the boundary wire are
is damaged or not connected and that the cable clamp is reliable. Check
connected properly. that the boundary wire has not been broken.
Wi-Fi not connected. Re-start the charging station.
Wi-Fi connected. -
Super-Link not Dock the mower again.
connected.
Super-Link connected. -
Super-Link connecting. -
www.practixx.com
8.3.3 Demarcation of slopes >35% (Fig. 15)
• The boundary to slopes >35% must be at least 40
cm, as shown in Fig. 15.
• If you do not maintain this distance, there is a risk
that the robotic lawnmower (1) will drive out of the
demarcated area.
Thus, no function is possible any more, as the ro-
bot no longer has any orientation.
m NOTE:
When you have completely staked out the work-
ing area, connect the boundary wire (11) to the
charging station (10) as described in point 8.2.
m ATTENTION!
Fix the charging station (10) in place with the
help of a hammer (not included in delivery) and
the anchor pegs (13) only after you have staked
out the complete working area.
8.4 Connecting the charge station (10) (Fig. 16)
• Connect the 2-pin connector to the charging sta-
tion (10) as shown in figure 16 and screw it in place.
• Then plug the mains plug into the socket.
m ATTENTION!
Make sure that the boundary wire (11) is correct-
ly routed and the power supply unit (14) is cor-
rectly connected to the charging station (10) be-
fore connecting the plug to the mains.
If the charging station (10) is connected to the mains,
LED 1 lights up green on the rear part of the charging
station (10) (Fig. 17/20).
