Installation

Recommended mounting height from the floor level to the bottom of the hand dryer:
Adults: 120 cm; wheelchair users, children: 100 cm.
There must be a minimum clearance of 40 cm, in the direction of air discharge, from wall
shelves, wash-basins, etc.!
Avoid reflecting surfaces within the detection range of the sensor lens!
When choosing the installation location, make sure that the safety distances in accordance with
the relevant regulations are complied with!

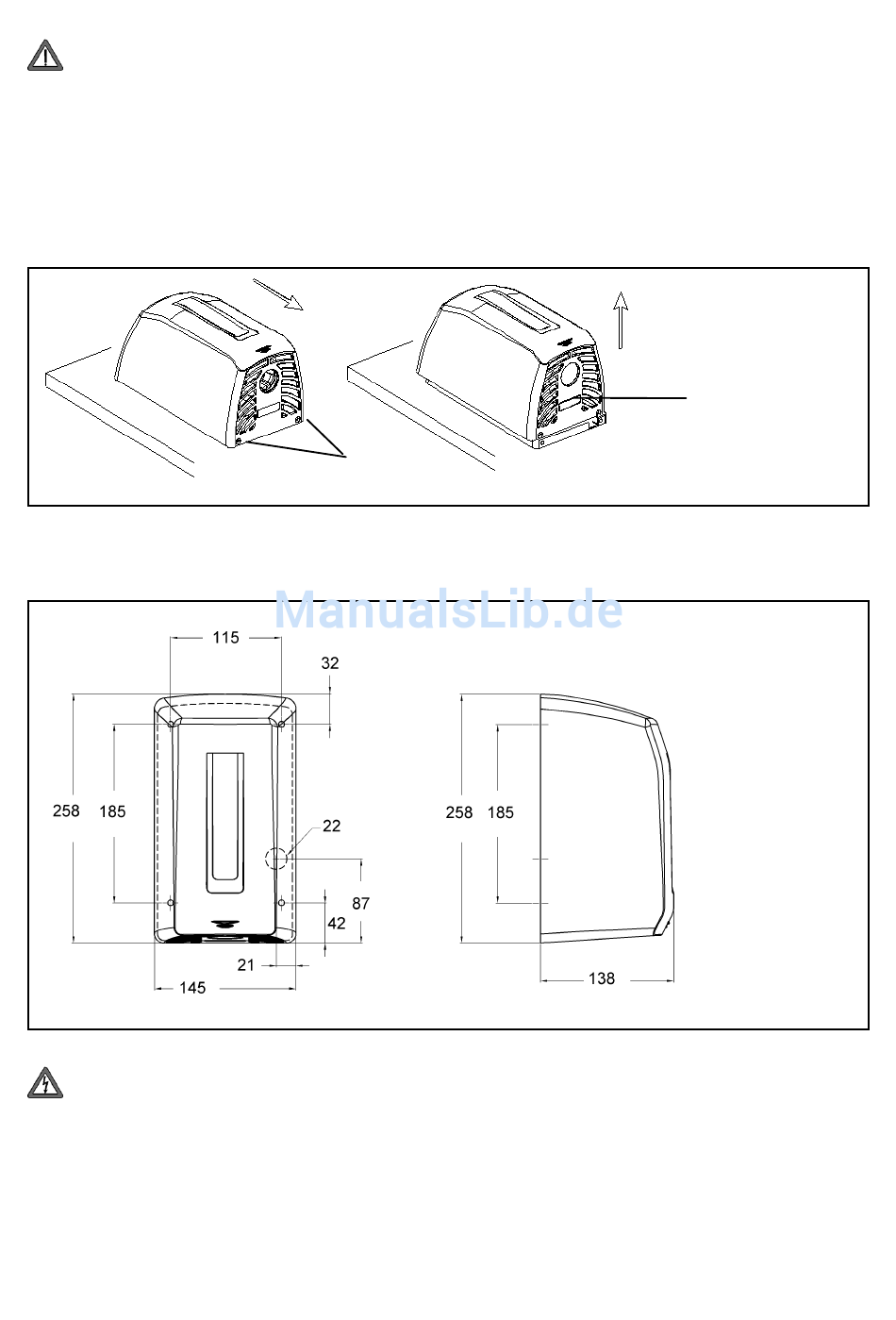

Remove screws of casing cover in the base of the unit using special spanner (supplied in the
parts bag). Pull cover upwards in the direction of air outlet and remove in upward direction.
The packing box contains a drilling template with the dimensions of the mounting base.
Mount the hand dryer on a vertical wall with the air outlet opening pointing downwards, bearing in
mind the mounting dimensions detailed below.
Dimensions in mm
Mark the location of the four mounting holes 115 mm x 185 mm (see illustration above).
Disconnect the relevant electrical circuit (remove fuse) before continuing with the mounting
work!
When inserting the rawlplugs, be careful of existing electrical cables in the wall!
Risk of electric shock! The screws and rawlplugs for wall-mounting are supplied with the unit.
However, special mounting materials may need to be used according to the construction of the
wall (e.g. lightweight partition walls). Seek specialist advice.
Drill Ø 6 mm holes for the rawlplugs and insert the plugs.
Strip the power supply cable and feed it through the opening in the back panel of the device.
Secure the back panel of the unit to the wall using the screws supplied.
Remove
screws
Cable entry
6
Sensor lens
