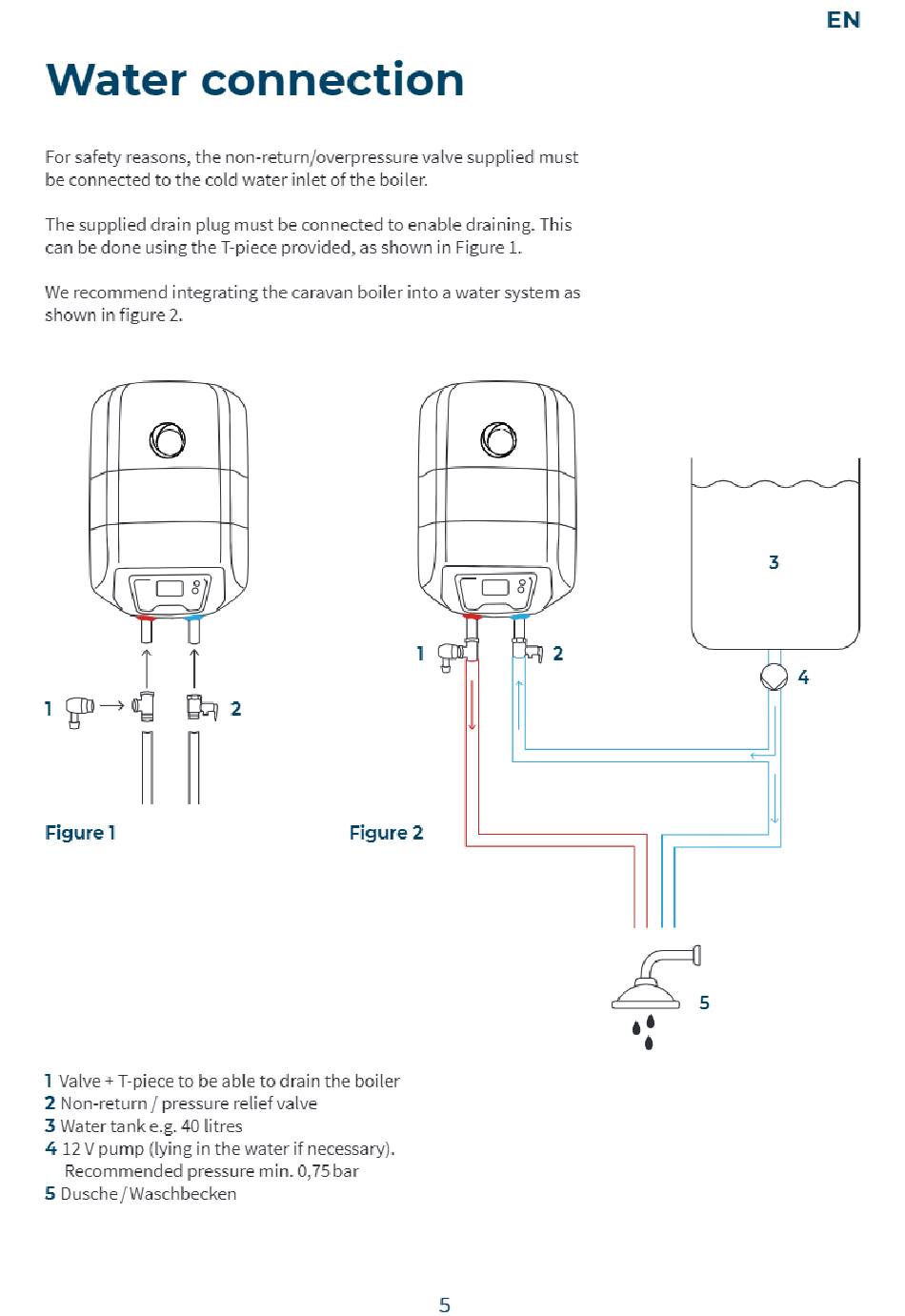

Water connection
For safety reasons, the non-return/overpressure
be connected to the cold
The supplied drain plug must be connected to enable draining. This
can be done using the T-piece provided, as shown in Figure 1.
We recommend integrating the caravan boiler into a water system as
shown in figure 2.
O
Figure I
1 Valve + T-piece to be able to drain the boiler
2 Non-return / pressure relief valve
3 Water tank e.g. 40 litres
4 12 V pump (lying in the water if necessary).
Recommended pressure min. 0,75 bar
S Dusche / Waschbecken
water inlet of the boiler.
Figure 2
valve supplied must
O
2
5
EN
3
4
5
