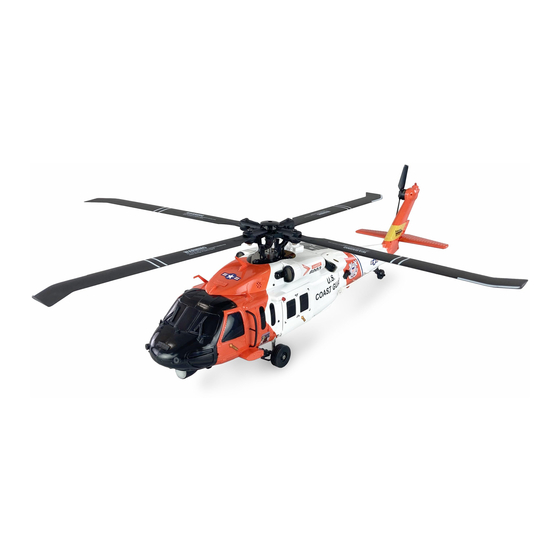

Inhaltszusammenfassung für Amewi UH60 BLACK HAWK U.S. COAST GUARD & MARINE 6G/3D GPS RTF 25337
Seite 1
UH60 BLACK HAWK U.S. COAST GUARD & MARINE 25337, 25348 JUST REMOTE-CONTROLLED BEDIENUNGSANLEITUNG OPERATION MANUAL...
Seite 3
Welcome to AMEWI The Amewi Trade GmbH is an international import- and wholesale company for R/C models, toys and creative items, located in Borchen near Paderborn, Germany. Our product range includes over 10,000 items. Above all, this includes remote-controlled car, helicopter, boat, and tank models as well as a wide range of accessories and all necessary spare parts.
Seite 4
This product has been manufactured according to actual technical standards. The product is matching the requirements of the existing European and national guidelines. The Declaration of Conformity has been proofed. AMEWI Trade GmbH declares that this product is matching the basic requirements and remaining regulations of the guideline 2014/53/EU {RED). The declarations and documents are stored at the manufacturer and can be requested and applied there.
Seite 5
Das oben beschriebene weist auf die Gefahr der Verwendung des Akkus hin. Der Benutzer übernimmt die volle Verantwortung für das Ergebnis der Verwendung des Akkus. Beachten Sie unbedingt unsere Sicherheitshinweise welche Sie online unter https://amewi.com/downloads/manuals/Akku-Sicherheitshinweise.pdf finden können. Batteries / rechargeable batteries do not belong in the hands of children.
Seite 6
DISPOSAL ENTSORGUNGSHINWEISE / Die Firma AMEWI Trade GmbH ist unter der Batt-Reg.-Nr. DE 77735153 sowie der WEEE-Reg.-Nr. 93834722 bei der Stiftung EAR angemeldet und recycelt alle gebrauchten elektronischen Bauteile ordnungsgemäß. Elektrische und elektronische Geräte dürfen nicht in den Hausmüll. Entsorgen Sie das Produkt am Ende seiner Lebensdauer gemäß...
Seite 7
Vielen Dank für den Kauf des Amewi UH60 Black Hawk Marine Helikopters. Bitte lesen Sie die Bedienungsanleitung aufmerksam durch und bewahren Sie sie für spätere Fragen auf. Thank you for purchasing the Amewi UH60 Black Hawk helicopter. Please read the instruction manual carefully and keep it for future reference.
Seite 8
Sendemasten. Orten mit aktiven Funkwellen. Near crowds or in public places. Near rivers, ponds or lakes. Near electricity pylons or other Near a radio tower, mobile phone transmission towers. masts or other places with active radio waves. amewi.com...
Seite 9
Fahren bzw. fliegen Sie nicht halten Sie es von kleinen Kindern fern. auf öffentlichen Straßen oder As the product contains small parts, überfüllten Plätzen. keep it away from small children. Do not operate the model on public roads or crowded places. amewi.com...
Seite 10
Improper operation may cause damage to the model aircraft and cost your valuable time and money. BOX CONTENT LIEFERUMFANG / Helikopter Helicopter Fernsteuerung Transmitter Akku 11,1V 1350mAh 30C Battery 11,1V 1350mAh 30C Ladegerät Charger Werkzeug Tools Ersatz Haupt- und Heckpropeller Spare Rotor, Tail Rotor amewi.com...
Seite 11
3. The indicator light stops flashing when charging is complete. without supervision. 4. Remove the battery from the charger as soon as charging is complete. Please use the original standard charger to charge the battery. 11,1V 1350mAh Ladegerät Charger amewi.com...
Seite 12
Entfernen Sie den Akku nach der Nutzung aus dem Modell, um ein Tiefentladen zu verhindern. WARNING: Please turn off the battery power after use, leaving it on for a long time may shorten the battery life. Please remove the battery after using, so as not to damage the battery by over-discharge. amewi.com...
Seite 13
Flight mode GPS quantity Model battery Coming home Transmitter battery GPS quality Beschleunigung Flugrichtung / Flight direction Fernsteuerungsmodus hoch/niedrig Remote-control mode Foto / Picture Betriebsrate Video* Entfernung Höhe Geschwindigkeit * Kamera nicht enthalten Distance Altitute Speed * Camera not included amewi.com...
Seite 14
Kreis um das Zentrum mit diesen Koordinaten. When you press the reset switch down in GPS mode, the aircraft records the current coordinates and flies in a horizontal circle around the centre with these coordinates. amewi.com...
Seite 15
Der Schalter nach unten ist die Rückkehrmodus, bei dem Helikopter sofort zum Startpunkt zurückfliegt, landet und die Motoren abstellt. The switch down is the return mode, where helicopters immediately fly back, land and switch off the engines. amewi.com...
Seite 16
5. If the binding is not successful, please repeat the above steps and try again. Note: After successful frequency matching, the indicator light will be displayed accordingly depending on the current remote control switch position, please refer to the light indication. amewi.com...
Seite 17
Nach erfolgreichem Binden, drücken Sie bitte den linken Hebel der Fernsteuerung (MODE2) in die unterste linke Ecke und die unterste rechte Ecke mit dem rechten Hebel für 2 - 3 Sekunden, wie im Bild gezeigt. Die gelbe LED am Helikopter blinkt. Sobald die grüne LED dauerhaft leuchtet, ist die Kalibrierung abgeschlossen. amewi.com...
Seite 18
Place the helicopter on the ground. In Mode 2, pull the left lever to the lower left corner and the right lever to the upper right corner. The yellow LED flashes, indicating that the helicopter is in compass calibration. amewi.com...
Seite 19
Drücken Sie nun den Gashebel über 50%, der Helikopter hebt ab. STARTING Motor To start the helicopter manually, pull both levers to the outer, lower corners (see drawing). Then quickly release them. Now press the throttle above 50%, the helicopter will take off. amewi.com...
Seite 20
Wenn Sie nicht mit der Fernsteuerung vertraut sind, nehmen Sie sich ein paar Minuten Zeit, um sich mit der Bedienung auseinanderzusetzen. If you are not familiar with the remote control, take a few minutes to learn how to use it. Gashebel Steigen Gashebel Sinken Throttle lever Raise Throttle lever Descent amewi.com...
Seite 21
Right Rotation Richtungshebel hoch Vorwärts Richtungshebel runter Rückwärts Direction lever up Forward Direction lever down Backward Richtungshebel nach links Links rollen Richtungshebel nach rechts Rechts rollen Direction lever to the left Roll left Direction lever tot he right Roll right amewi.com...
Seite 22
Der manuelle Flugmodus kann über den SWB-6 Schalter aktiviert werden. Befindet sich dieser in der unteren Position, ist der Modus aktiv. Verwenden Sie diesen Modus nur, wenn Sie ein geübter Pilot sind oder wenn es zu Problemen mit der GPS- Koordination oder anderen Sensoren kommt und Sie eine Notlandung vollziehen müssen. amewi.com...
Seite 23
The sensor system scans the objects through a lens. The limited height is 6 metres, please avoid launching on a building roof or similar. If you fly over the roof of a building, the lower system will fail, and the helicopter will drift. In this case you should fly the model back immediately or switch to GPS stabilisation mode immediately. amewi.com...
Seite 24
The inverted flight works in the opposite direction as the normal flight (lever up, helicopter down, lever forward, helicopter backward). Press the MODE button again and press the lever, the helicopter turns around and continues flying normally. amewi.com...
Seite 25
GPS sign on the transmitter screen, the GPS mode cannot be enabled for launch. When launching in visual sensor mode or manual setting mode, the launch point is recorded at the position where satellites are found. This involves a risk, do not use the auto home function in this case. amewi.com...
Seite 26
Höhenbereich von 20 Meter als Fluggrenze und geht in den Schwebeflug über. Zu diesem Zeitpunkt können Sie können Sie das Modell so steuern, dass es innerhalb dieser Grenze fliegt, bis die Schutzstufe 2 eintritt. Das Modell landet am Rückkehrpunkt und schaltet sich ab. amewi.com...
Seite 27
When the connection to the remote control is re-established and the signal continues (the model icon and RX power appear on the remote-control display), the helicopter completes the return flight and hovers to wait for the operation command. amewi.com...
Seite 28
Aus Sicherheitsgründen ist der Helikopter auf eine Flughöhe von 120 Metern und auf eine Flugdistanz von 350 Metern beschränkt. For safety reasons, the helicopter is limited to a flight altitude of 120 metres and a flight distance of 350 metres. amewi.com...
Seite 29
Switch down 8 times Drücken Sie die Kamerataste lange, um die Servo-Referenzierung aufzurufen. Long press the camera button to enter the servo homing Querruderanlenkung Richtungsanlenkung Aileron linkage Directional linkage Hebeanlenkung Lifting linkage Die Fernsteuerung ist mit dem Empfänger des Helikopters verbunden. amewi.com...
Seite 30
When the helicopter is in gyro detection mode, please place it on a flat surface or on the helicopter is powered on. ground. Der Hubschrauber kann nach dem Start Kalibrieren Sie den Gyro neu, indem Sie den Helikopter auf einen ebenen Boden oder Tisch nicht schweben oder neigt sich auf eine stellen. amewi.com...
Seite 31
Der Helikopter kann nicht schweben, er Die Kompassdaten sind falsch. Bitte kalibrieren sie den Kompass neu. dreht sich permanent im Kreis. The helicopter cannot hover, it is constantly The compass data is wrong. Please recalibrate the compass. turning in circles. amewi.com...
