STEP 1 Attach Brackets to TV
1-1 Select TV Screw Diameter
Hand thread screws into the threaded inserts on the
back of your TV to determine which screw diameter
(M4,
M6, or
M8) to use.
M4
M6
M8
6

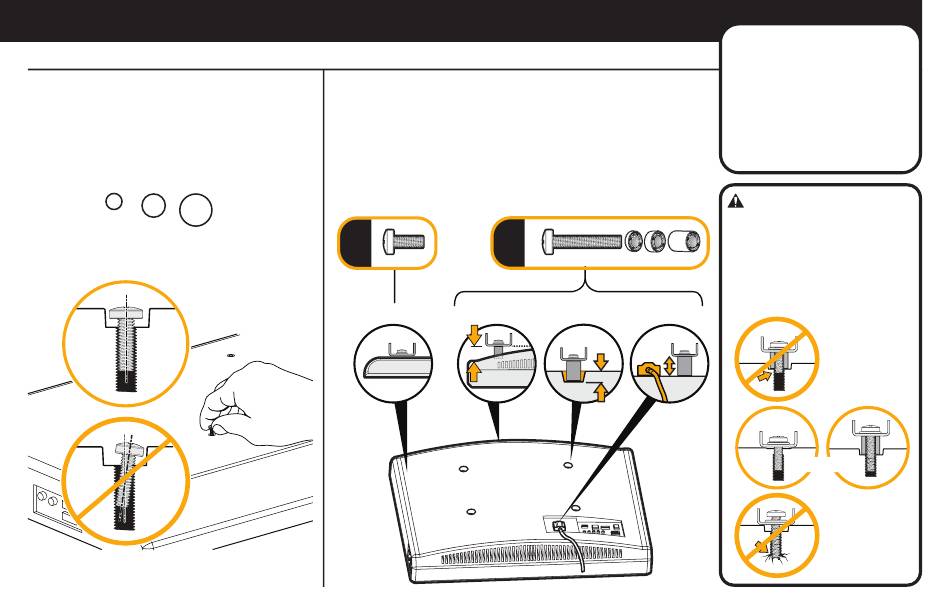

1-2 Select TV Screw Length
If your TV has a flat back AND you want your TV closer to the wall, use
the shorter screws (a).
Use the spacers and longer screws (b) to accommodate:
● Round/irregular back TVs
● TVs with inset mounting holes
● Extra space needed for cables
a
b
FLAT BACK
ROUND BACK
Verify adequate thread engagement
with the screw or screw/spacer
combination.
-
-
INSET HOLES
CABLES
Standard configurations are
shown. For special applications,
or if you are uncertain about
your hardware selection,
contact Customer Service at
US: +1 (888) 333-9952
(UK: +44 (0) 800 056 2853;
EMEA: +31 (0) 495 580 852)
CAUTION:
Too short will not hold the TV.
Too long will damage the TV.
Too Short
Correct
Too Long
