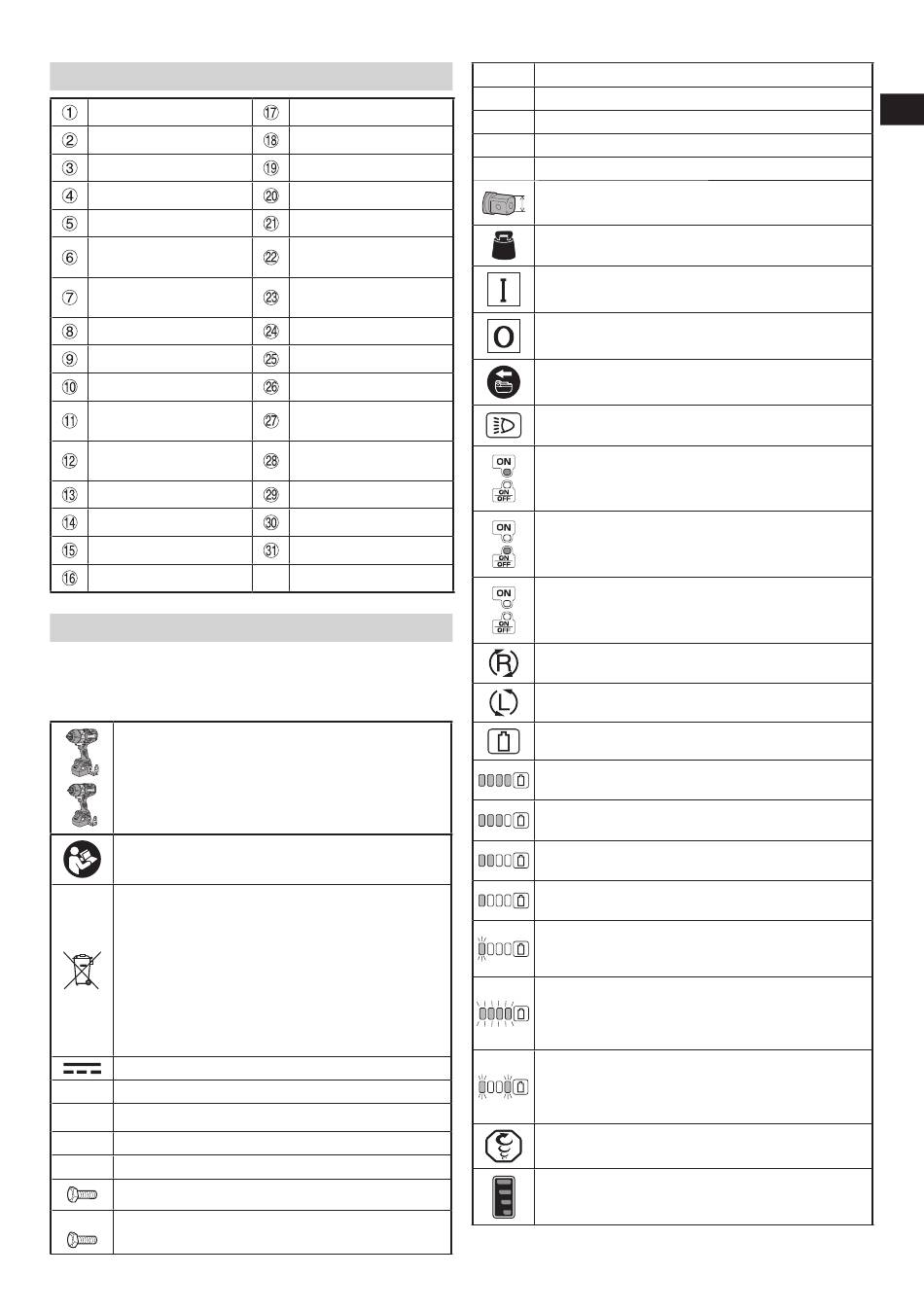

NAMES OF PARTS (Fig. 1 – Fig. 15)
Hammer case
Anvil (A)
Friction ring (C)
LED Light
Trigger switch
Switch panel
Battery
Hook
Handle
Push button
Housing
Anvil (B)
Friction ring (B)
Latch
Charge indicator lamp
Hexagonal socket
SYMBOLS
WARNING
The following show symbols used for the machine.
Be sure that you understand their meaning before
use.
WR36DA / WR36DB
: Cordless Impact Wrench
To reduce the risk of injury, user must read
instruction manual.
Only for EU countries
Do not dispose of electric tools together with
household waste material!
In observance of European Directive 2012/19/
EU on waste electrical and electronic equipment
and its implementation in accordance with
national law, electric tools that have reached
the end of their life must be collected separately
and returned to an environmentally compatible
recycling facility.
Direct current
V Rated voltage
n
No-load speed
0
min Oscillation per minute
-1
Bpm Impact rate
Ordinary bolt
H
High tension bolt
O-ring
Pin
Hexagonal socket
Groove
Screw
Battery level indicator
switch
Battery level indicator
lamp
Display panel
Light section switch
Light indicator lamp
Tightening mode
selector switch
Tightening mode
indicator lamp
Rubber cover
USB port
USB cable
11
Hm High mode
Mm Medium mode
L2m Low 2 mode
L1m Low 1 mode
MT Tightening torque (Maximum)
Square drive size
Weight*
(According to EPTA-Procedure 01/2014)
kg
Switching ON
Switching OFF
Disconnect the battery
Light section switch
Always ON (turn off after 2 minute)
Light only SW-ON
Always OFF
Clockwise rotation
Counterclockwise rotation
Remaining battery indicator switch
Lights ;
The battery remaining power is over 75%
Lights ;
The battery remaining power is 50% – 75%.
Lights ;
The battery remaining power is 25% – 50%.
Lights ;
The battery remaining power is less than 25%
Blinks ;
The battery remaining power is nearly empty.
Recharge the battery soonest possible.
Blinks ;
Output suspended due to high temperature.
Remove the battery from the tool and allow it to
fully cool down.
Blinks ;
Output suspended due to failure or malfunction.
The problem may be the battery so please
contact your dealer.
Tightening mode selector switch
Tightening mode indicator lamp
