X-LINE XW-5
Ø 3 mm
Ø 6 mm
Stein
Pietra
Stone
Pierre
Piedra
Steen

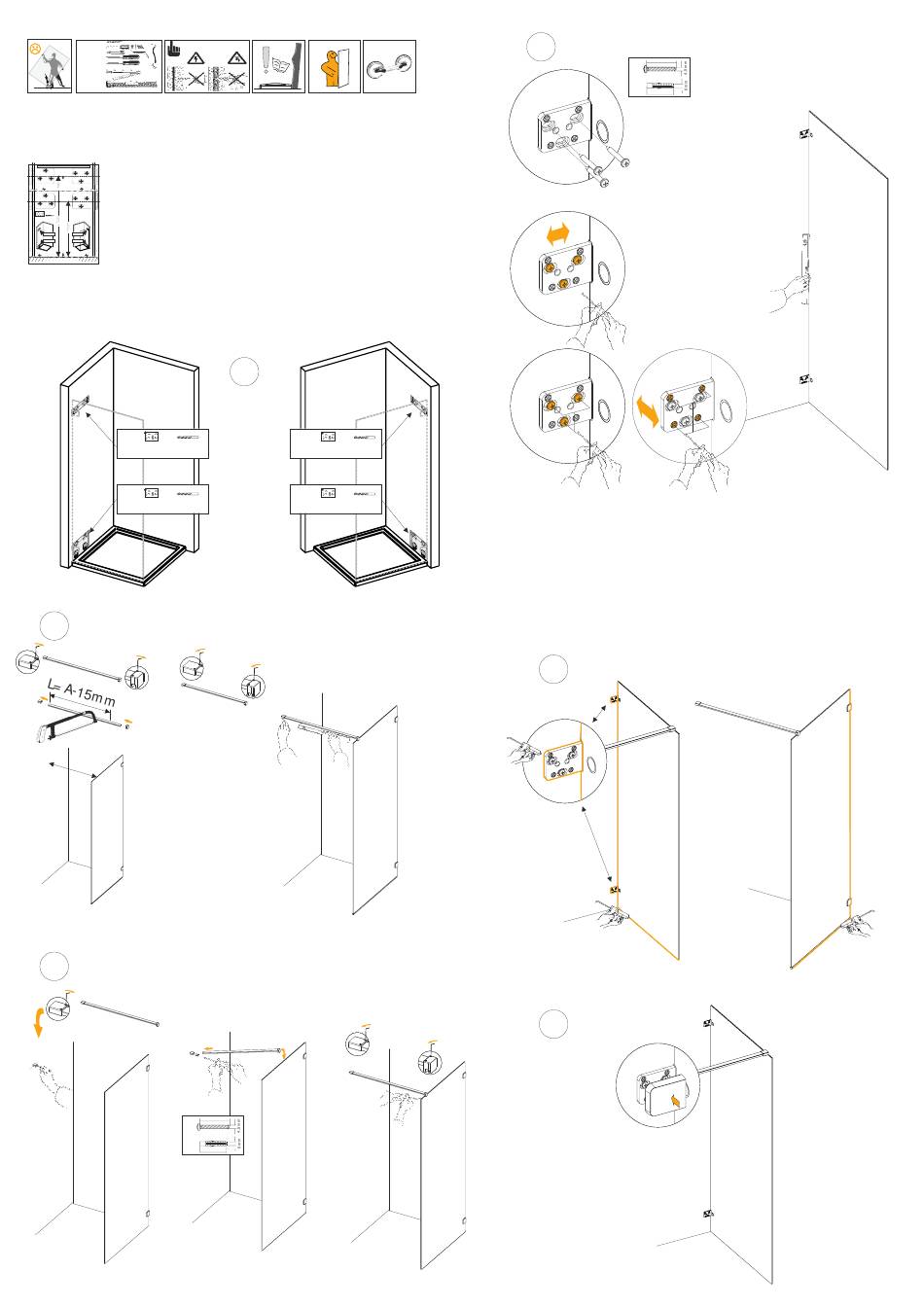

Montagemasse / Bohrschablone:
- Duschtasse: 10 mm von Tassenrand einrücken,
wie auf Bohrschablone angegeben
- Höhenangaben auf Bohrschablone befolgen und Schablone posizionieren
- Achtung es wird immer linkes und rechtes Modell gezeigt
BOHRSCHABLONE DIMA DI FORATURA DRILLING TEMPLATE
(bei Unklarheiten mit Duschelement überprüfen)
oben
sopra
top
- Fliesenfuge: Glas ist gleich Montagemaß und es entfällt der 10 mm Rücksprung
Misure Montaggio /Dima di foratura:
Ø 6 mm
- Piatto doccia: rientrare con il box doccia di 10 millimetri dal bordo esterno come indicato sulla dima
- Rispettare le informazioni dell'altezza indicate sulla dima di foratura e posizionare la dima
LX
RX
sopra top oben
sopra top oben
- Attenzione, è sempre visualizzato il modello sinistro e destro
LX
RX
unten sotto bottom
unten sotto bottom
(In caso di incertezze controllare con l'indicazione del box doccia R=right L=left)
unten
sotto
bottom
- Zona piastrellata: il vetro indica la misura montaggio ed elimina i 10 millimetri di
Duschtasse - piatto doccia - showertray
rientranza del box doccia
Assembly instructions / drilling template:
- Shower tray: Drilling template to position10mm inside tray edge
- Carefully measure hinge heights from tray surface and position template
- Use always left (LX) / right (RX) template as required by installation (before drilling, check hinge positions)
- Tile joint/ Wetroom: for wetroom installations, align hinges as required to floor / wall boundaries
(10 mm inset may be ignored)
LX
3 X
Ø 6 mm
sopra top oben
LX
Ø 6 mm
3 X
unten sotto bottom
3
A
4
2 x
2 x
1
RX
Ø 6 mm
3 X
sopra top oben
RX
Ø 6 mm
3 X
unten sotto bottom
35mm
30mm
2
35mm
6 x
6 x
30mm
4X
3X
5
Innen
interno
inside
6
Aussen
esterno
outside
