LAUNCH Creader Elite V2.0 Schnellstartanleitung Seite 2

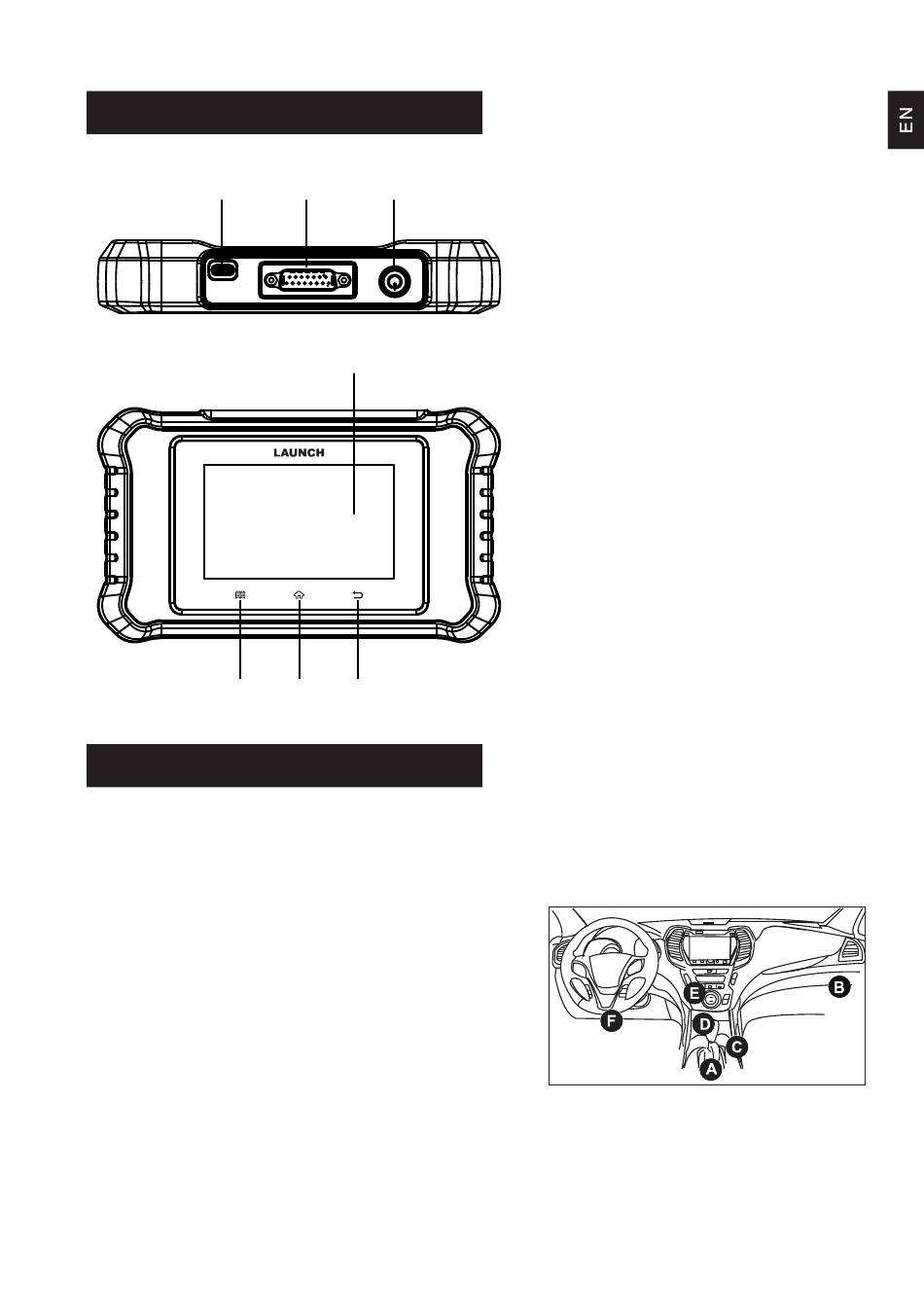

Components & Controls
1
7
Powering Up
The tool can receive power via either of the following ways:
Method 1: Via Diagnostic Cable
Insert one end of the diagnostic cable
into the DB-15 connector of the tool, and
the other end to the vehicle's DLC.
*Note: The
DLC
is
usually
located
12

inches
from the
center
of
the
instrument

panel (dash), under
or
around
the

driver's
side
for most
vehicles. See
diagram for possible DLC location.
Method 2: Via Data Cable
Connect one end of data cable (not included) to charging port of the tool,
and the other end to the PC.
2 3
4
6 5
1. Charging Port
2. Diagnostic Connector
3. Power Button
4. Touch Screen
5. Return Button
6. Home Button
7. Settings Button
