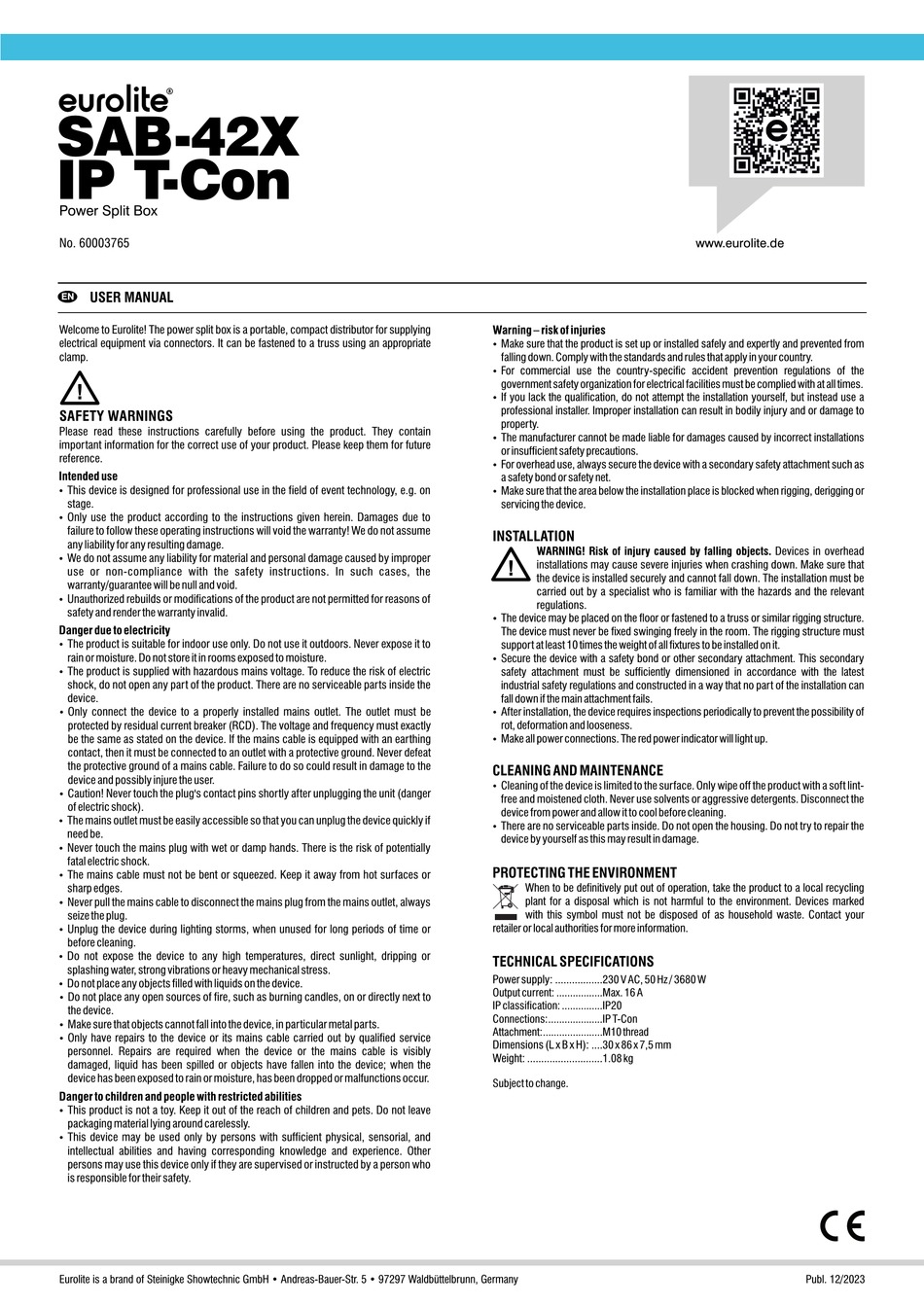

SAB-42X
IP T-Con
Power Split Box
No. 60003765
USER MANUAL
EN
Welcome to Eurolite! The power split box is a portable, compact distributor for supplying
electrical equipment via connectors. It can be fastened to a truss using an appropriate
clamp.
SAFETY WARNINGS
Please read these instructions carefully before using the product. They contain
important information for the correct use of your product. Please keep them for future
reference.
Intended use
This device is designed for professional use in the field of event technology, e.g. on
Ÿ
stage.
Only use the product according to the instructions given herein. Damages due to
Ÿ
failure to follow these operating instructions will void the warranty! We do not assume
any liability for any resulting damage.
We do not assume any liability for material and personal damage caused by improper
Ÿ
use or non-compliance with the safety instructions. In such cases, the
warranty/guarantee will be null and void.
Unauthorized rebuilds or modifications of the product are not permitted for reasons of
Ÿ
safety and render the warranty invalid.
Danger due to electricity
The product is suitable for indoor use only. Do not use it outdoors. Never expose it to
Ÿ
rain or moisture. Do not store it in rooms exposed to moisture.
The product is supplied with hazardous mains voltage. To reduce the risk of electric
Ÿ
shock, do not open any part of the product. There are no serviceable parts inside the
device.
Only connect the device to a properly installed mains outlet. The outlet must be
Ÿ
protected by residual current breaker (RCD). The voltage and frequency must exactly
be the same as stated on the device. If the mains cable is equipped with an earthing
contact, then it must be connected to an outlet with a protective ground. Never defeat
the protective ground of a mains cable. Failure to do so could result in damage to the
device and possibly injure the user.
Caution! Never touch the plug's contact pins shortly after unplugging the unit (danger
Ÿ
of electric shock).
The mains outlet must be easily accessible so that you can unplug the device quickly if
Ÿ
need be.
Never touch the mains plug with wet or damp hands. There is the risk of potentially
Ÿ
fatal electric shock.
The mains cable must not be bent or squeezed. Keep it away from hot surfaces or
Ÿ
sharp edges.
Never pull the mains cable to disconnect the mains plug from the mains outlet, always
Ÿ
seize the plug.
Unplug the device during lighting storms, when unused for long periods of time or
Ÿ
before cleaning.
Do not expose the device to any high temperatures, direct sunlight, dripping or
Ÿ
splashing water, strong vibrations or heavy mechanical stress.
Do not place any objects filled with liquids on the device.
Ÿ
Do not place any open sources of fire, such as burning candles, on or directly next to
Ÿ
the device.
Make sure that objects cannot fall into the device, in particular metal parts.
Ÿ
Only have repairs to the device or its mains cable carried out by qualified service
Ÿ
personnel. Repairs are required when the device or the mains cable is visibly
damaged, liquid has been spilled or objects have fallen into the device; when the
device has been exposed to rain or moisture, has been dropped or malfunctions occur.
Danger to children and people with restricted abilities
This product is not a toy. Keep it out of the reach of children and pets. Do not leave
Ÿ
packaging material lying around carelessly.
This device may be used only by persons with sufficient physical, sensorial, and
Ÿ
intellectual abilities and having corresponding knowledge and experience. Other
persons may use this device only if they are supervised or instructed by a person who
is responsible for their safety.
Eurolite is a brand of Steinigke Showtechnic GmbH • Andreas-Bauer-Str. 5 • 97297 Waldbüttelbrunn, Germany
Warning – risk of injuries
Make sure that the product is set up or installed safely and expertly and prevented from
Ÿ
falling down. Comply with the standards and rules that apply in your country.
For commercial use the country-specific accident prevention regulations of the
Ÿ
government safety organization for electrical facilities must be complied with at all times.
If you lack the qualification, do not attempt the installation yourself, but instead use a
Ÿ
professional installer. Improper installation can result in bodily injury and or damage to
property.
The manufacturer cannot be made liable for damages caused by incorrect installations
Ÿ
or insufficient safety precautions.
For overhead use, always secure the device with a secondary safety attachment such as
Ÿ
a safety bond or safety net.
Make sure that the area below the installation place is blocked when rigging, derigging or
Ÿ
servicing the device.
INSTALLATION
WARNING! Risk of injury caused by falling objects. Devices in overhead
installations may cause severe injuries when crashing down. Make sure that
the device is installed securely and cannot fall down. The installation must be
carried out by a specialist who is familiar with the hazards and the relevant
regulations.
The device may be placed on the floor or fastened to a truss or similar rigging structure.
Ÿ
The device must never be fixed swinging freely in the room. The rigging structure must
support at least 10 times the weight of all fixtures to be installed on it.
Secure the device with a safety bond or other secondary attachment. This secondary
Ÿ
safety attachment must be sufficiently dimensioned in accordance with the latest
industrial safety regulations and constructed in a way that no part of the installation can
fall down if the main attachment fails.
After installation, the device requires inspections periodically to prevent the possibility of
Ÿ
rot, deformation and looseness.
Make all power connections. The red power indicator will light up.
Ÿ
CLEANING AND MAINTENANCE
Cleaning of the device is limited to the surface. Only wipe off the product with a soft lint-
Ÿ
free and moistened cloth. Never use solvents or aggressive detergents. Disconnect the
device from power and allow it to cool before cleaning.
There are no serviceable parts inside. Do not open the housing. Do not try to repair the
Ÿ
device by yourself as this may result in damage.
PROTECTING THE ENVIRONMENT
When to be definitively put out of operation, take the product to a local recycling
plant for a disposal which is not harmful to the environment. Devices marked
with this symbol must not be disposed of as household waste. Contact your
retailer or local authorities for more information.
TECHNICAL SPECIFICATIONS
Power supply: ................. 230 V AC, 50 Hz / 3680 W
Output current: .................Max. 16 A
IP classification: ...............IP20
Connections:....................IP T-Con
Attachment:......................M10 thread
Dimensions (L x B x H): .... 30 x 86 x 7,5 mm
Weight: ........................... 1.08 kg
Subject to change.
www.eurolite.de
Publ. 12/2023
