1 Technical Parameters:
1．1 Input Voltage: 207～253V AC (50Hz)
1．2 Output Voltage：0-30V DC，Output Current: 0-5A DC
USB port output voltage: DC 5V/2A(MAX)
1．3 Line regulation:
1．4 Load regulation:
1．5 Ripple and noise: CV≤5mVr.m.s
1．6 Protection: Short circuit, Over temperature and Over
load protection
1．7 Voltage indication accuracy: LED±0.5％＋5 digits
1．8 Current indication accuracy: LED±0.5％＋5 digits
1．9 Environment: 0~＋40

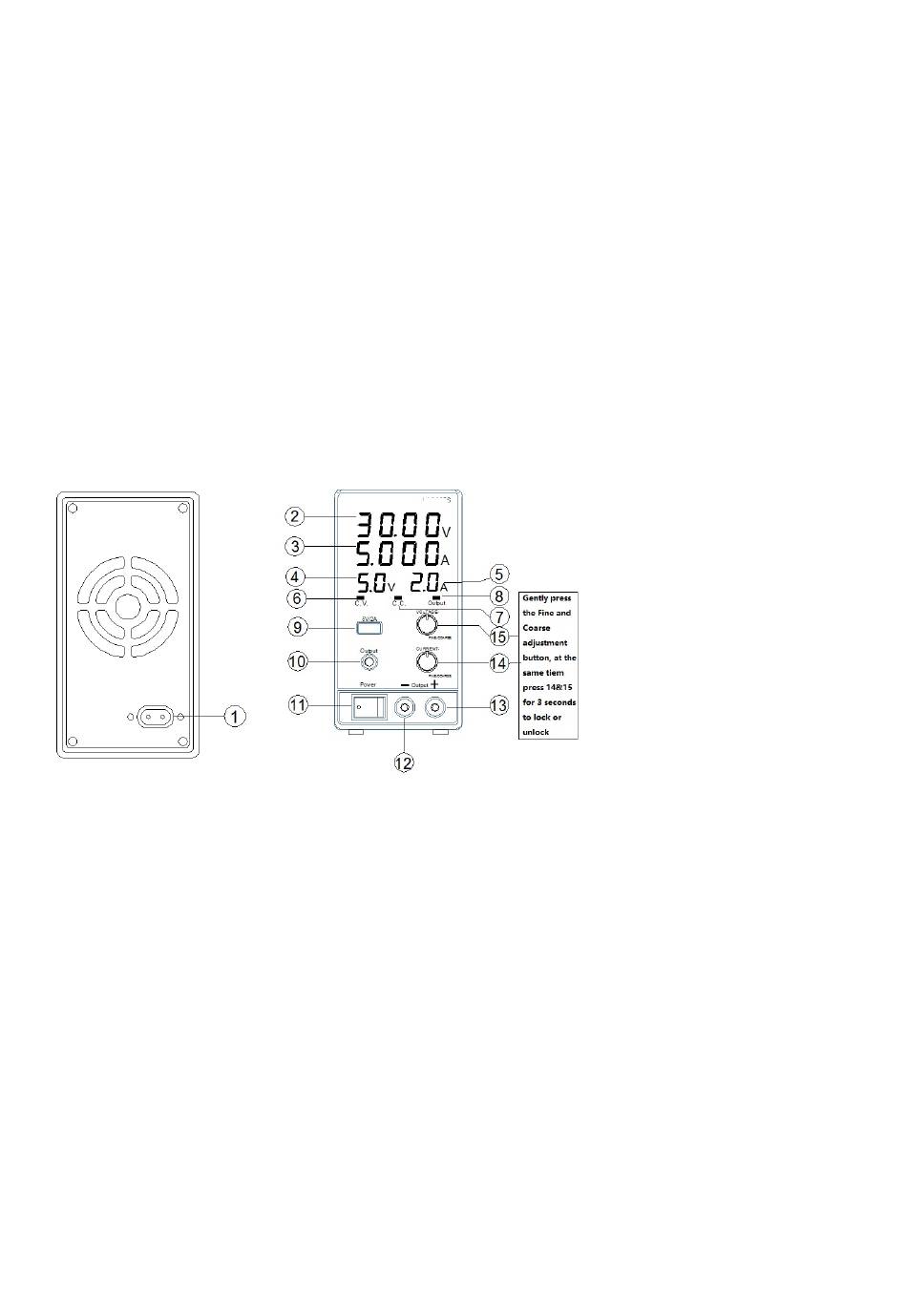

2.1 Controls and indicators:

① AC Input Socket
② Output voltage value display
③ Output current value display
④ USB output voltage value display
⑤ USB output current value display
⑥ CV--constant voltage status indicator
⑦ CC--constant current status indicator
⑧ OUTPUT—output status indicator
⑨ USB interface
⑩ OUTPUT output switch button
⑪ Power switch
⑫ Output Terminal Negative（-）Black color.
⑬ Output Terminal Positive（+）Red color
⑭ Current set value adjustment knob, current fine and coarse adjustment switch button
⑮ Voltage set value adjustment knob, voltage fine and coarse adjustment switch button
CV≤0.1%+3mV
CV≤0.1%+10mV
0 C relative humidity＜90％
CC≤0.2%+5mA
CC≤0.5%+10mA
CC≤20mAr.m.s
