ECCENTRIC FLARING TOOL
Side
Bar

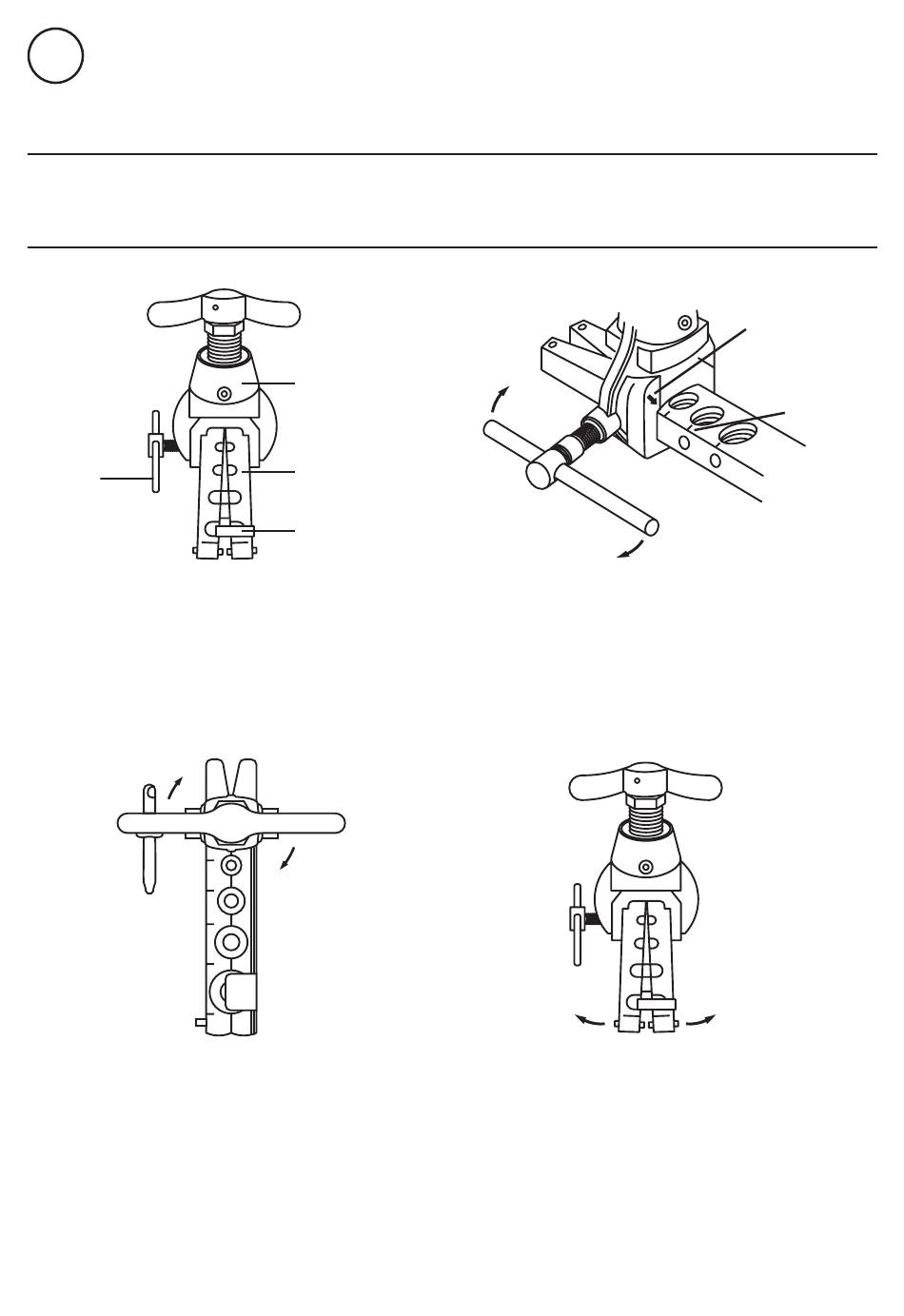

01. Use a reamer to clean the tube. Insert
the tube to the appropriate hole. Slide
the Tube Positioning Plate to the hole
and make sure the tube touches the
Device lightly. Then slide the Yoke to
the top of the tube.
03. Flare the Copper Tube by turning the
Handle on top of the Yoke clockwise
until the Yoke auto-slip. It means the
Flaring is done.
NOTE:
After several uses clean off any debris. Also, use lubricant at the thread to lubricate, and prevent
rust for longer lifespan.
Yoke
Bar
Tube
Positioning
Plate
02. Line up the Arrow Indicator on the
04. Turn the Handle on top of the Yoke
2
Yoke with the Indicator on the bar.
Then tighten the side bar on the Yoke.
counter-clockwise. Then release the
side bar to move the Yoke to the back.
Open the Bar to remove the flared tube.
Arrow Indicator
Indicator
