USE NOTES / FUNCTIONS

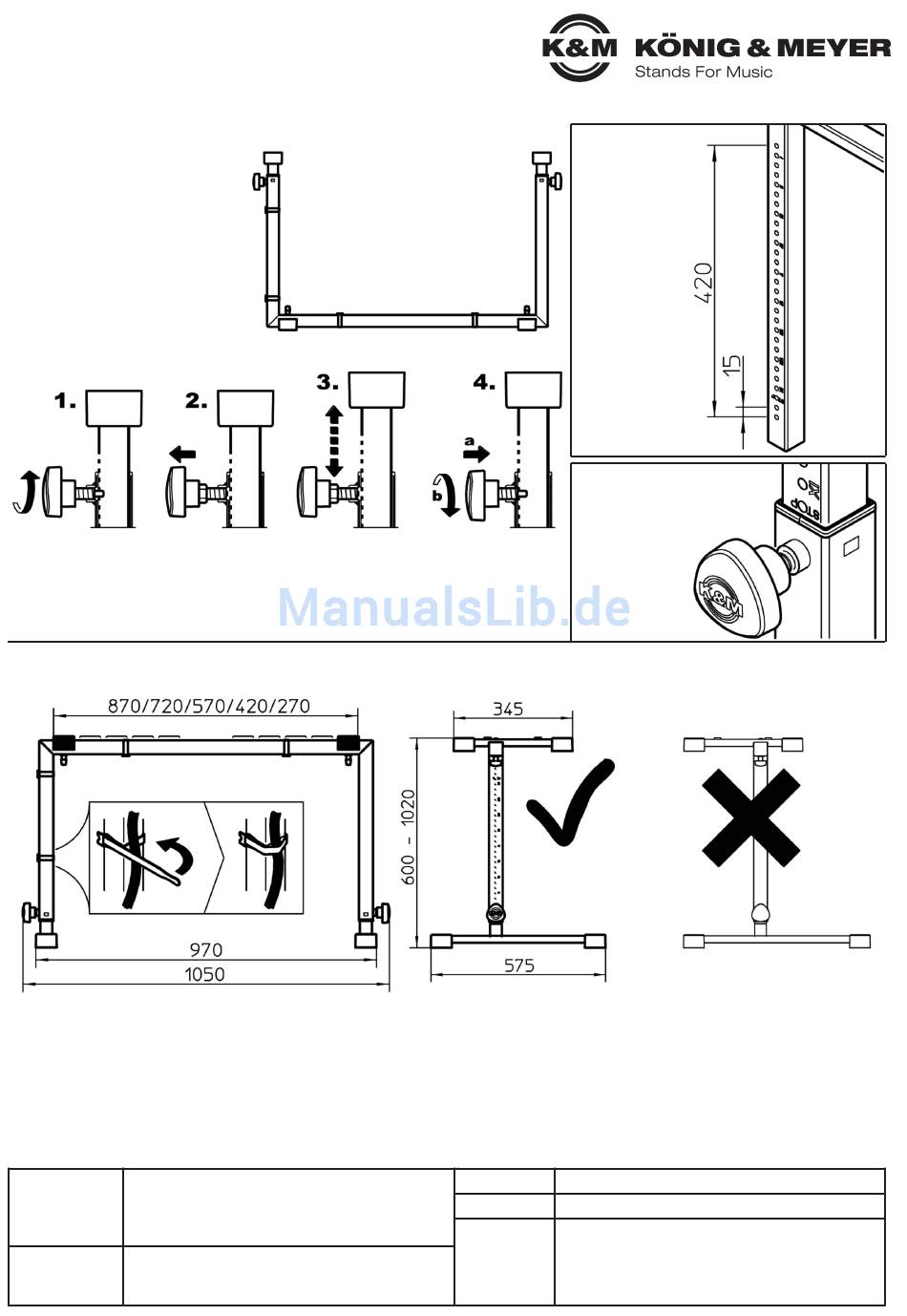

HEIGHT ADJUSTMENT
PROCEDURE
Turn the keyboard table around
and upside
- Hold one leg frame
- Adjust following instructions
in Figs. 1-4
-
- Repeat for the second leg frame
Loosen the
Pull the knob until
locking knob
the safety pin is
retracted and the
leg frame free
DIMENSIONS
CHECKS, MAINTENANCE, CLEANING
- Ensure the keyboard stand is on level ground for maintenance work and be aware of potential hazards
- Use a non-scouring cleaning formula and preferably a slightly damp cloth for cleaning
(FF) FAULT FINDING and (R) REPAIR
FF: Keyboard table wobbles
FF: Keyboard table stands at an angle R: Set the leg frames to the same height (same marking).
TECHNICAL DATA / SPECIFICATIONS
Base components: tubes, screws, discs -
steel powder coated/zinc plated/nickel plated,
Materials
black
Plastic components - PA, TPE, black
Outer: W x D x H - 1050 x 470 x 606-1026 mm
Dimensions
Support arms: W x D - 270/420/570/720/870 x
345 mm
Slide the
Return the knob, making
leg up or
sure the safety pin has
down
engaged in the correct
hole, then re-tighten
the locking knob.
R: Re-tighten the screw connections and check the ground/make sure the ground is level.
The height of the
table can be
adjusted to 28
levels in 15 mm
stages.
The leg frame holes are
marked, making it much
easier to position the leg
fames at the same
height. The STOP
indicator shows
the maximum
pull-out length.
NOTE
The support arms must have the longer side
above the longer side of the leg frames.
Weight
Net: 8.5 kg
Packing
One carton: L x W x H - 960 x 630 x 59 mm
18813 Add-On for a Second Keyboard or Laptop;
Accessories
18814 Adapter to mount the:
(optional)
18956 Microphone Boom or18958 Sheet Music Holder;
18815 Side Laptop Holder
