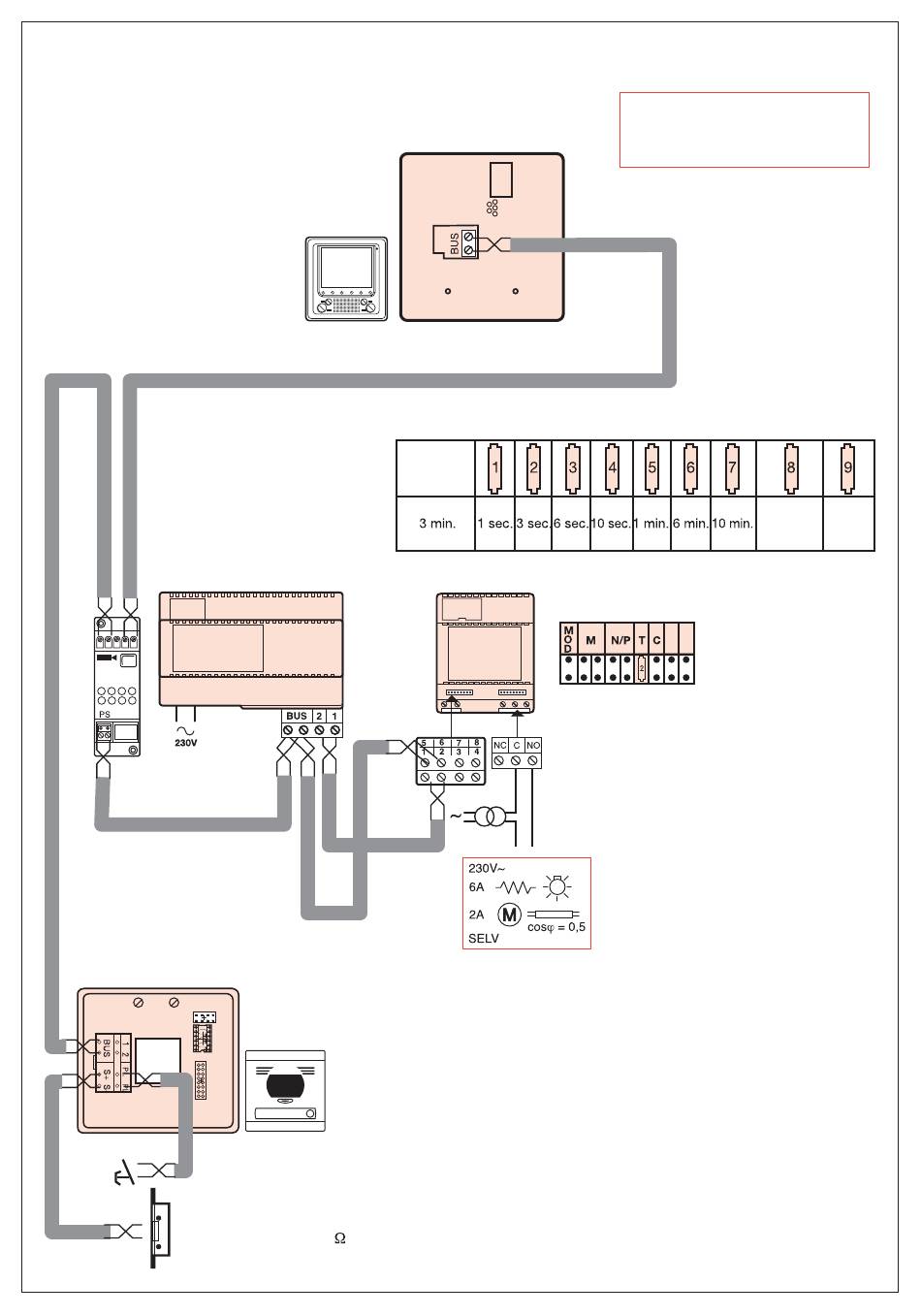

Wiring diagram with automatic main door relay or other device (Ref 634 31)
S- S+
12Vcc250mA (max. 30 )
T = Timing dry relay contacts
Without
configurator
35
Switch the power supply OFF
for 1 minute for every change of
confi guration
Works
as a push
button
ON/OFF
cycle
