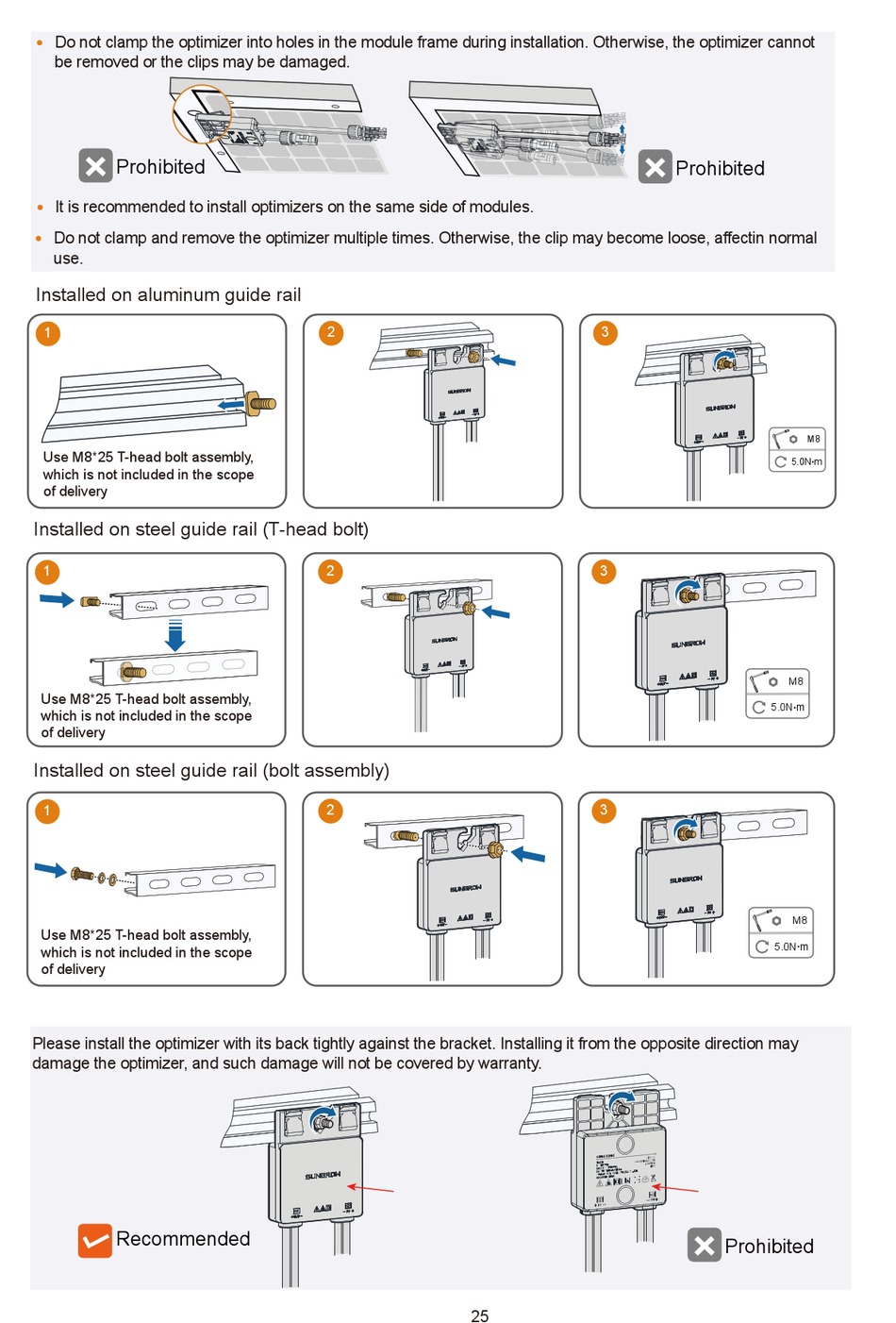

Sungrow Optimizer Schnellstartanleitung Seite 26

Do not clamp the optimizer into holes in the module frame during installation. Otherwise, the optimizer cannot

be removed or the clips may be damaged.
Prohibited
It is recommended to install optimizers on the same side of modules.

Do not clamp and remove the optimizer multiple times. Otherwise, the clip may become loose, affectin normal

use.
Installed on aluminum guide rail
1
Use M8*25 T-head bolt assembly,
which is not included in the scope
of delivery
Installed on steel guide rail (T-head bolt)
1
Use M8*25 T-head bolt assembly,
which is not included in the scope
of delivery
Installed on steel guide rail (bolt assembly)
1
Use M8*25 T-head bolt assembly,
which is not included in the scope
of delivery
Please install the optimizer with its back tightly against the bracket. Installing it from the opposite direction may
damage the optimizer, and such damage will not be covered by warranty.
Recommended
2
2
2
25
Prohibited
3
3
3
Prohibited
M8
.
5.0N m
M8
.
5.0N m
M8
.
5.0N m
