Open-end wrench kit

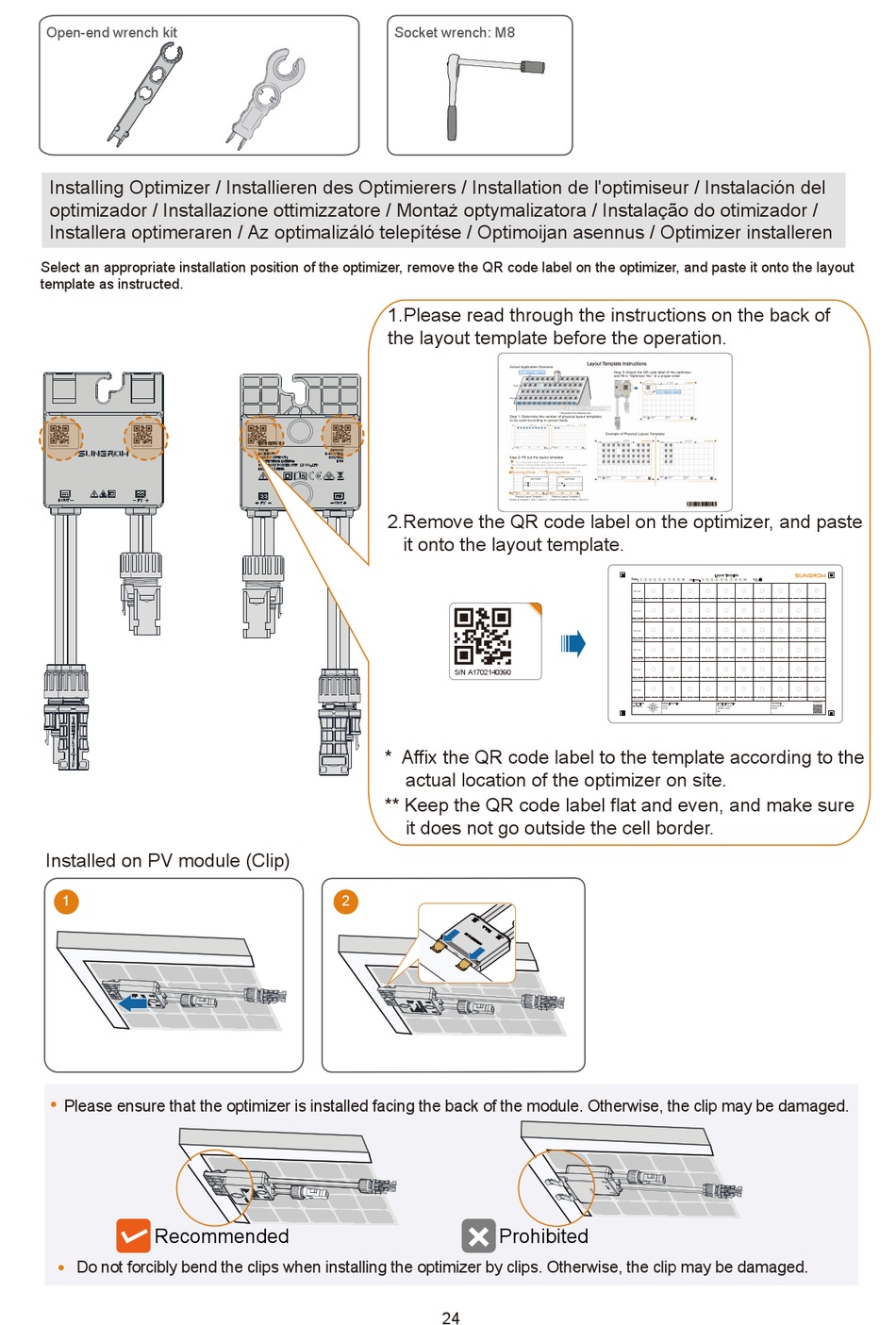

Installing Optimizer / Installieren des Optimierers / Installation de l'optimiseur / Instalación del
optimizador / Installazione ottimizzatore / Montaż optymalizatora / Instalação do otimizador /
Installera optimeraren / Az optimalizáló telepítése / Optimoijan asennus / Optimizer installeren
Select an appropriate installation position of the optimizer, remove the QR code label on the optimizer, and paste it onto the layout
template as instructed.
S/N A1702140390 S/N A1702140390
Installed on PV module (Clip)
1
Please ensure that the optimizer is installed facing the back of the module. Otherwise, the clip may be damaged.

Recommended
Do not forcibly bend the clips when installing the optimizer by clips. Otherwise, the clip may be damaged.

Socket wrench: M8
1.Please read through the instructions on the back of
the layout template before the operation.
S/N A1702140390
S/N A1702140390
2.Remove the QR code label on the optimizer, and paste
it onto the layout template.
* Affix the QR code label to the template according to the
actual location of the optimizer on site.
** Keep the QR code label flat and even, and make sure
it does not go outside the cell border.
2
S/N A1702140390
Prohibited
24
Layout Template
Row: Column: e.g.
QR code
Optimizer No.
QR code
Optimizer No.
QR code
Optimizer No.
QR code
Optimizer No.
QR code
Optimizer No.
QR code
Optimizer No.
Paint black Owner Information Installer Information PV Panels
for North Name: Company name: Manufacturer:
Email: Installer name: Model:
Tel:
Guidance
