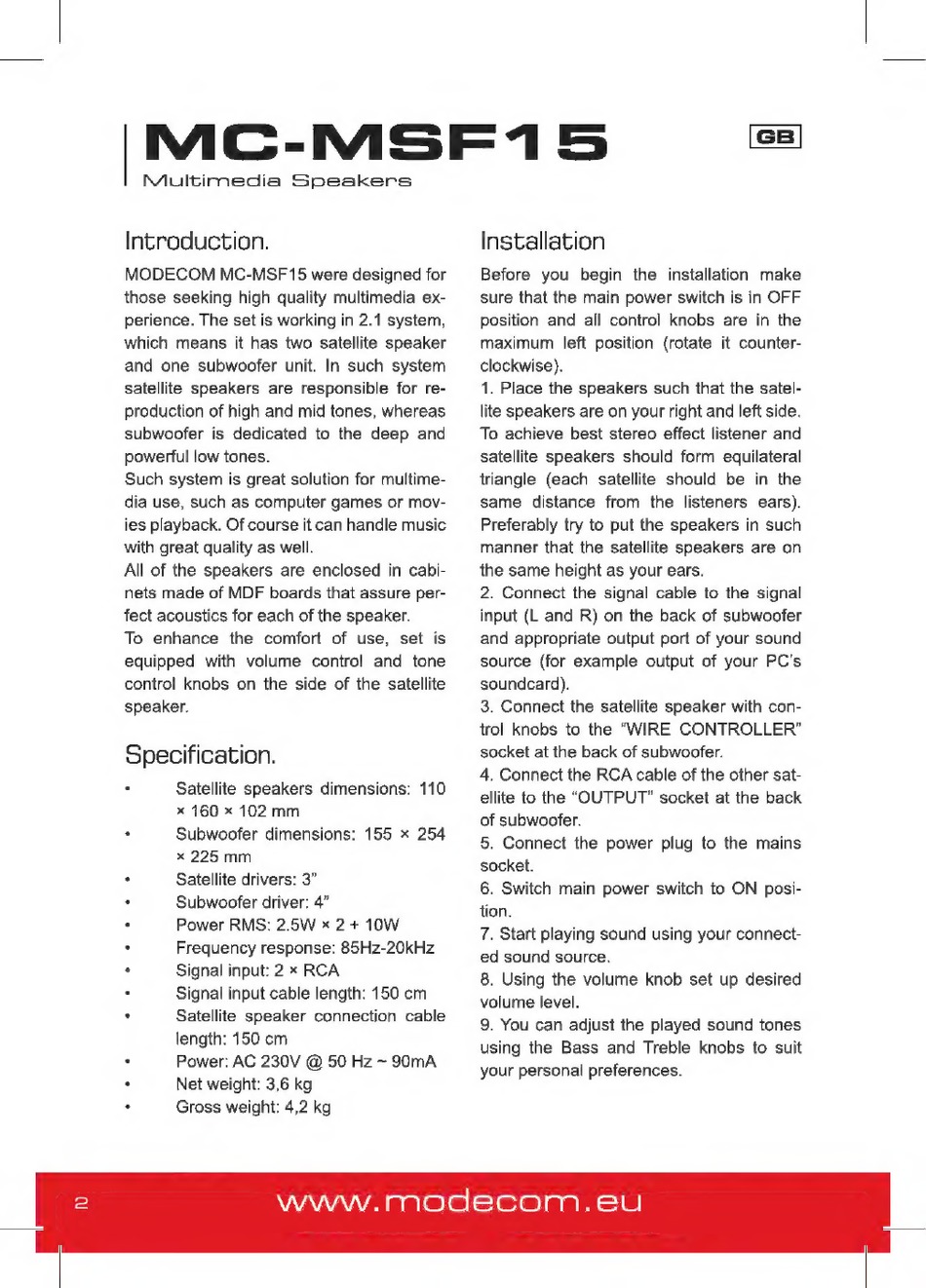

|MC-MSF1
5
Multimedia
Speakers
Introduction.
MODECOM MC-MSF15 were designed for
those seeking high quality multimedia ex-
perience. The set is working in 2.1 system,
which means
it has two satellite speaker
and one subwoofer unit. In such system
satellite speakers are responsible for re-
production of high and mid tones, whereas
subwoofer is dedicated to the deep and
powerful low tones.
Such system is great solution for multime-
dia use, such as computer games or mov-
ies playback. Of course it can handle music
with great quality as well.
All of the speakers are enclosed in cabi-
nets made of MDF boards that assure per-
fect acoustics for each of the speaker.
To enhance
the comfort of use, set is
equipped
with volume
control
and
tone
control knobs on the side of the satellite
speaker.
Specification.
.
Satellite speakers dimensions:
110
x 160 x 102 mm
.
Subwoofer dimensions:
155 x 254
x 225 mm
.
Satellite drivers: 3"
.
Subwoofer driver: 4"
.
Power RMS: 2.5W x 2 + 10W
.
Freguency response: 85Hz-20kHz
.
Signal input: 2 x RCA
.
Signal input cable length: 150 cm
.
Satellite speaker connection cable
length: 150 cm
.
Power: AC 230V © 50 Hz ~ 90mA
.
Net weight: 3,6 kg
.
Gross weight: 4,2 kg
Installation
Before
you
begin
the installation
make
sure that the main power switch is in OFF
position and all control knobs are in the
maximum
left position (rotate it counter-
clockwise).
1. Place the speakers such that the satel-
lite speakers are on your right and left side.
To achieve best stereo effect listener and
satellite speakers should form equilateral
triangle (each satellite should
be in the
same
distance from the listeners ears).
Preferably try to put the speakers in such
manner that the satellite speakers are on
the same height as your ears.
2. Connect the signal cable to the signal
input (L and R) on the back of subwoofer
and appropriate output port of your sound
source (for example output of your PC's
soundcard).
3. Connect the satellite speaker with con-
trol knobs to the "WIRE CONTROLLER"
socket at the back of subwoofer.
4. Connect the RCA cable of the other sat-
ellite to the "OUTPUT" socket at the back
of subwoofer.
5. Connect the power plug to the mains
socket.
6. Switch main power switch to ON posi-
tion.
7. Start playing sound using your connect-
ed sound source.
8. Using the volume knob set up desired
volume level.
9. You can adjust the played sound tones
using the Bass and Treble knobs to suit
your personal preferences.
www.modecom.eu
