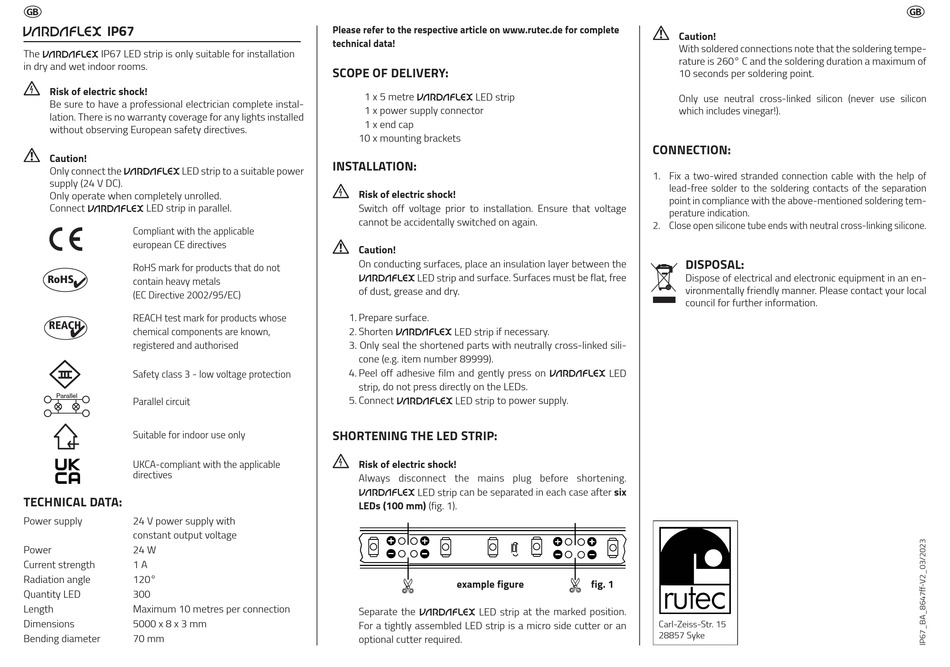

RUTEC VARDAFLEX IP67 Kurzanleitung Seite 2

G
IP67
The IP67 LED strip is only suitable for installa tion
in dry and wet indoor rooms.
Risk of electric shock!
Be sure to have a professional electrician complete instal-
lation. There is no warranty coverage for any lights installed
without observing European safety directives.
Caution!
Only connect the LED strip to a suitable power
supply (24 V DC).
Only operate when completely unrolled.
Connect LED strip in parallel.
Compliant with the applicable
european CE directives
RoHS mark for products that do not
contain heavy metals
(EC Directive 2002/95/EC)
REACH test mark for products whose
chemical components are known,
registered and authorised
Safety class 3 - low voltage protection
Parallel
Parallel circuit
Suitable for indoor use only
UKCA-compliant with the applicable
directives
TECHNICAL DATA:
Power supply 24 V power supply with
constant output voltage
Power 24 W
Current strength 1 A
Radiation angle 120°
Quantity LED 300
Length Maximum 10 metres per connection
Dimensions 5000 x 8 x 3 mm
Bending diameter 70 mm
Please refer to the respective article on www.rutec.de for complete
technical data!
SCOPE OF DELIVERY:
01 x 5 metre LED strip
01 x power supply connector
01 x end cap
10 x mounting brackets
INSTALLATION:
Risk of electric shock!
Switch off voltage prior to installation. Ensure that voltage
cannot be accidentally switched on again.
Caution!
On conducting surfaces, place an insulation layer between the
LED strip and surface. Surfaces must be flat, free
of dust, grease and dry.
1. Prepare surface.
2. Shorten LED strip if necessary.
3. Only seal the shortened parts with neutrally cross-linked sili-
cone (e.g. item number 89999).
4. Peel off adhesive film and gently press on
strip, do not press directly on the LEDs.
5. Connect LED strip to power supply.
SHORTENING THE LED STRIP:
Risk of electric shock!
Always disconnect the mains plug before shortening.
LED strip can be separated in each case after six
LEDs (100 mm) (fig. 1).
example figure
Separate the LED strip at the marked position.
For a tightly assembled LED strip is a micro side cutter or an
optional cutter required.
Caution!
With soldered connections note that the soldering tempe-
rature is 260° C and the soldering duration a maximum of
10 seconds per soldering point.
Only use neutral cross-linked silicon (never use silicon
which includes vinegar!).
CONNECTION:
1. Fix a two-wired stranded connection cable with the help of
lead-free solder to the soldering contacts of the separation
point in compliance with the above-mentioned soldering tem-
perature indication.
2. Close open silicone tube ends with neutral cross-linking silicone.
DISPOSAL:
Dispose of electrical and electronic equipment in an en-
vironmentally friendly manner. Please contact your local
council for further information.
LED
fig. 1
Carl-Zeiss-Str. 15
28857 Syke
