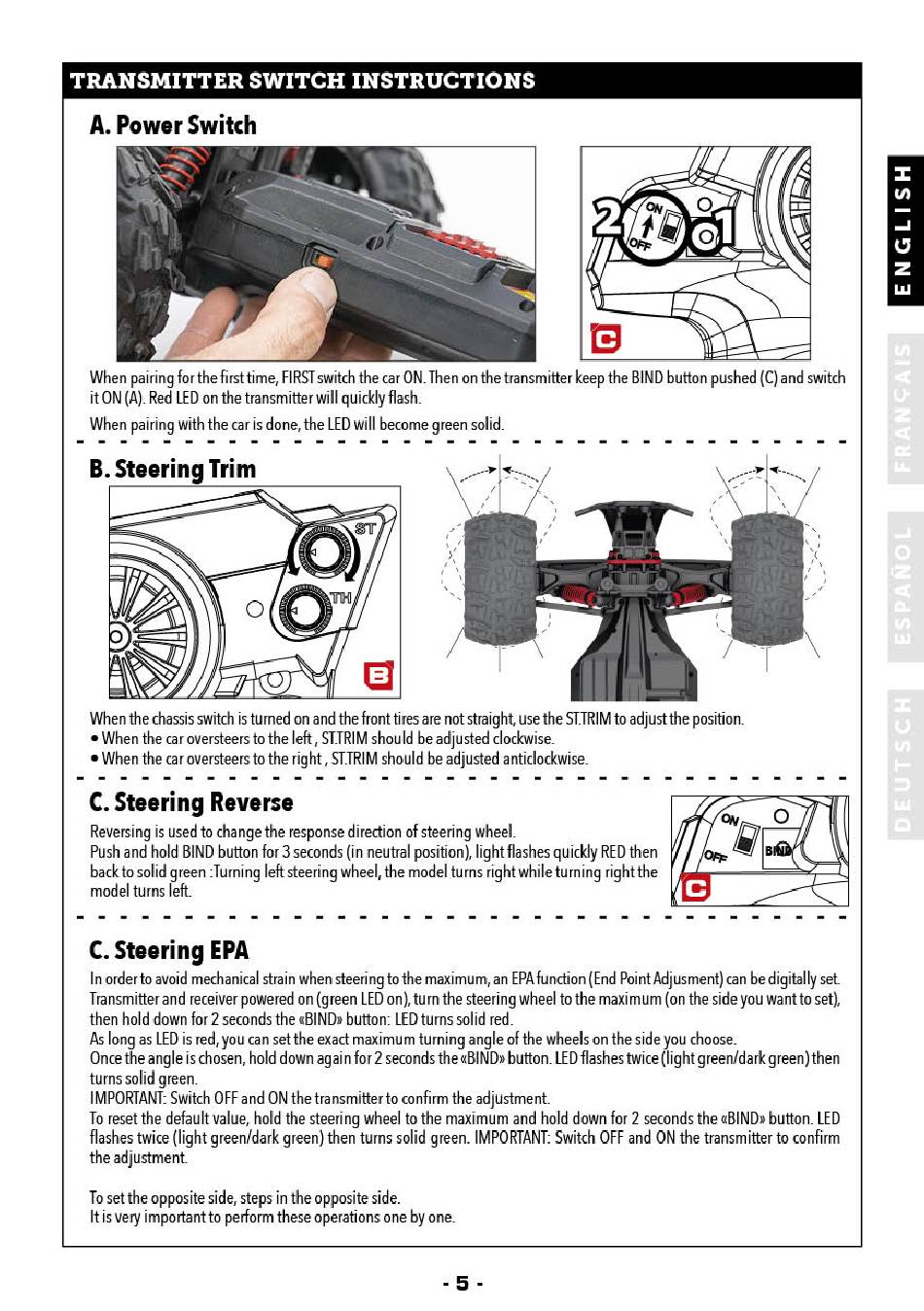

TRANSMITTER SWITCH INSTRUCTIONS
A. Power Switch
When pairing forthefirsttime, F IRST switch t hecarON. Then onthetransmitter keep theBIND button pushed ( C) a ndswitch
it ON(A).Red LED onthe transmitter w ill quickly flash.
Whenpairingwiththecarisdone,the LED will become greensolid-
B.Steering Trim
o
When thechassis s witch isturned on andthefronttiresarenotstraight, usetheSTIRIM toadjust t heposition.
• Whenthe caroversteers to theleft, ST-TRIM shouldbeadjusted clockwise-
• When thecar o versteers totheright,ST.TRIM should beadjusted a nticlockwise_
C.SteeringReverse
Reversin g isused tochange t heresponse direction o fsteering w heel.
PushandholdBIND buttonfor3 seconds ( in neutral p osition), l ightflashes quicklyRED then
back tosolid green :Turning l eftsteering w heel, themodel t urnsright w hile turning rightthe
model turns left
C.SteeringEPA
Inorderto avoid mechanical strain when steering tothemaximum, anEPA f unction ( End Point Adjusment) can bedigitally s et
Transmitter andreceiver p owered on(greenLED on),turnthesteering wheeltothemaximum (onthe sideyouwant t o set),
then hold down for 2 seconds the «BIND»button: LEDturns solid red_
AslongasLED isred, y oucan settheexact m aximum turning angle ofthewheels o nthesideyouchoose.
Once theangleischosen, holddownagainfor2seconds t he«BIND» b utton. L ED flashes twice(lightgreen/dark g reen) t hen
turnssolidgreen.
IMPORTA NT: Switch O FF a ndON thetransmitter toconfirm theadjustment
Toreset t hedefault value, h oldthesteering w heel t othemaximum andhold down for2 seconds the«BIND» button. L ED
flashes t wice (lightgreen/dark green) thenturnssolidgreen. I MPORTANT: Switch OFF andON thetransmitter toconfirm
theadjustment
Tosettheopposite s ide, s teps i ntheopposite s ide.
It isveryimportant t o perform these operations o nebyone.
-5-
