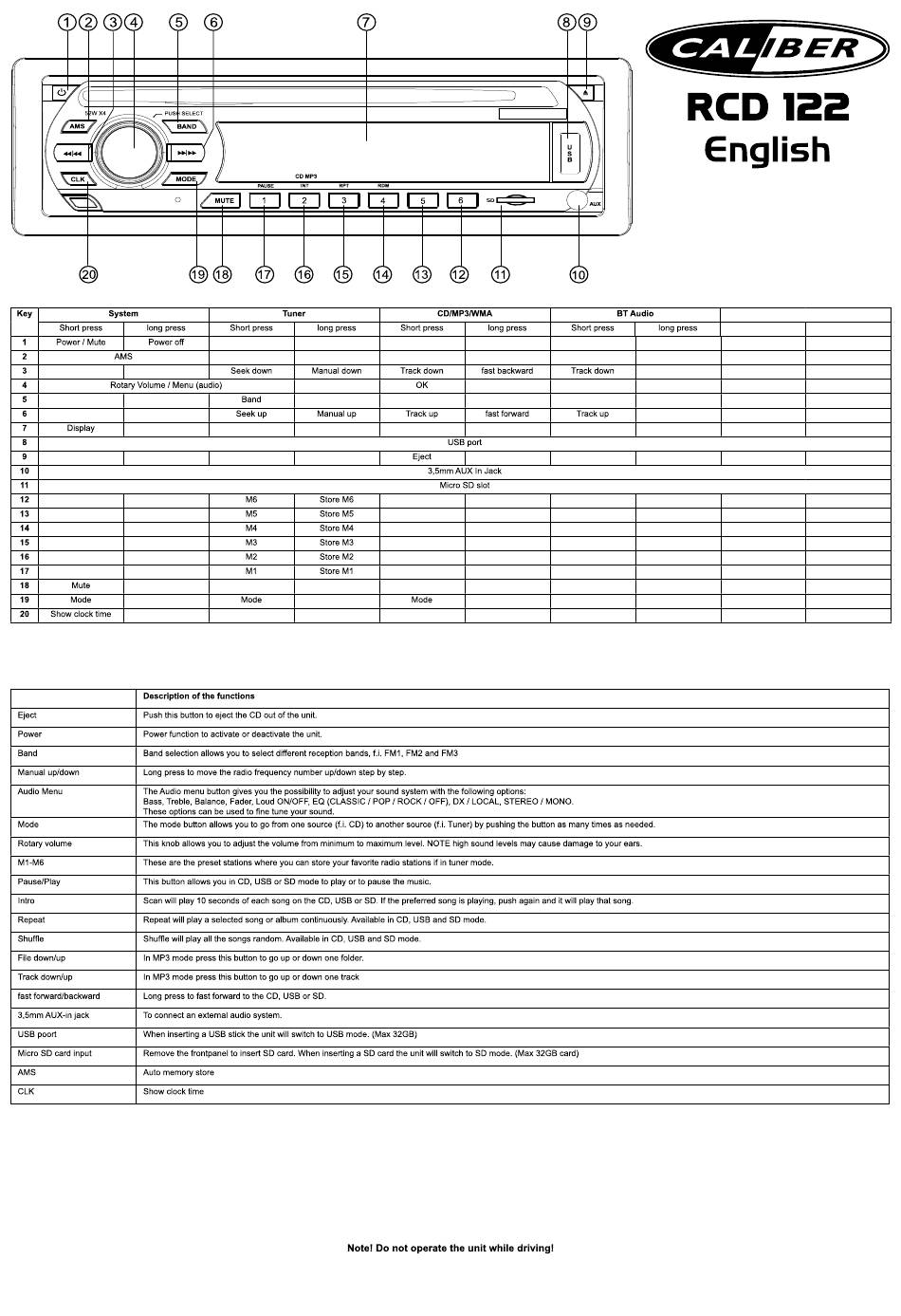

Caliber RCD 122 Kurzanleitung Seite 4

Key System
Short press long press
1 Power / Mute Power off
2 AMS
3
4 Rotary Volume / Menu (audio)
5
6
7 Display
8
9
10
11
12
13
14
15
16
17
18
Mute
19
Mode
20 Show clock time
Description of the functions
Eject Push this button to eject the CD out of the unit.
Power Power function to activate or deactivate the unit.
Band Band selection allows you to select different reception bands, f.i. FM1, FM2 and FM3
Manual up/down Long press to move the radio frequency number up/down step by step.
Audio Menu The Audio menu button gives you the possibility to adjust your sound system with the following options:
Bass, Treble, Balance, Fader, Loud ON/OFF, EQ (CLASSIC / POP / ROCK / OFF), DX / LOCAL, STEREO / MONO.
These options can be used to fine tune your sound.
Mode The mode button allows you to go from one source (f.i. CD) to another source (f.i. Tuner) by pushing the button as many times as needed.
Rotary volume This knob allows you to adjust the volume from minimum to maximum level. NOTE high sound levels may cause damage to your ears.
M1-M6 These are the preset stations where you can store your favorite radio stations if in tuner mode.
Pause/Play This button allows you in CD, USB or SD mode to play or to pause the music.
Intro Scan will play 10 seconds of each song on the CD, USB or SD. If the preferred song is playing, push again and it will play that song.
Repeat Repeat will play a selected song or album continuously. Available in CD, USB and SD mode.
Shuffle Shuffle will play all the songs random. Available in CD, USB and SD mode.
File down/up In MP3 mode press this button to go up or down one folder.
Track down/up In MP3 mode press this button to go up or down one track
fast forward/backward Long press to fast forward to the CD, USB or SD.
3,5mm AUX-in jack To connect an external audio system.
USB poort When inserting a USB stick the unit will switch to USB mode. (Max 32GB)
Micro SD card input Remove the frontpanel to insert SD card. When inserting a SD card the unit will switch to SD mode. (Max 32GB card)
AMS Auto memory store
CLK Show clock time
Tuner
Short press long press
Seek down Manual down
Band
Seek up Manual up
M6 Store M6
M5 Store M5
M4 Store M4
M3 Store M3
M2 Store M2
M1 Store M1
Mode
CD/MP3/WMA
Short press long press
Track down fast backward
OK
Track up fast forward
USB port
Eject
3,5mm AUX In Jack
Micro SD slot
Mode
BT Audio
Short press long press
Track down
Track up
