AC CURRENT CLAMP / English
Storage conditions
-22ºF to 140ºF (-30ºC to 60ºC); < 90% Relative Humidity
Altitude
Operate at less than 3000 meters
Weight
129g
Dimensions
111 x 50 x 33mm (HXWXD)
Standards
IEC1010-1 (1995); EN61010-1 (2001) Category II 600V, Category
III 300V
Range Specifications
Function
Range
AC Current (50/60Hz) 0~200A

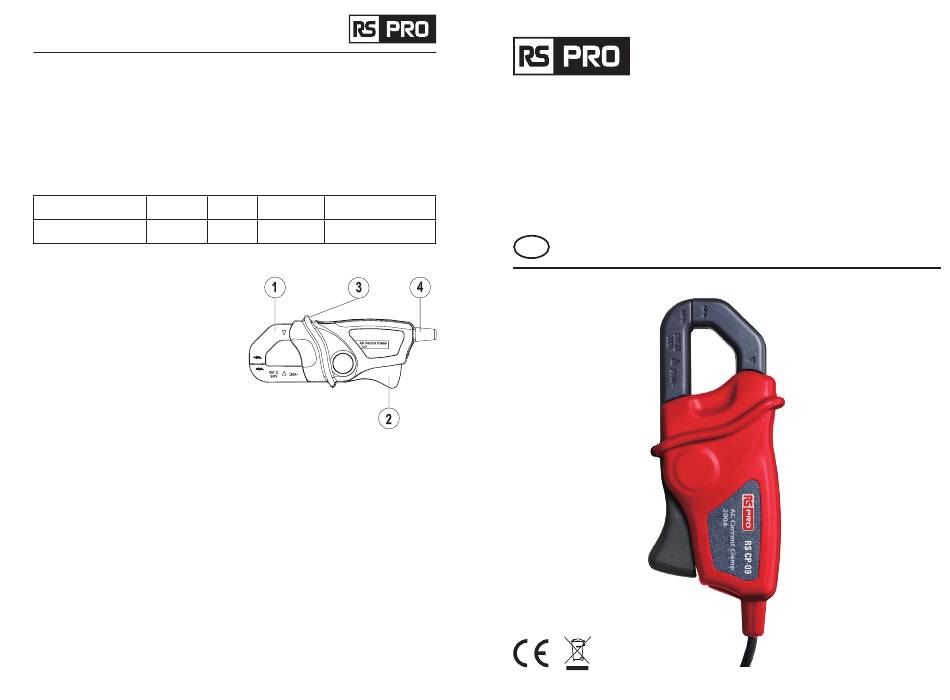

4. Adaptor Description
1. Current sense jaw
2. Clamp trigger
3. Safety barrier
4. Voltage output lead
5. Using the Current Clamp
To use the Current Clamp, follow these instructions:
• Connect the test leads to the output shock of the clamp probe and input shock of the
DMM (or other voltage measurement device).
• Turns on the DMM and set it at ACV 200mV or 400mV
• Position the Current Clamp perpendicular to and centered around the conductor.
• Read the measured value from the DMM LCD display.
Example with multimeter for the AC Current Clamp-on Adaptor
Current Clamp sensitivity = 1mV/A. Multimeter displays 100.0mV.
Actual current = display value / sensitivity Current Clamp=100.0mV/1mV/A=100.0A
2
Output
Sensitivity
Accuracy (of reading)
1mV/A
1A/mV AC
±2.0%±0.5A
Manuel d'instructions
RS CP-09
Numéro d'inventaire: 205-0094
PINCE DU COURANT ALTERNATIF
FR
