Introduction
The information contained in this section will instruct you
on the proper installation and set up of the controller and
wire harness.
REMEMBER
After the Spreader is installed on the
vehicle, the Pre-Delivery Check List and Delivery
Check List must be completed.
Tool List
Safety Goggles
Wire Crimp Tool
Utility Knife
Installation
Relay
Circuit
Breaker
Main Wire
Harness
Cable
Tie

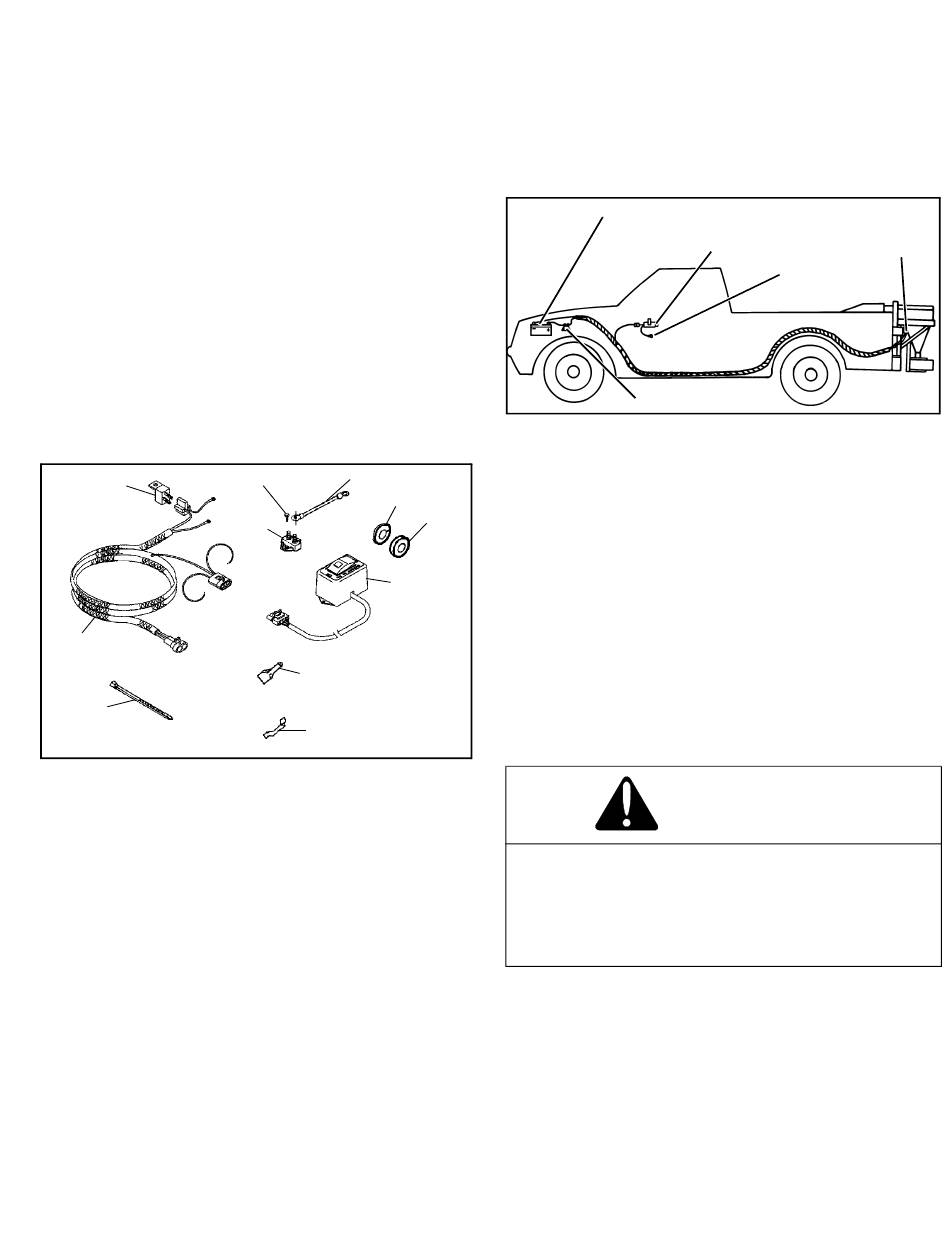

Figure 1-1
1. Locate the following parts:
• Controller
• Wire Harness, Main
• Circuit Breaker
• Fuse Tap
• Terminal, Female
• Grommet
• Neoprene Seal
• Red Wire, Short
• Cable Tie, Plastic
• Self Tapping Screw
• Relay, 70A
INSTALLATION
12 Volt Test Light
Drill
Drill Bit, 3/8"
Red Wire
Screw
Seal
Grommet
Controller
Terminal
Fuse
Tap
NOTE: Take the extra time needed to plan the routing of
the wiring harness before drilling any holes or fastening
the harness or control box in place. Read all the
instructions carefully to ensure all the required conditions
are met for a safe and professional installation.
BATTERY
CIRCUIT BREAKER
Figure 1-2
2. Uncoil the wiring harness and route the end of the
harness with the short red and black wires - with ring
terminals installed- from under the vehicle up into the
engine compartment on the battery side.
3. Position the red and black wires (with terminals) near
the battery and prepare to route the five foot section, with
connector, into the vehicle operator compartment area.
NOTE: The relay for the ON/OFF control is located in the
engine area and only requires a 3/8" hole for routing the
smaller power lead terminal into the cab.
4. Look for an existing hole, with rubber grommet, in the
vehicle firewall. The hole must be 3/8" or larger.
DO NOT drill any holes until a thorough visual
inspection is performed to determine that the
area around the hole to be drilled, on both sides
of the firewall, is clear of any obstacles such as
brake lines, linkage or vehicle wiring.
5. If an existing hole is not available, look for an area to
drill the hole that satisfies these conditions;
• Hole should be drilled on the same side of the vehicle
firewall (left or right) as the vehicle battery.
• DO NOT put a hole in such a spot that will force the
wiring harness, when installed, to interfere or be routed
behind accelerator pedal, brake pedal, clutch pedal,
parking brake or associated linkage.
SPREADER
CONTROLLER
MOTOR
CAB GROUND
CAUTION
4
