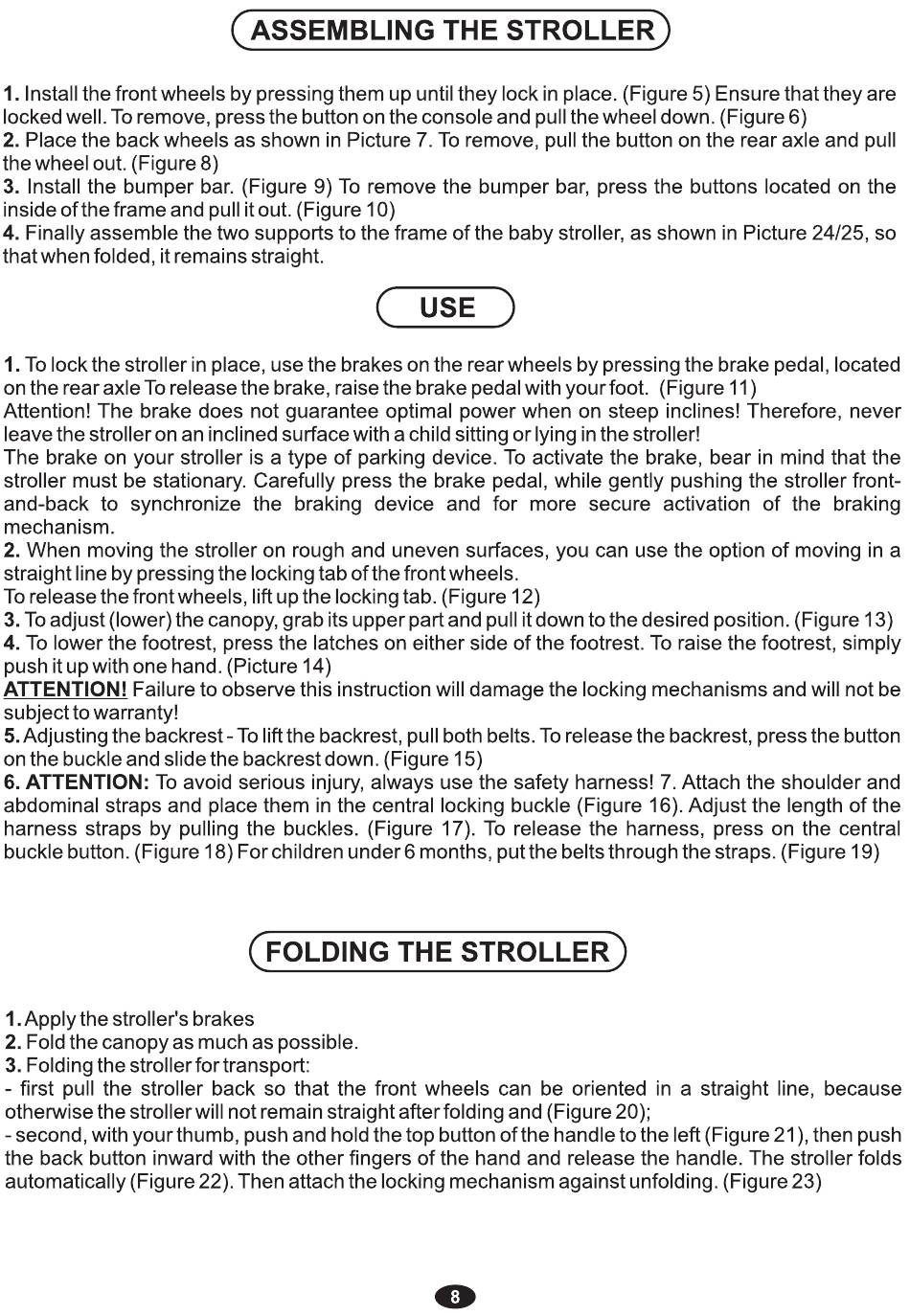

Lorelli MINORI Gebrauchsanweisung Seite 8

I. Install the front wheels by pressing them up until they lock in place. (Figure 5) Ensure that they are
locked well. To remove, press the button on the console and pull the wheel down. (Figure 6)
2. Place the back wheels as shown in Picture 7. To remove, pull the button on the rear axle and pull
the wheel out. (Figure 8)
3. Install the bumper bar. (Figure 9) To remove the bumper bar, press the buttons located on the
inside of the frame and pull it out. (Figure 10)
4. Finally assemble the two supports to the frame of the baby stroller, as shown in Picture 24/25, so
that when folded, it remains straight.
I. To lock the stroller in place, use the brakes on the rear wheels by pressing the brake pedal, located
on the rear axle To release the brake, raise the brake pedal with your foot. (Figure II)
Attention! The brake does not guarantee optimal power when on steep inclines! Therefore, never
leave the stroller on an inclined surface with a child sitting or lying in the stroller!
The brake on your stroller is a type of parking device. To activate the brake, bear in mind that the
stroller must be stationary. Carefully press the brake pedal, while gently pushing the stroller front-
and-back to synchronize
mechanism.
2. When moving the stroller on rough and uneven surfaces, you can use the option of moving in a
straight line by pressing the locking tab of the front wheels.
To release the front wheels, lift up the locking tab. (Figure 12)
3. To adjust (lower) the canopy, grab its upper part and pull it down to the desired position. (Figure 13)
4. To lower the footrest, press the latches on either side of the footrest. To raise the footrest, simply
push it up with one hand. (Picture 14)
ATTENTION! Failure to observe this instruction will damage the locking mechanisms and will not be
subject to warranty!
5. Adjusting the backrest - To lift the backrest, pull both belts. To release the backrest, press the button
on the buckle and slide the backrest down. (Figure 15)
6. ATTENTION: To avoid serious injury, always use the safety harness! 7. Attach the shoulder and
abdominal straps and place them in the central locking buckle (Figure 16). Adjust the length of the
harness straps by pulling the buckles. (Figure 17). To release the harness, press on the central
buckle button. (Figure 18) For children under 6 months, put the belts through the straps. (Figure 19)
I. Apply the stroller's brakes
2. Fold the canopy as much as possible.
3. Folding the stroller for transport:
- first pull the stroller back so that the front wheels can be oriented in a straight line, because
otherwise the stroller will not remain straight after folding and (Figure 20);
- second, with your thumb, push and hold the top button of the handle to the left (Figure 21 ), then push
the back button inward with the other fingers of the hand and release the handle. The stroller folds
automatically (Figure 22). Then attach the locking mechanism against unfolding. (Figure 23)
ASSEMBLING
USE
the braking device and for more secure activation
FOLDING THE
THE STROLLER
STROLLER
of the braking
