Installation
• Observe the valid regulations during installation (touch protection) and the safety notices in
these operating instructions.
• The assembly group must be installed in such a way that accidental contact is prevented.

Care and cleaning

Prior to opening the casing, always pull the power plug or turn the assembly group's
power off.
• The relay circuit board is maintenance-free. However, check the connection leads for
damage from time to time.
• Only an authorised expert may perform repairs.
• Do not use any aggressive cleaning agents, rubbing alcohol or other chemical solutions as
they can cause damage to the housing and malfunctioning.
• Clean the product with a dry, fiber-free cloth.
• Do not immerse the product in water.
Disposal
Electronic devices are recyclable waste and must not be disposed of in the
household waste. At the end of its service life, dispose of the product according to
the relevant statutory regulations.
You thus fulfil your statutory obligations and contribute to the protection of the
environment.

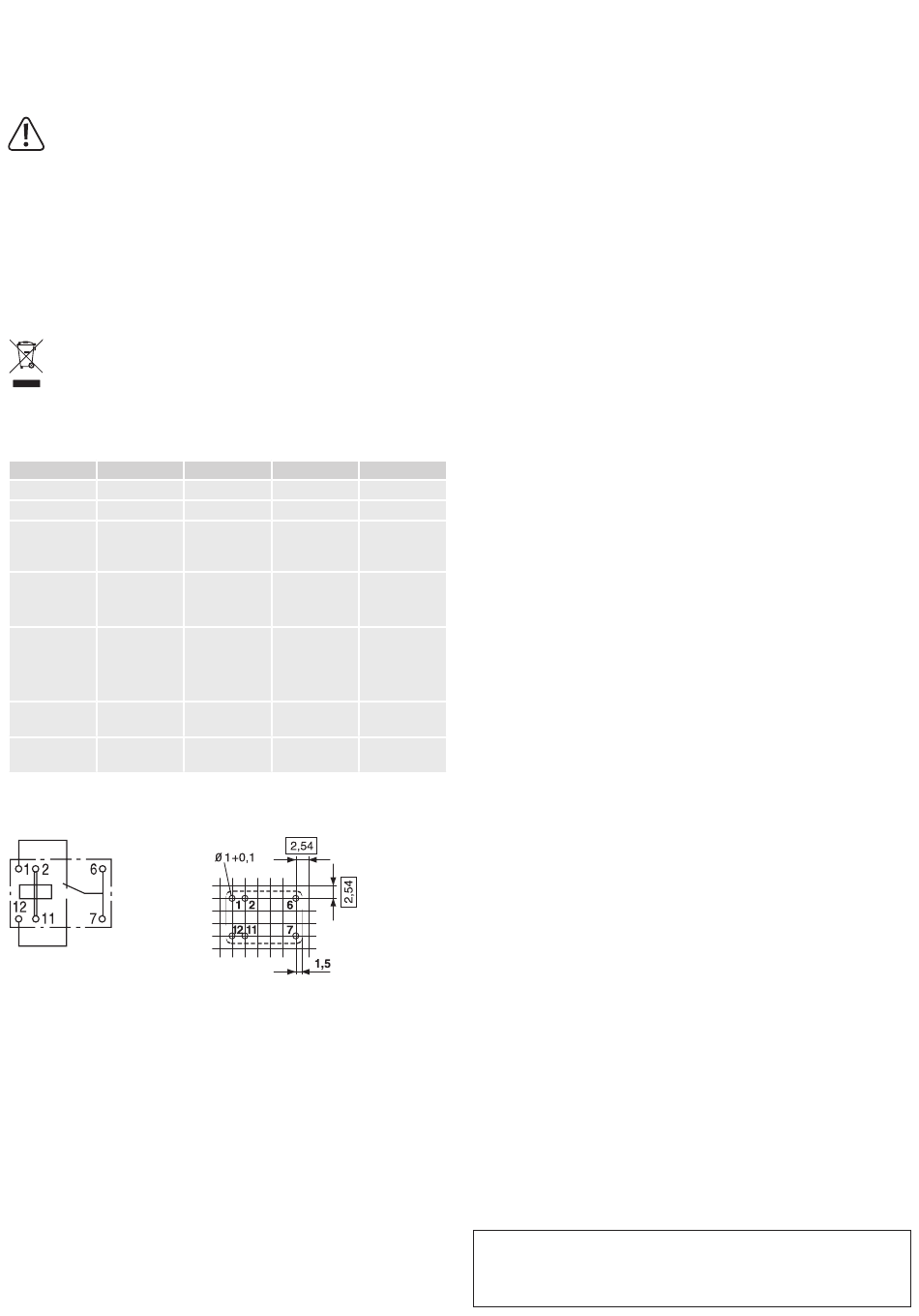

Technical data

Item no. 503322
Model without relay
Nominal voltage 4 -30 V/DC
Switching
according to
capacity (Ohm
relay
resistive load)
according to
Switching
relay
current
max. 3 A
according to
relay
Switching
voltage max. 125 V/DC
max. 125 V/AC
according to
Contact type
relay
Dimensions
20 x 17.5 x 72 mm 20 x 17.5 x 72 mm 20 x 17.5 x 72 mm 20 x 17.5 x 72 mm
(W x H x D)
Relay contact placement
1570052 1566300
with relay with relay
5 V/DC 12 V/DC
max. 50 W, max. 50 W,
110 VA 110 VA
max. 1 A max. 1 A
max. 60 V/DC max. 60 V/DC
max. 125 V/AC max. 125 V/AC
1 directional 1 directional
contact contact
Relay print image
1566301
with relay
24 V/DC
max. 50 W,
110 VA
max. 1 A
max. 60 V/DC
max. 125 V/AC
1 directional
contact
