Installing Pcie Expansion Cards - UGREEN NASync DXP6800 Pro Benutzerhandbuch

Installing PCIe Expansion Card

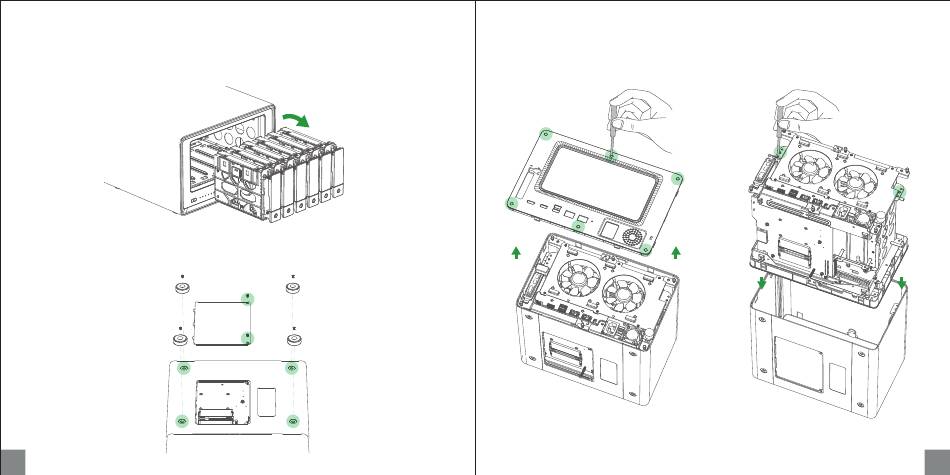

1. Power off NAS and disconnect it from power supply, then remove all the hard drive trays from the
drive bays.
2. Turn NAS over, remove the screws and bottom panel, then unscrew the fixing screws on the corners
of the bottom and remove the feet.
13
3. Turn to the back of the device, then remove the
screws that secure the back ventilation cover.
4. Remove the internal fixing screws that secure
the outer shell to the internal frame, then lift
the shell off the device.
14
